    WF70-800480D2D#0PW7-FC

    TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 350cd/m², Wide View Angle (IPS), Wide Temperature, Frame, Capacitive Touch Panel I2C Interface (GG, ILI2130)
    Manufacturer: Winstar
    SKU: WF70-800480D2D#0PW7-FC

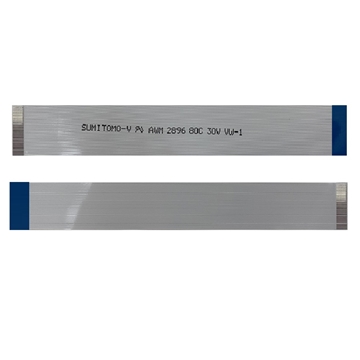

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €70.40
    €63.30
    €59.50

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €70.40 excl tax
    i h

    DESCRIPTION

    WF70-800480D2D#0PW7-FC is a cell product of 7" color TFT-LCD (Thin Film Transistor Liquid Crystal Display), which is 16:9 aspect ratio panels foe the high end car application.
    The 7" screen produces a high resolution image that is composed of 384,000 (800x480) pixel elements in a stripe arrangement.



    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    1. LCM PIN Definition

    PinSymbolFunction
    1 GND Power Ground
    2 GND Power Ground
    3 NC Not Connect
    4 Vcc Power Supply for Digital Circuit
    5 Vcc Power Supply for Digital Circuit
    6 Vcc Power Supply for Digital Circuit
    7 Vcc Power Supply for Digital Circuit
    8 NC Not Connect
    9 DE Data Enable
    10 GND Power Ground
    11 GND Power Ground
    12 GND Power Ground
    13 B5 Blue Data 5 (MSB)
    14 B4 Blue Data 4
    15 B3 Blue Data 3
    16 GND Power Ground
    17 B2 Blue Data 2
    18 B1 Blue Data 1
    19 B0 Blue Data 0 (LSB)
    20 GND Power Ground
    21 G5 Green Data 5 (MSB)
    22 G4 Green Data 4
    23 G3 Green Data 3
    24 GND Power Ground
    25 G2 Green Data 2
    26 G1 Green Data 1
    27 G0 Green Data 0(LSB)
    28 GND Power Ground
    29 R5 Red Data 5 (MSB)
    30 R4 Red Data 4
    31 R3 Red Data 3
    32 GND Power Ground
    33 R2 Red Data 2
    34 R1 Red Data 1
    35 R0 Red Data 0(LSB)
    36 GND Power Ground
    37 GND Power Ground
    38 DCLK Clock Signals ; Latch Data at the Falling Edge (CLK)
    39 GND Power Ground
    40 GND Power Ground



    2. Backlight Driving Part

    Pin No.SymbolDescription
    1 VLED+ Red, LED_ Anode
    2 VLED- White, LED_ Cathode



    3. PCAP PIN Definition

    PinSymbolFunction
    1 VSS Ground for analog circuit
    2 VDDT Power Supply : +3.3V
    3 SCL I2C clock input
    4 NC No connect
    5 SDA I2C data input and output
    6 NC No connect
    7 /RST External Reset, Low is active
    8 NC No connect
    9 /INT External interrupt to the host
    10 VSS Ground for analog circuit




    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800 × RGB × 480(TFT) dots
    Module dimension 181.2(W) × 105.4(H) × 9.8 (MAX)(D) mm
    Active area 152.4 × 91.44 mm
    Pixel pitch 0.1905 × 0.1905 mm
    LCD type TFT, Normally Black, Transmissive
    View Angle 85/85/85/85
    TFT IC RM53052+RM57452 or Equivalent
    Aspect Ratio 16:9
    Backlight Type LED, Normally White
    TFT Interface 18-bit RGB
    PCAP Driver IC ILI2130 or equivalent
    PCAP Interface I2C
    PCAP FW Version 0x07.0x00.0x00.0x00.0x70.0x44.0x0A.0x02
    PCAP Resolution 16384*16384
    Touch Panel With CTP
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LCM Vcc - 3.0 3.3 3.6 V
    Supply Current For LCM Icc Black Pattern - 85 130 mA
    Supply CTP VDDT   3.1 3.3 3.5 V
    ICTP   - 65 100 mA



    LED Driving Conditions

    ParameterSymbolMin.Typ.Max.Unit
    LED current - - 180 - mA
    LED voltage VLED+ 8.4 9.0 9.6 V
    LED Life Time - 50,000 - - Hr
    Products specifications
    Size 7"
    Resolution 800x480
    Active Area (mm) 152.40x91.44
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Data Connection ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller ILI2130
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
