WF70-800480D2D#0SPW7-FC

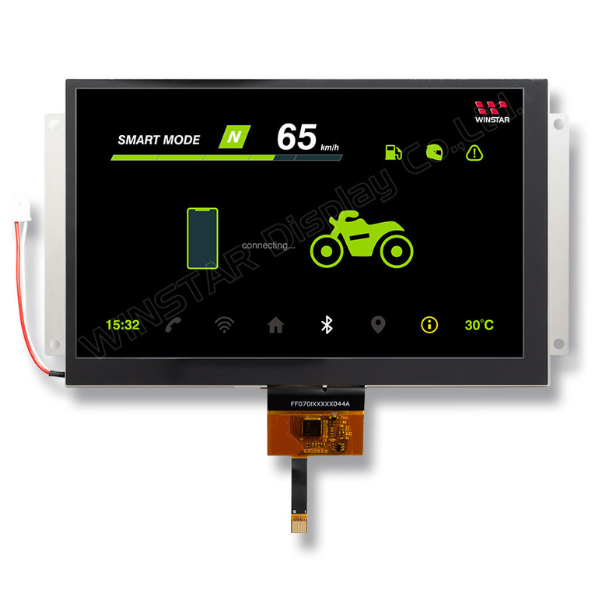

Picture of WF70-800480D2D#0SPW7-FC Picture of WF70-800480D2D#0SPW7-FC
TFT 7" 800x480 LCD Panel, Interface RGB (40pin), High Brightness 1000cd/m², Wide View Angle (IPS), Wide Temperature, Frame, Capacitive Touch Panel I2C Interface (GG, ILI2130)

Description



WF70-800480D2D#0SPW7-FC is a sunlight-viewable 7-inch IPS TFT LCD display with a projected capacitive touch panel, featuring a resolution of 800x480 pixels and an aspect ratio of 15:9. It boasts a high brightness level of 1000 cd/m² and a contrast ratio (typical) of 1500:1. Utilizing IPS display technology, it offers wide viewing angles of 85 degrees in all directions (left, right, up, and down).

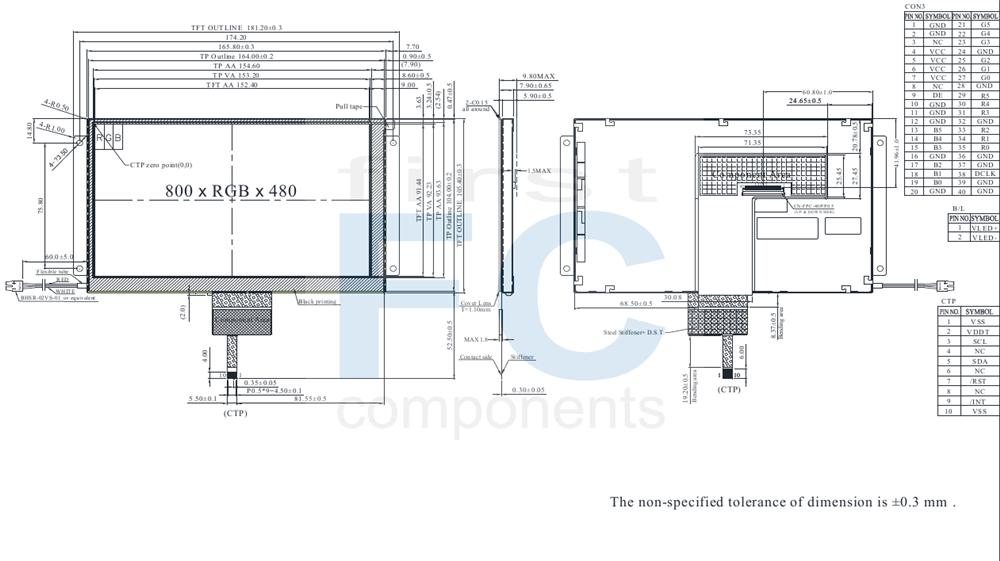

DRAWING





SPECIFICATIONS



Interface Pin Function

1. LCM PIN Definition

PinSymbolFunction
1 GND Power Ground
2 GND Power Ground
3 NC Not Connect
4 Vcc Power Supply for Digital Circuit
5 Vcc Power Supply for Digital Circuit
6 Vcc Power Supply for Digital Circuit
7 Vcc Power Supply for Digital Circuit
8 NC Not Connect
9 DE Data Enable
10 GND Power Ground
11 GND Power Ground
12 GND Power Ground
13 B5 Blue Data 5 (MSB)
14 B4 Blue Data 4
15 B3 Blue Data 3
16 GND Power Ground
17 B2 Blue Data 2
18 B1 Blue Data 1
19 B0 Blue Data 0 (LSB)
20 GND Power Ground
21 G5 Green Data 5 (MSB)
22 G4 Green Data 4
23 G3 Green Data 3
24 GND Power Ground
25 G2 Green Data 2
26 G1 Green Data 1
27 G0 Green Data 0(LSB)
28 GND Power Ground
29 R5 Red Data 5 (MSB)
30 R4 Red Data 4
31 R3 Red Data 3
32 GND Power Ground
33 R2 Red Data 2
34 R1 Red Data 1
35 R0 Red Data 0(LSB)
36 GND Power Ground
37 GND Power Ground
38 DCLK Clock Signals ; Latch Data at the Falling Edge (CLK)
39 GND Power Ground
40 GND Power Ground



2. Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- White, LED_ Cathode



3. PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit




General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 181.2(W) × 105.4(H) × 9.8 (MAX)(D) mm
Active area 152.4 × 91.44 mm
Pixel pitch 0.1905 × 0.1905 mm
LCD type TFT, Normally Black, Transmissive
View Angle 85/85/85/85
TFT IC RM53010+RM57410
Aspect Ratio 15:9
Backlight Type LED, Normally White
TFT Interface 18-bit RGB
PCAP Driver IC ILI2130
PCAP Interface I2C
PCAP FW Version 0x07.0x00.0x00.0x00.0x70.0x44.0x0A.0x02
PCAP Resolution 16384*16384
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM Vcc － 2.9 3.3 3.6 V
Supply Current For LCM Icc Black Pattern － 85 130 mA
Supply CTP VDDT   3.1 3.3 3.5 V
ICTP   － 65 100 mA



LED Driving Conditions

ParameterSymbolMin.Typ.Max.Unit
LED current － － 110 － mA
LED voltage VLED+ 22.4 24.0 25.6 V
LED Life Time － 50,000 － － Hr
SKU: WF70-800480D2D#0SPW7-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€74.10
€66.70
€55.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€74.10 excl tax
