WF70-800480D2D#0SP5B-FC

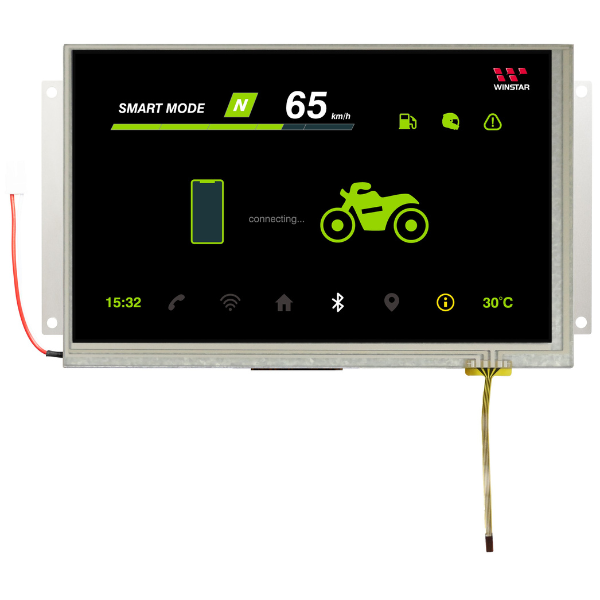

Picture of WF70-800480D2D#0SP5B-FC Picture of WF70-800480D2D#0SP5B-FC
TFT 7" 800x480 LCD Panel, Interface RGB (40pin), High Brightness 850cd/m², Wide View Angle (IPS), Frame, Resistive Touch Panel (Enanched Film-Glass structure)

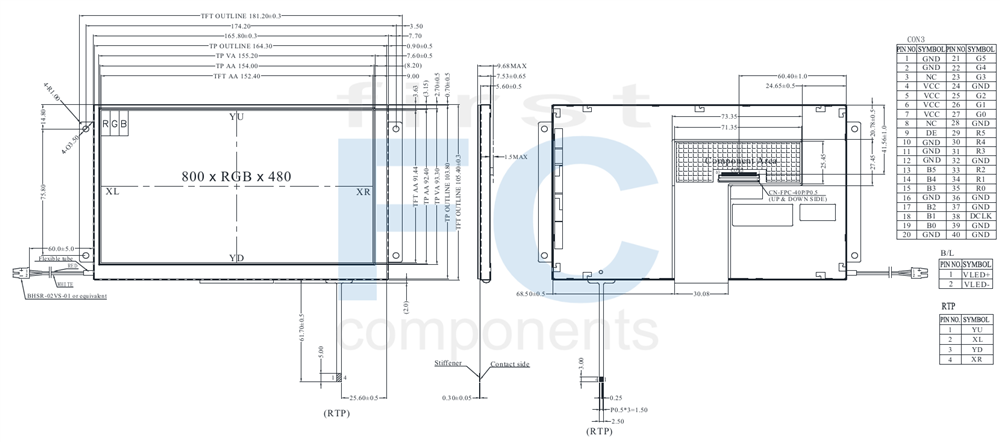

DRAWING



SPECIFICATIONS

Interface Pin Function

LCM PIN Definition

Pin No.SymbolDescription
1 GND Power Ground
2 GND Power Ground
3 NC Not Connect
4 Vcc Power Supply for Digital Circuit
5 Vcc Power Supply for Digital Circuit
6 Vcc Power Supply for Digital Circuit
7 Vcc Power Supply for Digital Circuit
8 NC Not Connect
9 DE Data Enable
10 GND Power Ground
11 GND Power Ground
12 GND Power Ground
13 B5 Blue data 5 (MSB)
14 B4 Blue Data 4
15 B3 Blue Data 3
16 GND Power Ground
17 B2 Blue Data 2
18 B1 Blue Data 1
19 B0 Blue Data 0 (LSB)
20 GND Power Ground
21 G5 Green Data 5 (MSB)
22 G4 Green Data 4
23 G3 Green Data 3
24 GND Power Ground
25 G2 Green Data 2
26 G1 Green Data 1
27 G0 Green Data 0 (LSB)
28 GND Power Ground
29 R5 Red Data 5 (MSB)
30 R4 Red Data 4
31 R3 Red Data 3
32 GND Power Ground
33 R2 Red Data 2
34 R1 Red Data 1
35 R0 Red Data 0 (LSB)
36 GND Power Ground
37 GND Power Ground
38 DCLK Clock Signals; Latch Data at the Falling Edge (CLK)
39 GND Power Ground
40 GND Power Ground



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800xRGBx480 (TFT) dots
Module dimension 181.2(W)x105.4(H)x9.68(MX)(D) mm
Active area 152.4x91.44 mm
Pixel pitch 0.1905x0.1905 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT IC RM53052+RM57452 or Equivalent
Aspect Ratio 16:9
Backlight Type LED, Normally White
TFT Interface 18-bit RGB
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC Black Pattern - 85 130 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 110 - mA
LED voltage VLED+ 22.4 24.0 25.6 V
LED Life Time - 50,000 - - Hr
SKU: WF70-800480D2D#0SP5B-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€59.70
€53.80
€45.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€59.70 excl tax

DRAWING



SPECIFICATIONS

Interface Pin Function

LCM PIN Definition

Pin No.SymbolDescription
1 GND Power Ground
2 GND Power Ground
3 NC Not Connect
4 Vcc Power Supply for Digital Circuit
5 Vcc Power Supply for Digital Circuit
6 Vcc Power Supply for Digital Circuit
7 Vcc Power Supply for Digital Circuit
8 NC Not Connect
9 DE Data Enable
10 GND Power Ground
11 GND Power Ground
12 GND Power Ground
13 B5 Blue data 5 (MSB)
14 B4 Blue Data 4
15 B3 Blue Data 3
16 GND Power Ground
17 B2 Blue Data 2
18 B1 Blue Data 1
19 B0 Blue Data 0 (LSB)
20 GND Power Ground
21 G5 Green Data 5 (MSB)
22 G4 Green Data 4
23 G3 Green Data 3
24 GND Power Ground
25 G2 Green Data 2
26 G1 Green Data 1
27 G0 Green Data 0 (LSB)
28 GND Power Ground
29 R5 Red Data 5 (MSB)
30 R4 Red Data 4
31 R3 Red Data 3
32 GND Power Ground
33 R2 Red Data 2
34 R1 Red Data 1
35 R0 Red Data 0 (LSB)
36 GND Power Ground
37 GND Power Ground
38 DCLK Clock Signals; Latch Data at the Falling Edge (CLK)
39 GND Power Ground
40 GND Power Ground



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800xRGBx480 (TFT) dots
Module dimension 181.2(W)x105.4(H)x9.68(MX)(D) mm
Active area 152.4x91.44 mm
Pixel pitch 0.1905x0.1905 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT IC RM53052+RM57452 or Equivalent
Aspect Ratio 16:9
Backlight Type LED, Normally White
TFT Interface 18-bit RGB
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC Black Pattern - 85 130 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 110 - mA
LED voltage VLED+ 22.4 24.0 25.6 V
LED Life Time - 50,000 - - Hr
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
