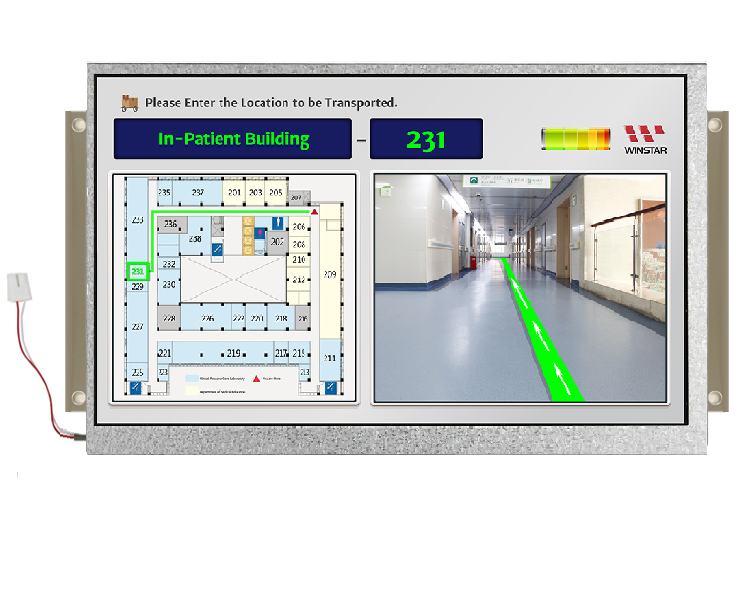

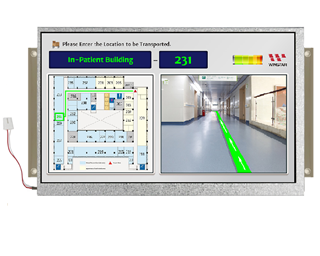

WF70-800480HD#004-FC

TFT 7'' 800x480, LCD Module, Interface RGB (40pin), 460cd/m², Square pixels, Frame, No touch

NOT RECOMMENDED FOR NEW PROJECTS

Innolux 7'' 800x480 Panel (LCT0007R0***) out of production. Please see the new version WF70-800480A6D#004-FC family in the 'related product' section below.

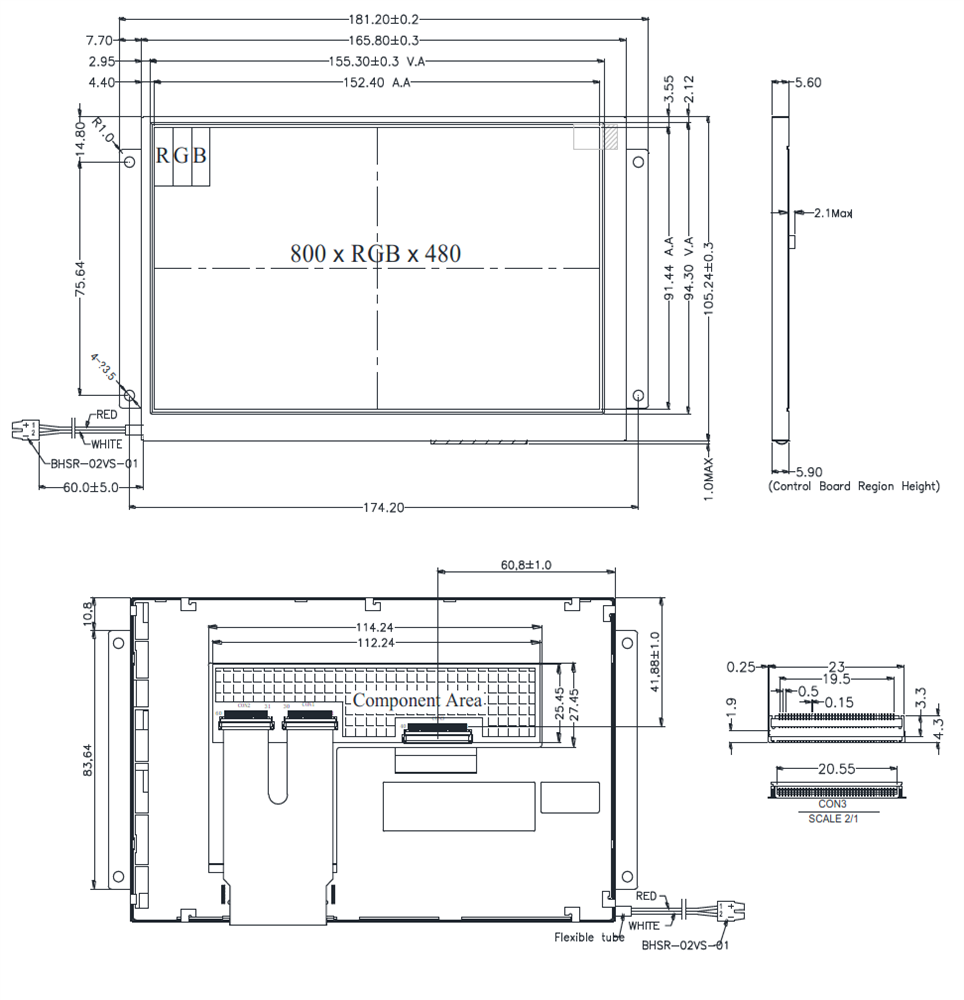

DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunctionPinSymbolFunction
1~2 GND Power Ground 23 G3 Green Data 3
3 NC Not Connect 24 GND Power Ground
4~7 Vcc Power Supply for Digital Circuit 25 G2 Green Data 2
8 NC Not Connect 26 G1 Green Data 1
9 DE Data Enable 27 G0 Green Data 0(LSB)
10~12 GND Power Ground 28 GND Power Ground
13 B5 Blue Data 5 (MSB) 29 R5 Red Data 5 (MSB)
14 B4 Blue Data 4 30 R4 Red Data 4
15 B3 Blue Data 3 31 R3 Red Data 3
16 GND Power Ground 32 GND Power Ground
17 B2 Blue Data 2 33 R2 Red Data 2
18 B1 Blue Data 1 34 R1 Red Data 1
19 B0 Blue Data 0 (LSB) 35 R0 Red Data 0(LSB)
20 GND Power Ground 36~37 GND Power Ground
21 G5 Green Data 5 (MSB) 38 DCLK Clock Signals ; Latch Data at the Falling Edge
22 G4 Green Data 4 39~40 GND Power Ground



Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- White, LED_ Cathode



General Specifications

ItemDimensionUnit
Size 7 inch TFT LCD
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 181.20(W) × 105.24(H) × 5.2(D) mm
Active area 152.4 × 91.44 mm
Dot pitch 0.0635 × 0.1905 mm
LCD type TFT, Normally White, Transmissive
TFT Interface 18-bit RGB
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics


Absolute Maximum Ratings (GND=0V)
ItemSymbolMinTypMaxUnit
Power Voltage Vcc -0.3 - 6 V
Input Signal Voltage Vi -0.3 - Vcc+0.3 V
Recommended Operation condition (GND=0V,Ta=25℃)
ItemSymbolMinTypMaxUnit
Power Supply Voltage Vcc 3.0 3.3 3.6 V
Power Supply Current Icc - 200 260 mA
Input logic Voltage High Level VIH 0.7Vcc - Vcc V
Low Level VIL 0 - 0.3Vcc


SKU: WF70-800480HD#004-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€55.30
€48.80
€43.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€55.30 excl tax

NOT RECOMMENDED FOR NEW PROJECTS

Innolux 7'' 800x480 Panel (LCT0007R0***) out of production. Please see the new version WF70-800480A6D#004-FC family in the 'related product' section below.





DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunctionPinSymbolFunction
1~2 GND Power Ground 23 G3 Green Data 3
3 NC Not Connect 24 GND Power Ground
4~7 Vcc Power Supply for Digital Circuit 25 G2 Green Data 2
8 NC Not Connect 26 G1 Green Data 1
9 DE Data Enable 27 G0 Green Data 0(LSB)
10~12 GND Power Ground 28 GND Power Ground
13 B5 Blue Data 5 (MSB) 29 R5 Red Data 5 (MSB)
14 B4 Blue Data 4 30 R4 Red Data 4
15 B3 Blue Data 3 31 R3 Red Data 3
16 GND Power Ground 32 GND Power Ground
17 B2 Blue Data 2 33 R2 Red Data 2
18 B1 Blue Data 1 34 R1 Red Data 1
19 B0 Blue Data 0 (LSB) 35 R0 Red Data 0(LSB)
20 GND Power Ground 36~37 GND Power Ground
21 G5 Green Data 5 (MSB) 38 DCLK Clock Signals ; Latch Data at the Falling Edge
22 G4 Green Data 4 39~40 GND Power Ground



Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- White, LED_ Cathode



General Specifications

ItemDimensionUnit
Size 7 inch TFT LCD
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 181.20(W) × 105.24(H) × 5.2(D) mm
Active area 152.4 × 91.44 mm
Dot pitch 0.0635 × 0.1905 mm
LCD type TFT, Normally White, Transmissive
TFT Interface 18-bit RGB
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics


Absolute Maximum Ratings (GND=0V)
ItemSymbolMinTypMaxUnit
Power Voltage Vcc -0.3 - 6 V
Input Signal Voltage Vi -0.3 - Vcc+0.3 V
Recommended Operation condition (GND=0V,Ta=25℃)
ItemSymbolMinTypMaxUnit
Power Supply Voltage Vcc 3.0 3.3 3.6 V
Power Supply Current Icc - 200 260 mA
Input logic Voltage High Level VIH 0.7Vcc - Vcc V
Low Level VIL 0 - 0.3Vcc


Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
