WFN0500DA4#0PW2-FC

Picture of WFN0500DA4#0PW2-FC Picture of WFN0500DA4#0PW2-FC
TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, GT911 IC)

DESCRIPTION

WFN0500DA4#0PW2-FC is a 5-inch IPS TFT LCD display module featuring an 800x480 pixel resolution, a 24-bit RGB interface, and a projected capacitive touch panel with 5-point touch support. The display is driven by the FL58202DA driver IC, while the PCAP uses the GT911 controller with an I2C interface.

The module measures 147.0 x 104.0 x 4.88 mm, with an active area of 108.0 x 64.8 mm. It features a Normally Black, transmissive TFT panel with an IPS wide viewing angle.

With a typical brightness of 400 cd/m² and an operating temperature range of -30℃ to +80℃, this TFT LCD display is suitable for industrial control systems, access control systems, medical equipment, smart home devices, handheld devices, and other embedded HMI applications.



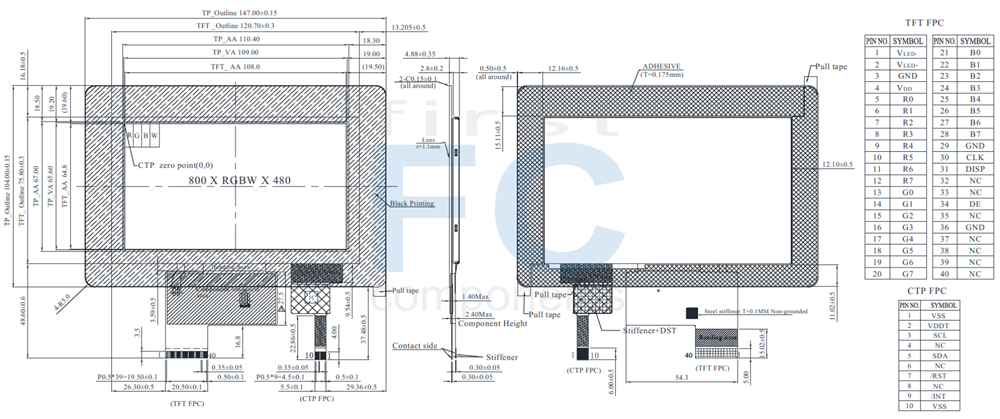

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 147.00 (W) ×104.00 (H) × 4.88 mm
Active area 108(W) × 64.8 (H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 5:3
Driver　IC     FL58202DA or equivalent
Interface 24 bit R.G.B
Backlight Type LED, Normally White
CTP IC GT911 or equivalent
CTP Interface I2C
CTP FW Version 65
CTP Resolution 800*480
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions


Item		SymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 3.0 3.3 3.6 V
Current for Driver(Black) IDD － 82 123 mA
Input logic high voltage VIH 0.7 VDD － VDD V
Input logic low voltage VIL 0 － 0.3 VDD
Supply CTP VDDT 2.8 － 3.3 V
IDDT － 14.0 21.0 mA


Backlight Driving Conditions


Item		SymbolValuesUnit
Min.Typ.Max.
Voltage for LED backlight VLED 12.5 14.0 15.5 V
Current for LED backlight ILED － 30 － mA
LED life time － 50,000 － － Hr



Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.

Pin NoSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock (DCLK)
31 DISP Display on/off
32 NC No connection
33 NC No connection
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection


CTP PIN Definition

Pin NoSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit

SKU: WFN0500DA4#0PW2-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€58.50
€52.60
€49.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€58.50 excl tax

DESCRIPTION

WFN0500DA4#0PW2-FC is a 5-inch IPS TFT LCD display module featuring an 800x480 pixel resolution, a 24-bit RGB interface, and a projected capacitive touch panel with 5-point touch support. The display is driven by the FL58202DA driver IC, while the PCAP uses the GT911 controller with an I2C interface.

The module measures 147.0 x 104.0 x 4.88 mm, with an active area of 108.0 x 64.8 mm. It features a Normally Black, transmissive TFT panel with an IPS wide viewing angle.

With a typical brightness of 400 cd/m² and an operating temperature range of -30℃ to +80℃, this TFT LCD display is suitable for industrial control systems, access control systems, medical equipment, smart home devices, handheld devices, and other embedded HMI applications.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 147.00 (W) ×104.00 (H) × 4.88 mm
Active area 108(W) × 64.8 (H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 5:3
Driver　IC     FL58202DA or equivalent
Interface 24 bit R.G.B
Backlight Type LED, Normally White
CTP IC GT911 or equivalent
CTP Interface I2C
CTP FW Version 65
CTP Resolution 800*480
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions


Item		SymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 3.0 3.3 3.6 V
Current for Driver(Black) IDD － 82 123 mA
Input logic high voltage VIH 0.7 VDD － VDD V
Input logic low voltage VIL 0 － 0.3 VDD
Supply CTP VDDT 2.8 － 3.3 V
IDDT － 14.0 21.0 mA


Backlight Driving Conditions


Item		SymbolValuesUnit
Min.Typ.Max.
Voltage for LED backlight VLED 12.5 14.0 15.5 V
Current for LED backlight ILED － 30 － mA
LED life time － 50,000 － － Hr



Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.

Pin NoSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock (DCLK)
31 DISP Display on/off
32 NC No connection
33 NC No connection
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection


CTP PIN Definition

Pin NoSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit

Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
