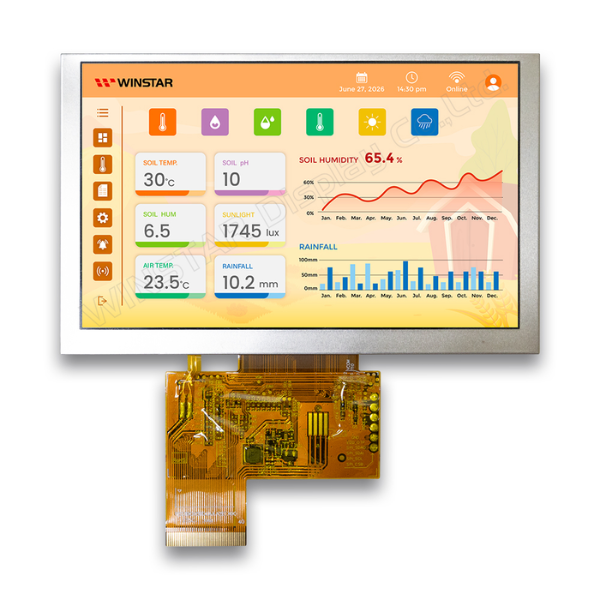

WFN0500DA4#0SPW0-FC is a 5-inch high brightness TFT LCD display module featuring an 800×480 pixel resolution, an IPS wide viewing angle, and a 24-bit RGB interface. Driven by the FL58202DA controller IC (or equivalent), the module is designed without a touch panel.

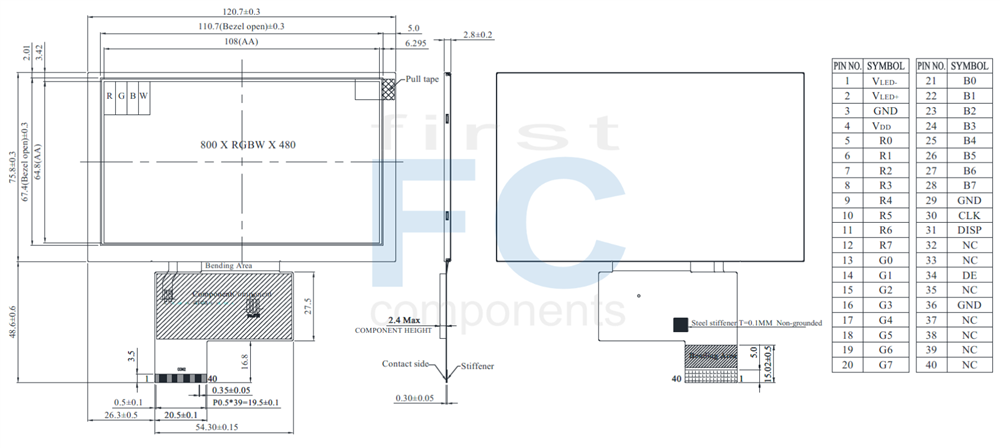

The module measures 120.7 × 75.8 × 2.8 mm, with an active area of 108.0 × 64.8 mm. It features a Normally Black, transmissive TFT panel with an anti-glare surface treatment.
Combining a typical brightness of 1000 cd/m² with an operating temperature range of -30℃ to +80℃, this display is suitable for smart access control systems, industrial handheld devices, smart agriculture equipment, industrial control systems, outdoor terminals, and other embedded HMI applications.
