WFN1025LA2#0SPW15-FC

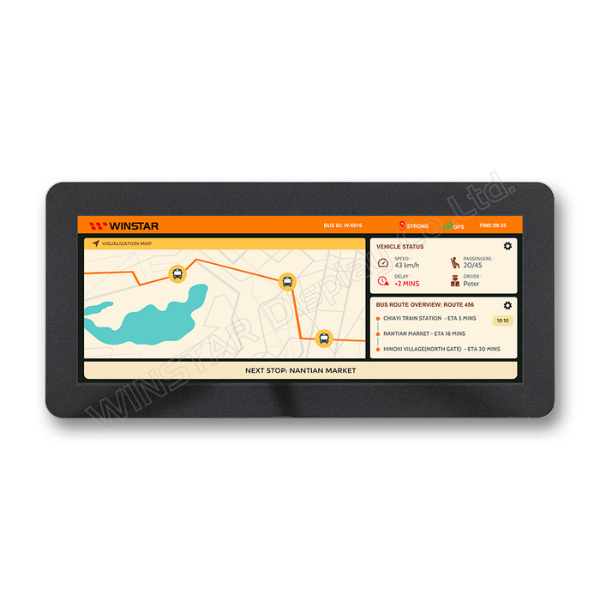

TFT 10.25" 1920x720, Bar Type, Interface LVDS (50 pins), High Brightness 800nits, Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, GT9271 IC, OCA Bonding)

DESCRIPTION

WFN1025LA2#0SPW15-FC is a 10.25-inch bar type TFT LCD display featuring a 1920x720 resolution, IPS technology, and a typical brightness of 800 cd/m². The module supports a 1-port LVDS interface (VESA), utilizes FL5896 and FL5101 driver ICs, and integrates a projected capacitive touch panel (PCAP) with optical bonding.

The PCAP touch panel supports 10-point multi-touch operation through an I²C interface. Optical bonding helps reduce internal reflections and improve display readability in bright ambient environments.

With an operating temperature range of -30°C to +85°C, this display is suitable for industrial control and automation equipment, transportation systems, logistics and warehouse interfaces, outdoor HMI applications, and other embedded systems.

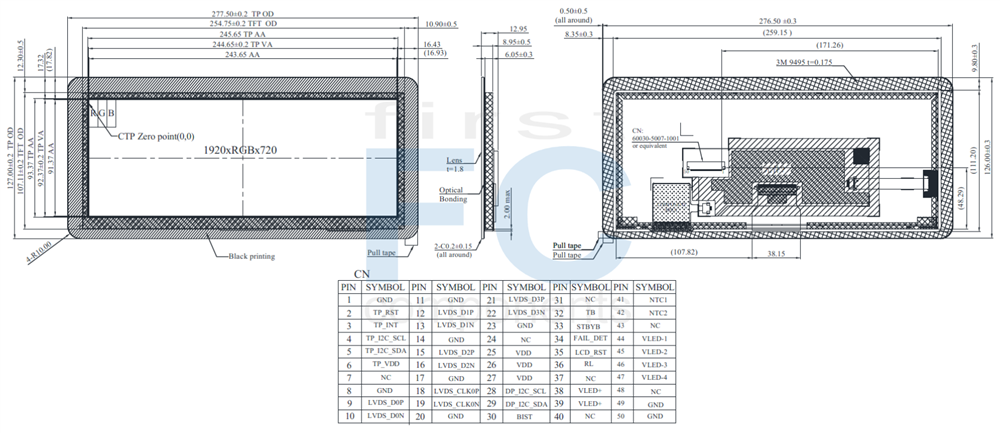

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 10.25 inch
Dot Matrix 1920 x RGB x 720 dots
Module dimension 277.5 x 127.0 x 12.95 mm
Active area 243.65 x 91.37 mm
Pixel Pitch 0.1269 x 0.1269 mm
LCD type TFT, Normally Black, Transmissive
View Angle 85/85/85/85
TFT Interface 1-port LVDS(VESA)
TFT Driver IC FL5896*1 & FL5101*2
Backlight Type LED ,Normally White
CTP IC GT9271 or equivalent
CTP Interface I2C
CTP FW Version 65
CTP Resolution 1920x720
Touch Panel Projected Capacitive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +85
Storage Temperature TST -40 +90



Electrical Characteristics

Operating conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD - 3.3 - V
Power current IDD - 333 500 mA
High Level Input Voltage VIH 0.7 VDD - VDD V
Low Level Input Voltage VIL 0 - 0.3 VDD V
Supply CTP TP_VDD 2.8 3.1 3.3 V
TP_IDD - 13.0 20.0 mA

LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current ILED - 360 - mA
LED voltage VLED+ 23.4 27.0 30.6 V
LED Life Time - 30,000 - - Hr



Interface Pin Function

1. LCM PIN Definition

FPC Connector is used for the module electronics interface.The recommended model is 60030-5007-1001 manufactured by XFE.
Pin. NoSymbolI/OFunction
1 GND P Ground
2 TP_RST - TP Reset pin
3 TP_INT - TP Interrupt
4 TP_I2C_SCL - TP High speed interface Clock differential signal input pins.
5 TP_I2C_SDA - TP serial data input/output bi-direction pin
6 TP_VDD - Power supply for CTP
7 NC - No connection
8 GND P Ground
9 LVDS_D0P I +LVDS Differential Data Input
10 LVDS_D0N I -LVDS Differential Data Input
11 GND P Ground
12 LVDS_D1P I +LVDS Differential Data Input
13 LVDS_D1N I -LVDS Differential Data Input
14 GND P Ground
15 LVDS_D2P I +LVDS Differential Data Input
16 LVDS_D2N I -LVDS Differential Data Input
17 GND P Ground
18 LVDS_CLK0P I +LVDS Differential Clock Input
19 LVDS_CLK0N I -LVDS Differential Clock Input
20 GND P Ground
21 LVDS_D3P I +LVDS Differential Data Input
22 LVDS_D3N I -LVDS Differential Data Input
23 GND P Ground
24 NC - No connection
25-27 VDD P Power supply
28 DP_I2C_SCL I Serial communication data input.
29 DP_I2C_SDA I Serial communication clock input.
30 BIST I Enable built-in self test (BIST) function BISTEN=H, BIST mode
BISTEN=L, Normal mode (Default)
31 NC - No connect.
32 TB I Vertical shift direction (Gate output) selection.TB function is the hardware setting “XOR”  with register setting when FCS=L.)
H:Forward,Top-Bottom (Default)
L:Reverse,Bottom-Top
33 STBYB I Standby mode.
STBYB=H : normal (Default),
STBYB=L: standby mode.
34 FAIL_DET O Fail detection signal output
Normal = H , Abnormal = L
35 LCD_RST I Global reset pin. Active low to enter reset state. Keep VDD during operation. Normally pull high.
36 RL I Horizontal shift direction (Source output) selection. H: Left - Right (Default);
L: Right - Left.
37 NC - No connection
38-39 LEDA P Power Supply For LED Backlight Anode Input
40 NC - No connection
41 NTC1 P NTC PIN
42 NTC2 P NTC PIN
43 NC - No connection
44 VLEDK1 P Power Supply For LED Backlight Cathode Input
45 VLEDK2 P Power Supply For LED Backlight Cathode Input
46 VLEDK3 P Power Supply For LED Backlight Cathode Input
47 VLEDK4 P Power Supply For LED Backlight Cathode Input
48 NC - No connection
49-50 GND P Ground
