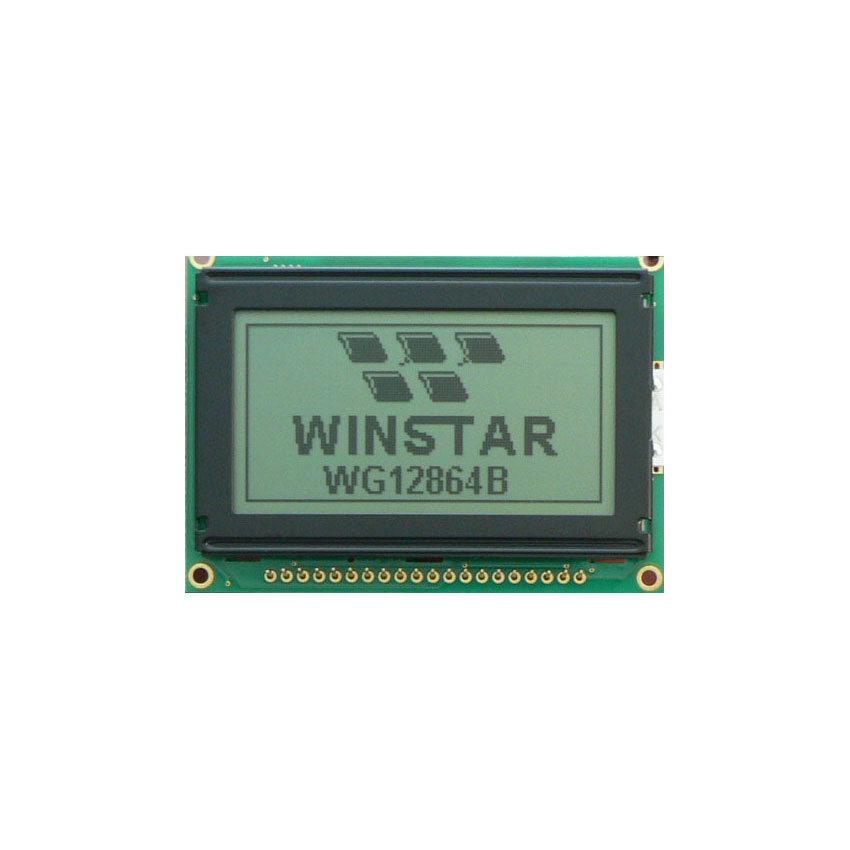

WG12864BP1-TFH-V#N

Graphic LCD 2.4'' 128x64, B/L white, FSTN white pos, COB, 3V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION

WG12864B is a mono 128x64 graphic LCD display, diagonal size 2.4 inch. WG12864BP1:+3.3V option. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  This WG12864B 128x64 LCD module is 5V power supply.   This 12864 Graphic LCD module is available for without backlight or with LED backlight options. WG12864B is available in various LCD panel colors including gray, yellow/green and blue LCD options. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

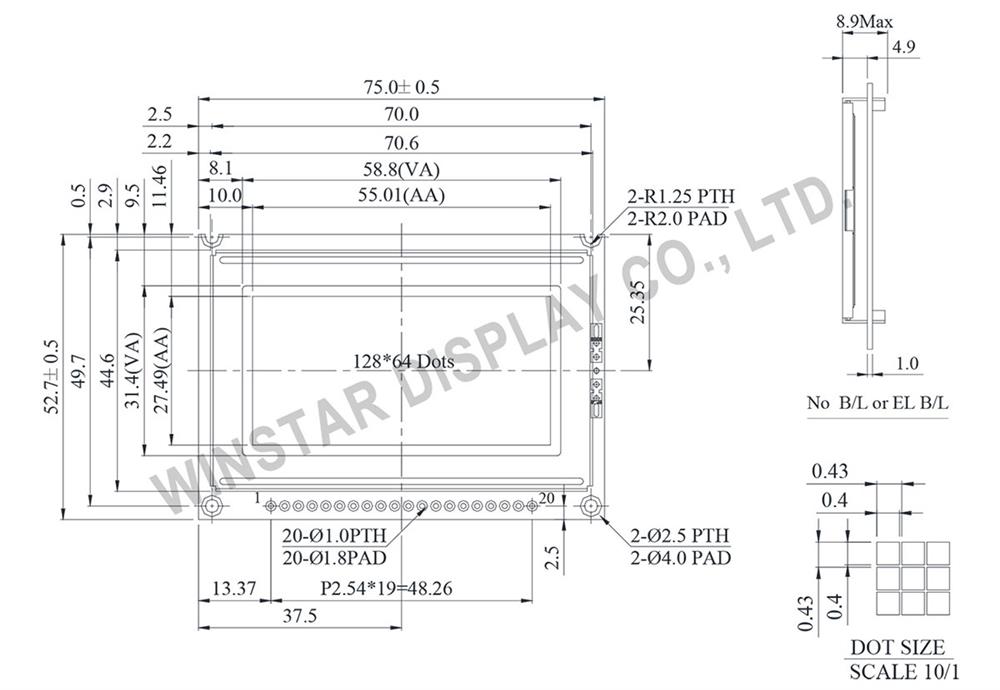

DRAWING

128x64 Graphic LCD Display, 128x64 LCD Module - WG12864B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4~11 DB0~DB7 Data bus line
12 CS1 Select Column 1~ Column 64
13 CS2 Select Column 65~ Column 128
14 /RST Controller reset signal, Active Low
15 R/W Read/Write select signal
16 D/I Data/ Instruction select signal
17 E Enable signal
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 75.0 × 52.7 mm
Viewing Area 58.8 × 31.4 mm
Mounting Hole 70.0 × 49.7 mm
Dot Pitch 0.43 × 0.43 mm
Dot Size 0.40 × 0.40 mm
SKU: WG12864BP1-TFH-V#N
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€16.90
€12.40
€10.00
€9.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€16.90 excl tax

DESCRIPTION

WG12864B is a mono 128x64 graphic LCD display, diagonal size 2.4 inch. WG12864BP1:+3.3V option. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  This WG12864B 128x64 LCD module is 5V power supply.   This 12864 Graphic LCD module is available for without backlight or with LED backlight options. WG12864B is available in various LCD panel colors including gray, yellow/green and blue LCD options. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

DRAWING

128x64 Graphic LCD Display, 128x64 LCD Module - WG12864B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4~11 DB0~DB7 Data bus line
12 CS1 Select Column 1~ Column 64
13 CS2 Select Column 65~ Column 128
14 /RST Controller reset signal, Active Low
15 R/W Read/Write select signal
16 D/I Data/ Instruction select signal
17 E Enable signal
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 75.0 × 52.7 mm
Viewing Area 58.8 × 31.4 mm
Mounting Hole 70.0 × 49.7 mm
Dot Pitch 0.43 × 0.43 mm
Dot Size 0.40 × 0.40 mm
Products specifications
Brand Winstar
Size 2.4"
Resolution 128x64
Active Area (mm) 55.01x27.49
Dot Size 0.40x0.40
B/L color, LCD type B/L white, FSTN white pos
Power supply 3V
Interface 6800
Built-in Controller NT7107, NT7108
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
