WG14432B-TFH-V#T

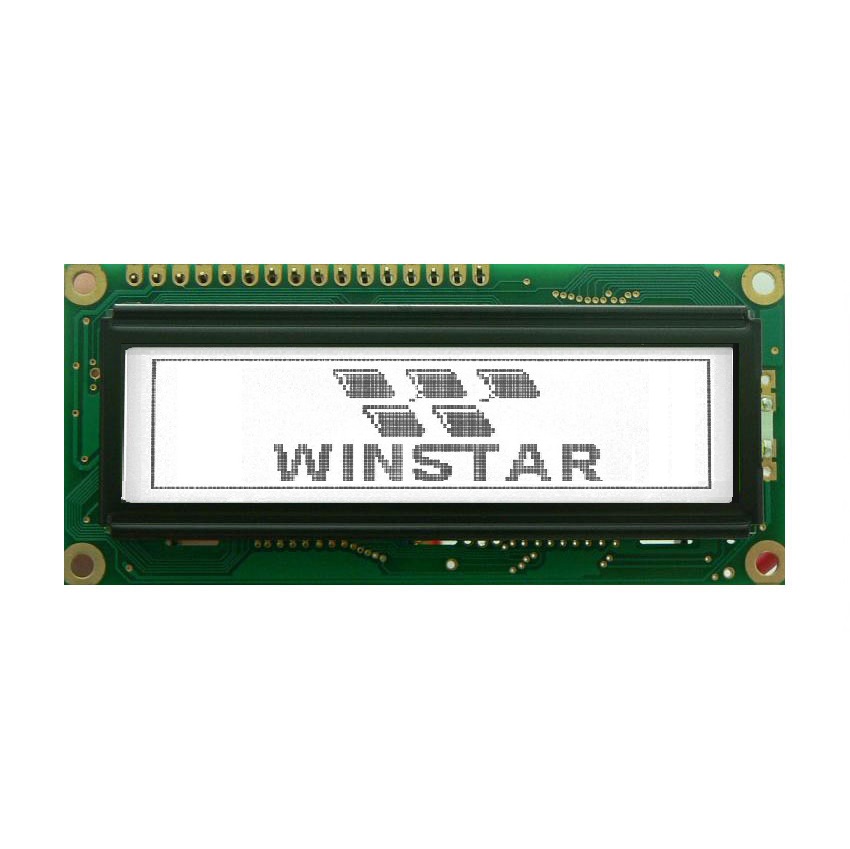

Picture of WG14432B-TFH-V#T Picture of WG14432B-TFH-V#T
Graphic LCD 2.4" 144x32, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800/SPI, 6 O'clock, VNEG



RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

WG14432B is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC.  WG14432B is having the same mechanical size as Character WH1602B.  This WG14432B module supports 8080 8-bit parallel and SPI interface; 5V power supply, also internal boost 3.3V optional.  This 144x32 graphic LCD display supports Traditional Chinese Font and Simplified Chinese Font.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


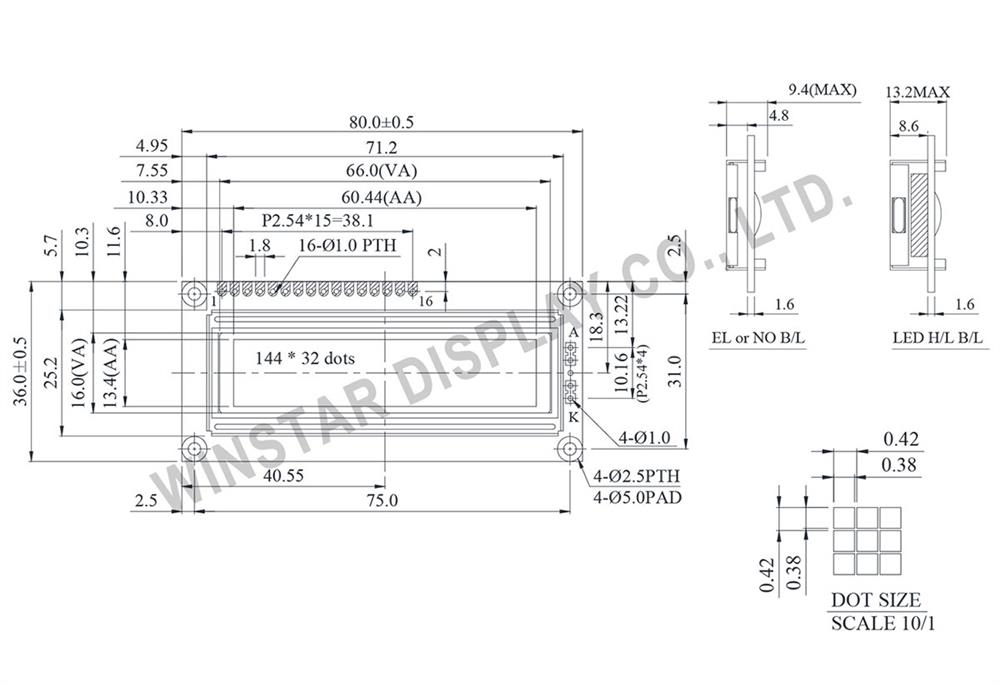

DRAWING

 SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Dot Pitch 0.42 × 0.42 mm
Dot Size 0.38 × 0.38 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 4.30 V
SKU: WG14432B-TFH-V#T
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€18.20
€13.40
€12.90
€12.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€18.20 excl tax



RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

WG14432B is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC.  WG14432B is having the same mechanical size as Character WH1602B.  This WG14432B module supports 8080 8-bit parallel and SPI interface; 5V power supply, also internal boost 3.3V optional.  This 144x32 graphic LCD display supports Traditional Chinese Font and Simplified Chinese Font.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

 SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Dot Pitch 0.42 × 0.42 mm
Dot Size 0.38 × 0.38 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 4.30 V
Products specifications
Brand Winstar
Size 2.4"
Resolution 144x32
Active Area (mm) 60.44x13.44
Dot Size 0.38x0.38
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800/SPI
Display IC ST7920
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 144x32
Active Area (mm) 60.44x13.44
Dot Size 0.38x0.38
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800/SPI
Display IC ST7920
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
