WG14432B5-TMI-V#T

Graphic LCD 2.4'' 144x32, B/L white, STN blue neg, COB, 5V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION



WG14432B is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC.  WG14432B is having the same mechanical size as Character WH1602B.  This WG14432B module supports 8080 8-bit parallel and SPI interface; 5V power supply, also internal boost 3.3V optional.  This 144x32 graphic LCD display supports Traditional Chinese Font and Simplified Chinese Font.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

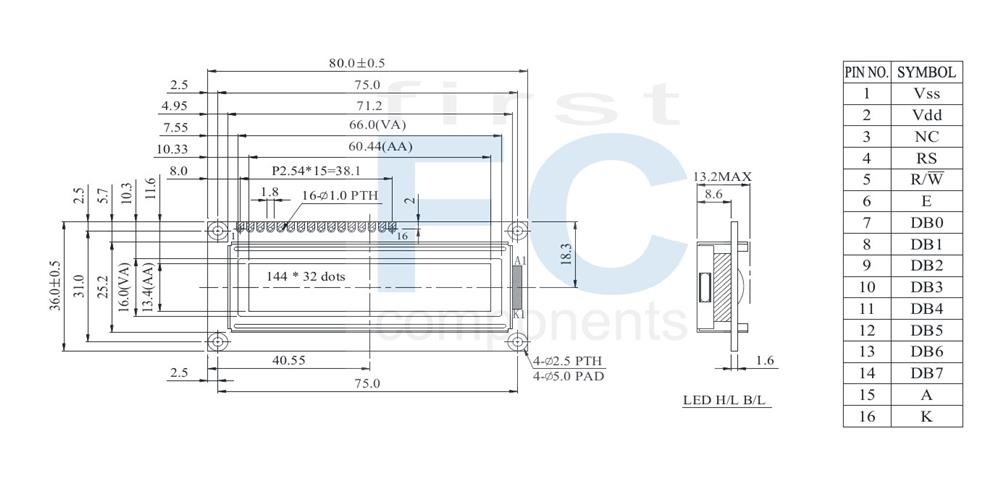

DRAWING

Winstar 144x32 Graphic LCD Display - WG14432B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Dot Pitch 0.42 × 0.42 mm
Dot Size 0.38 × 0.38 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.30 V


SKU: WG14432B5-TMI-V#T
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€13.40
€9.90
€8.30
€8.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€13.40 excl tax

DESCRIPTION



WG14432B is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC.  WG14432B is having the same mechanical size as Character WH1602B.  This WG14432B module supports 8080 8-bit parallel and SPI interface; 5V power supply, also internal boost 3.3V optional.  This 144x32 graphic LCD display supports Traditional Chinese Font and Simplified Chinese Font.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

Winstar 144x32 Graphic LCD Display - WG14432B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Dot Pitch 0.42 × 0.42 mm
Dot Size 0.38 × 0.38 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.30 V


Products specifications
Brand Winstar
Size 2.4"
Resolution 144x32
Active Area (mm) 60.44x13.44
Dot Size 0.38x0.38
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800
Built-in Controller ST7920
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 144x32
Active Area (mm) 60.44x13.44
Dot Size 0.38x0.38
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800
Built-in Controller ST7920
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
