WG14432E5-TFH-V#T

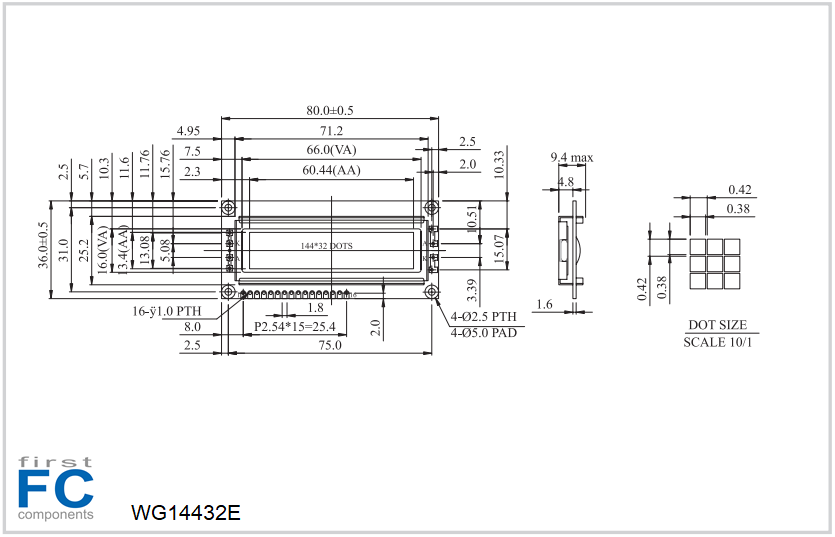

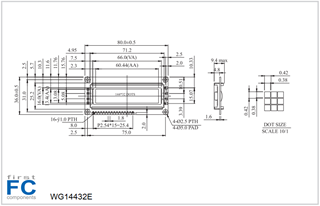

Picture of WG14432E5-TFH-V#T

Graphic LCD 2.4" 144x32, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG

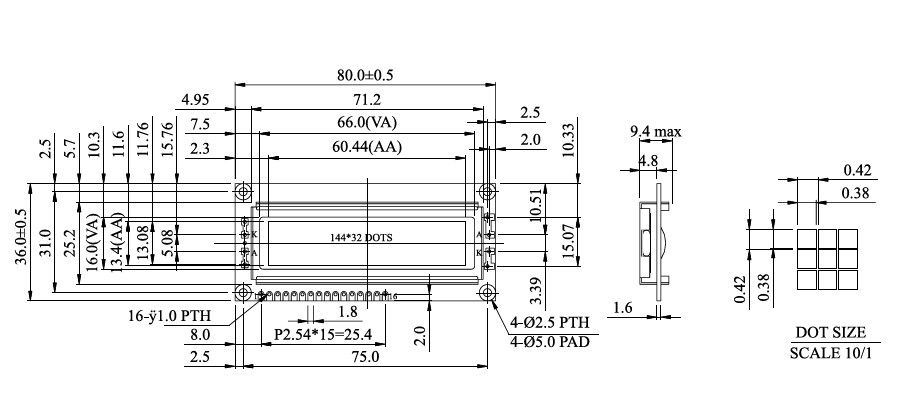

DRAWING

SKU: WG14432E5-TFH-V#T

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

1+

5+

10+

25+

Price

€17.60

€12.90

€12.50

€12.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€17.60 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

Products specifications

Brand	Winstar
Size	2.4"
Resolution	144x32
Active Area (mm)	60.44x13.44
Dot Size	0.38x0.38
B/L color, LCD type	B/L white, FSTN white pos
Power supply	5V
Display Interface	6800
Display IC	ST7920
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	2.4"
Resolution	144x32
Active Area (mm)	60.44x13.44
Dot Size	0.38x0.38
B/L color, LCD type	B/L white, FSTN white pos
Power supply	5V
Display Interface	6800
Display IC	ST7920
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
