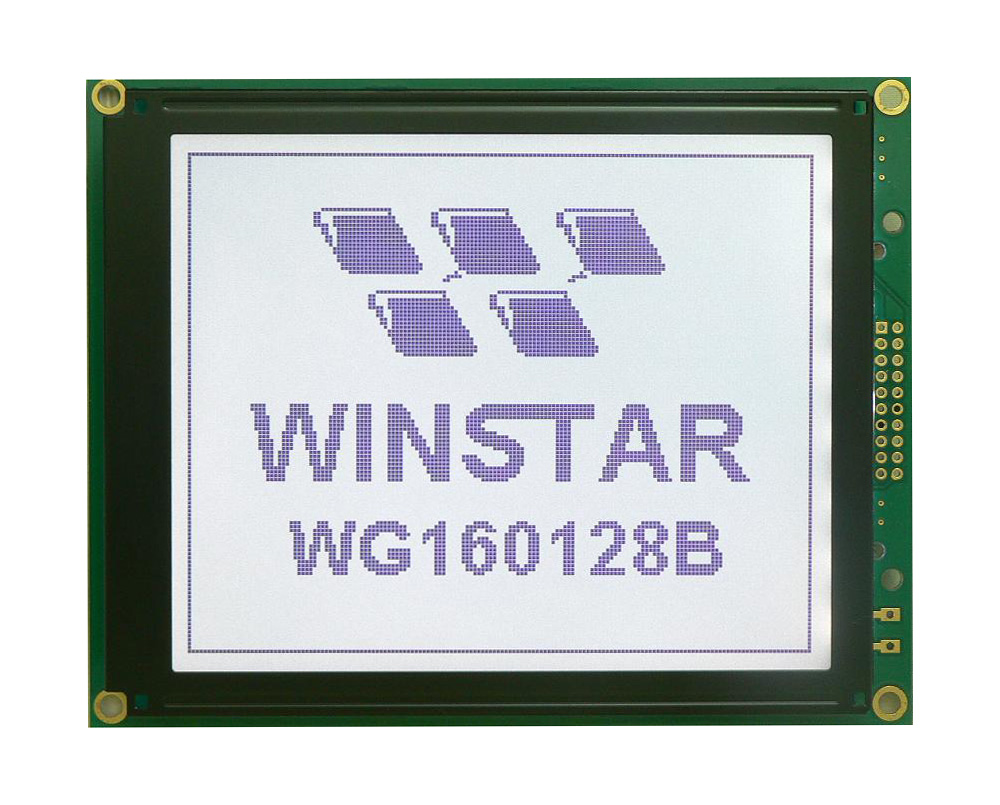

WG160128B-TFH-NZ#

Graphic LCD 4.8'' 160x128, B/L white, FSTN white pos, COB, 5V, Interface 8080, 6 O'clock, No VNEG

DESCRIPTION



WG160128B is a monochrome graphic LCD 160x128 dot matrix display module which is having the module dimension of 129x102 mm and AA size of 95.96x75.76 mm. This WG160128B model is built in with RA6963 controller; it communicates via 8080 8-bit parallel interface; 5V power supply or 3.3V negative voltage optional. This lcd display 160x128 module is available for graphic mode or Character Generator mode (Character font) optional.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

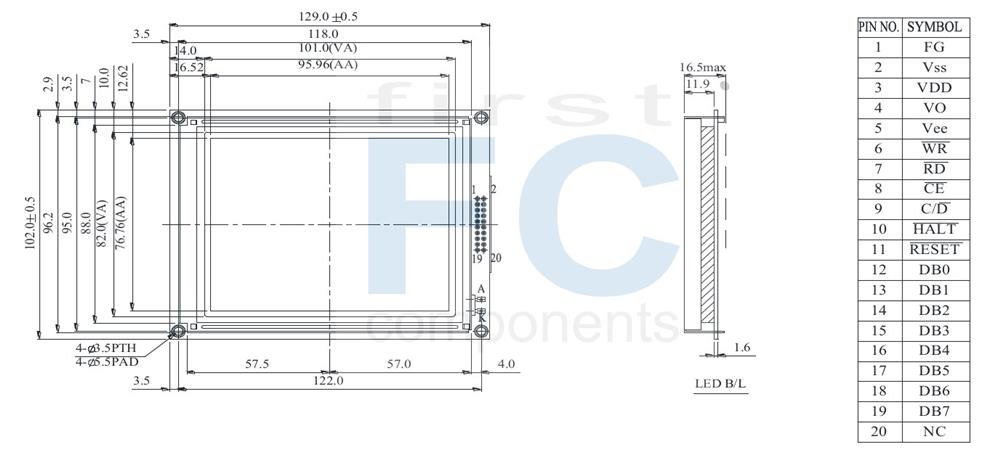

DRAWING

Winstar Graphic LCD 160x128, LCD Display 160x128, WG160128B LCD 160x128

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FG Frame ground
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 VEE Negative Voltage Output
6 /WR Data write. Write data into LCD Controller
7 /RD Data read. Read data from LCD Controller
8 /CE Enable signal
9 C/D Data/ Instruction select signal
10 /HALT Clock operating stop signal
11 /RESET Controller reset signal, Active Low
12~19 DB0~DB7 Data bus line
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 129.0 × 102.0 mm
Viewing Area 101.0 × 82.0 mm
Mounting Hole 122.0 × 96.2 mm
Dot Pitch 0.60 × 0.60 mm
Dot Size 0.56 × 0.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 19.2 V


SKU: WG160128B-TFH-NZ#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€57.80
€51.00
€41.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€57.80 excl tax

DESCRIPTION



WG160128B is a monochrome graphic LCD 160x128 dot matrix display module which is having the module dimension of 129x102 mm and AA size of 95.96x75.76 mm. This WG160128B model is built in with RA6963 controller; it communicates via 8080 8-bit parallel interface; 5V power supply or 3.3V negative voltage optional. This lcd display 160x128 module is available for graphic mode or Character Generator mode (Character font) optional.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

Winstar Graphic LCD 160x128, LCD Display 160x128, WG160128B LCD 160x128

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FG Frame ground
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 VEE Negative Voltage Output
6 /WR Data write. Write data into LCD Controller
7 /RD Data read. Read data from LCD Controller
8 /CE Enable signal
9 C/D Data/ Instruction select signal
10 /HALT Clock operating stop signal
11 /RESET Controller reset signal, Active Low
12~19 DB0~DB7 Data bus line
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 129.0 × 102.0 mm
Viewing Area 101.0 × 82.0 mm
Mounting Hole 122.0 × 96.2 mm
Dot Pitch 0.60 × 0.60 mm
Dot Size 0.56 × 0.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 19.2 V


Products specifications
Brand Winstar
Size 4.8"
Resolution 160x128
Active Area (mm) 95.96x76.76
Dot Size 0.56x0.56
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 8080
Display IC Controller RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.8"
Resolution 160x128
Active Area (mm) 95.96x76.76
Dot Size 0.56x0.56
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 8080
Display IC Controller RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
