WG16032A-TFH-V#A

Graphic LCD 2.87'' 160x32, B/L white, FSTN white pos, COB, 5V, Interface 6800, 6 O'clock, VNEG

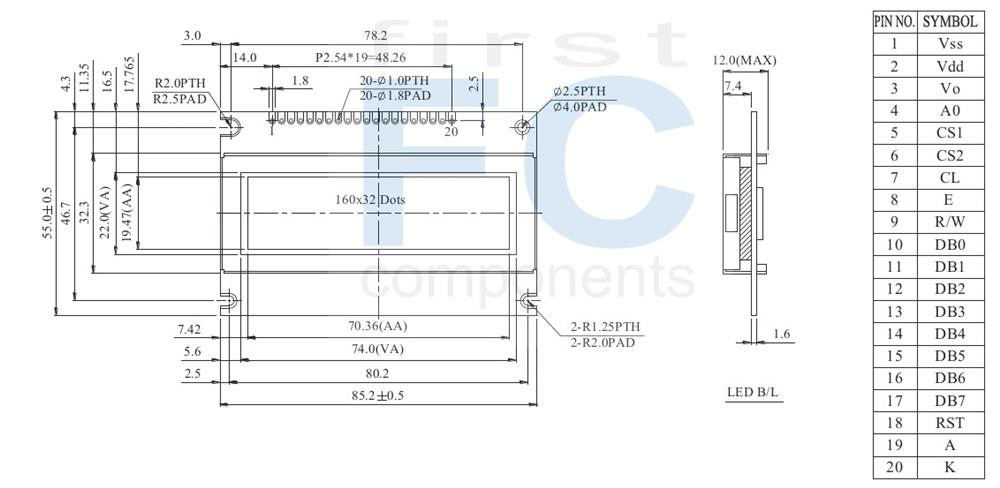

DRAWING

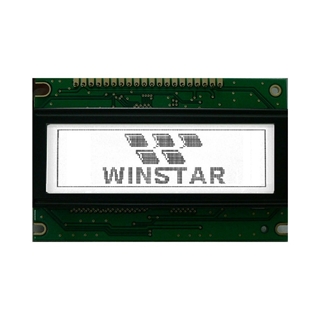

Winstar 160x32 Liquid Crystal Display - WG16032A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 CS1 Cs1=0 cs2=0 chip select signal for s1~s61
Cs1=0 cs2=1 chip select signal for s62~s141
6 CS2 Cs1=1 cs2=0 chip select signal for s142~s168
7 CL External clock 2KHZ
8 E Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 RST Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.2 × 55.0 mm
Viewing Area 74.0 × 22.0 mm
Mounting Hole 80.2 × 46.7 mm
Dot Pitch 0.44 × 0.61 mm
Dot Size 0.40 × 0.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO --- V


SKU: WG16032A-TFH-V#A
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
50+
100+
Price
€21.50
€15.80
€12.80
€11.70
€11.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€21.50 excl tax

DRAWING

Winstar 160x32 Liquid Crystal Display - WG16032A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 CS1 Cs1=0 cs2=0 chip select signal for s1~s61
Cs1=0 cs2=1 chip select signal for s62~s141
6 CS2 Cs1=1 cs2=0 chip select signal for s142~s168
7 CL External clock 2KHZ
8 E Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 RST Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.2 × 55.0 mm
Viewing Area 74.0 × 22.0 mm
Mounting Hole 80.2 × 46.7 mm
Dot Pitch 0.44 × 0.61 mm
Dot Size 0.40 × 0.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO --- V


Products specifications
Brand Winstar
Size 2.87"
Resolution 160x32
Active Area (mm) 70.36x19.47
Dot Size 0.40x0.56
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Interface 6800
Built-in Controller SBN1661G
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.87"
Resolution 160x32
Active Area (mm) 70.36x19.47
Dot Size 0.40x0.56
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Interface 6800
Built-in Controller SBN1661G
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
