WH2004L-TMI-ETV#

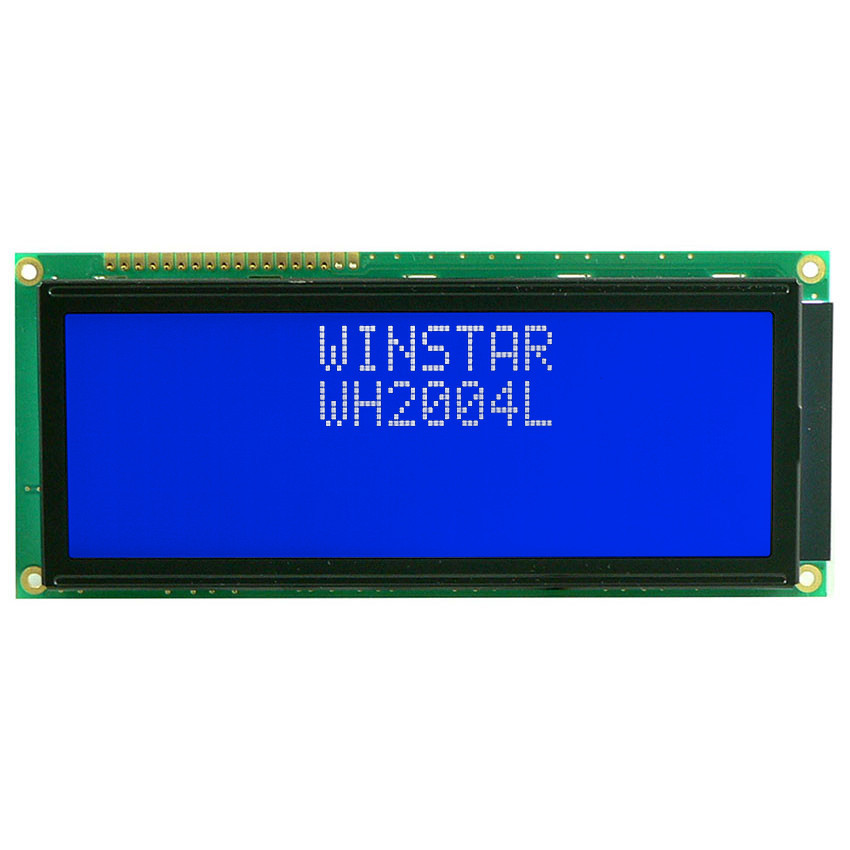

Character LCD 4.9" 20x4, B/L white, STN blue neg, Transmissive, COB, 3V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

WH2004L is 24 characters by 2 lines STN LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. These 20x4 LCD STN display modules are also available in SPI and I2C interface by using RW1063 controller IC. This type of STN LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WH2004L is available in several different backlight colors including blue, green, yellow-green, amber, red and white LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH2004L series, details as below:
►WH2004L : 6800 interface (ST7066 IC)
►WH2004L1 : SPI interface (RW1063 IC)
►WH2004L2 : I2C interface (RW1063 IC)

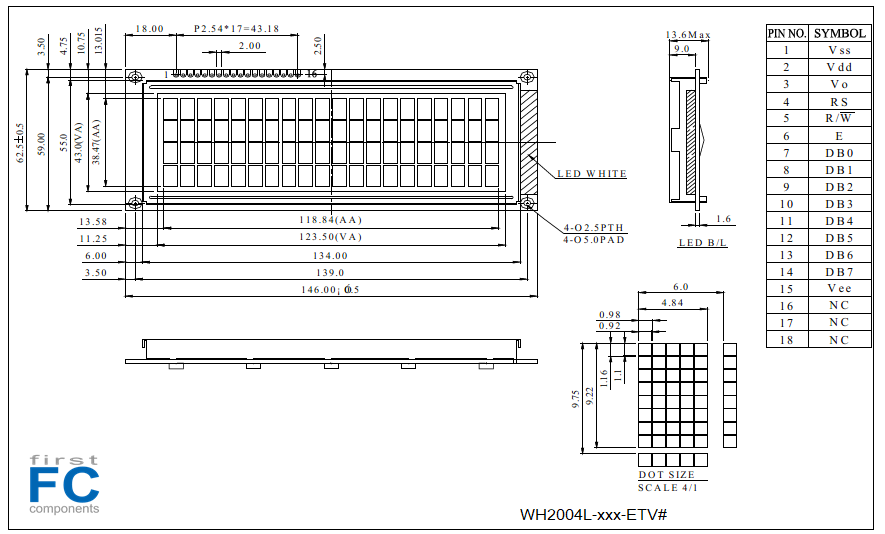

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Standard Value	Unit
Module Dimension	146.0 × 62.5	mm
Viewing Area	123.5 × 43.0	mm
Mounting Hole	139.0 × 55.5	mm
Character Size	4.84 × 9.22	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3	V

Display Character Address Code

Display Position	1	2	3	4	5	6	7	8	9	10	11	12	13	---	---	20
DD RAM Address	00	01														13
DD RAM Address	40	41														53

DD RAM Address	14	15														27
DD RAM Address	54	55														67

SKU: WH2004L-TMI-ETV#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€23.20

€18.50

€17.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€23.20 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Standard Value	Unit
Module Dimension	146.0 × 62.5	mm
Viewing Area	123.5 × 43.0	mm
Mounting Hole	139.0 × 55.5	mm
Character Size	4.84 × 9.22	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3	V

Display Character Address Code

Display Position	1	2	3	4	5	6	7	8	9	10	11	12	13	---	---	20
DD RAM Address	00	01														13
DD RAM Address	40	41														53

DD RAM Address	14	15														27
DD RAM Address	54	55														67

Products specifications

Brand	Winstar
Size	4.9"
Resolution	20x4
Active Area (mm)	118.84x38.47
Dot Size	0.92x1.10
B/L color, LCD type	B/L white, STN blue neg
Power supply	3V
Display Interface	6800
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	18
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred

Download

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	4.9"
Resolution	20x4
Active Area (mm)	118.84x38.47
Dot Size	0.92x1.10
B/L color, LCD type	B/L white, STN blue neg
Power supply	3V
Display Interface	6800
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	18
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
