WG16080C1-YYH-VZ#

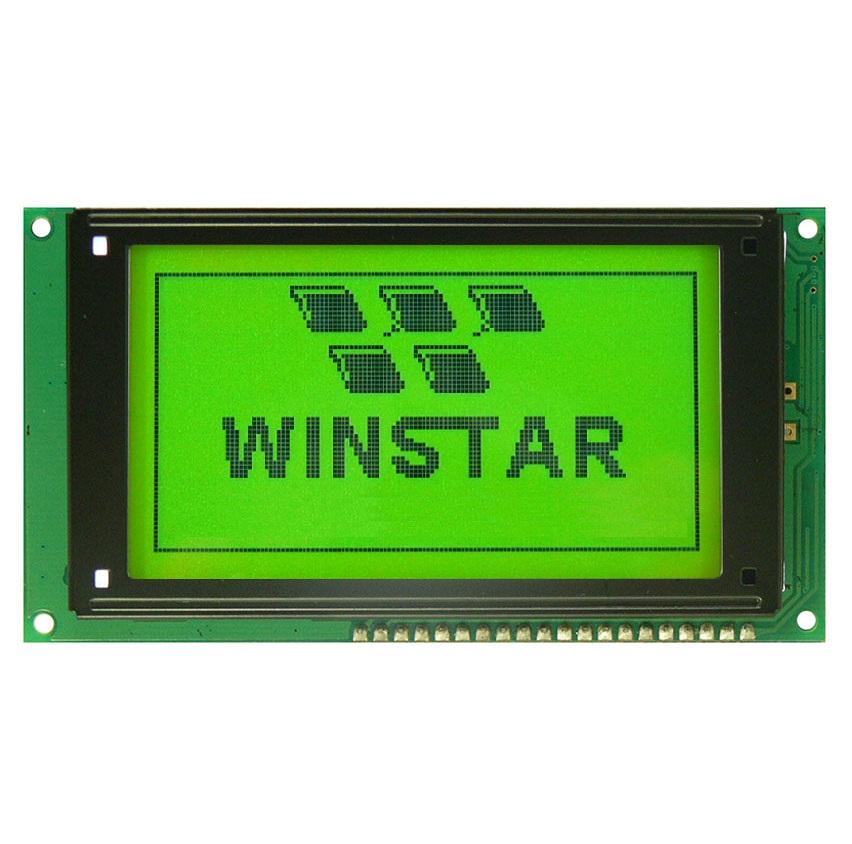

Graphic LCD 2.96'' 160x80, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 8080, 6 O'clock, VNEG

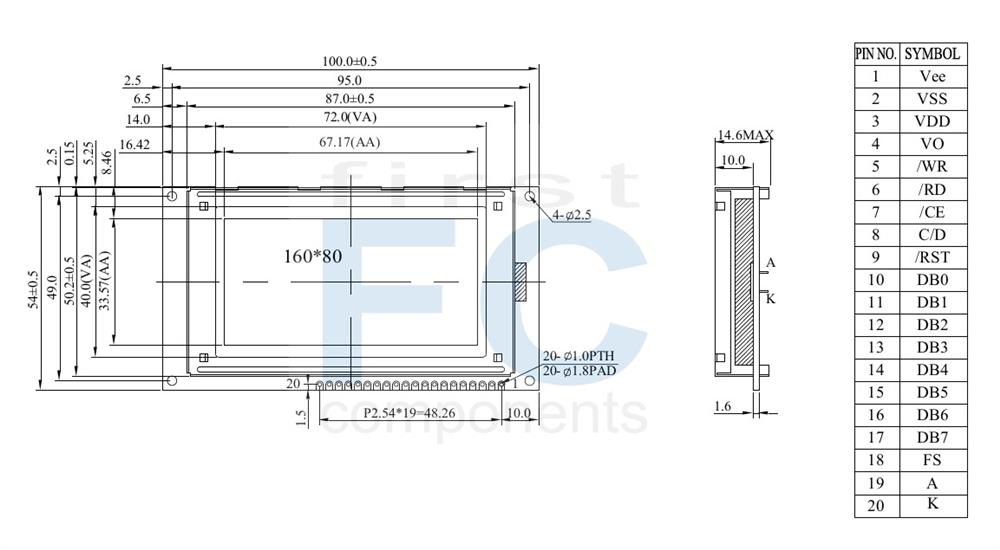

DRAWING

Winstar - WG16080C1 160x80 LCD Display Graphic, 160 x 80 LCD

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VEE Negative Voltage Output
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 /CD Data/ Instruction select signal
9 /RST Controller reset signal, Active Low
10~17 DB0~DB7 Data bus line
18 FS Selection of font; H : 6 * 8 , L : 8 * 8
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 100.0 × 54.0 mm
Viewing Area 72.0 × 40.0 mm
Mounting Hole 95.0 × 49.0 mm
Dot Pitch 0.42 × 0.42 mm
Dot Size 0.39 × 0.39 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 11.5 V


SKU: WG16080C1-YYH-VZ#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€26.90
€21.50
€18.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€26.90 excl tax

DRAWING

Winstar - WG16080C1 160x80 LCD Display Graphic, 160 x 80 LCD

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VEE Negative Voltage Output
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 /CD Data/ Instruction select signal
9 /RST Controller reset signal, Active Low
10~17 DB0~DB7 Data bus line
18 FS Selection of font; H : 6 * 8 , L : 8 * 8
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 100.0 × 54.0 mm
Viewing Area 72.0 × 40.0 mm
Mounting Hole 95.0 × 49.0 mm
Dot Pitch 0.42 × 0.42 mm
Dot Size 0.39 × 0.39 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 11.5 V


Products specifications
Brand Winstar
Size 2.96"
Resolution 160x80
Active Area (mm) 67.17x33.57
Dot Size 0.39x0.39
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Interface 8080
Built-in Controller RA6963
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.96"
Resolution 160x80
Active Area (mm) 67.17x33.57
Dot Size 0.39x0.39
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Interface 8080
Built-in Controller RA6963
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
