WG240128B-YYH-TZ#
WG240128B-YYH-TZ#

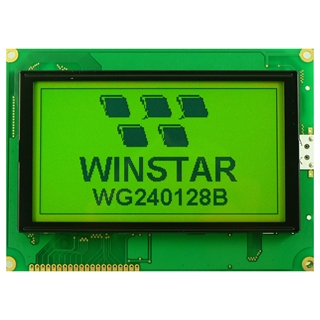

Graphic LCD 4.8'' 240x128, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 8080, 6 O'clock, VNEG, Temperature compensator
DESCRIPTION
WG240128B is a 240 x 128 graphic LCD module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240x128 graphic LCD module is built in with RA6963 controller and negative voltage built in on module. It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional. WG240128B module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

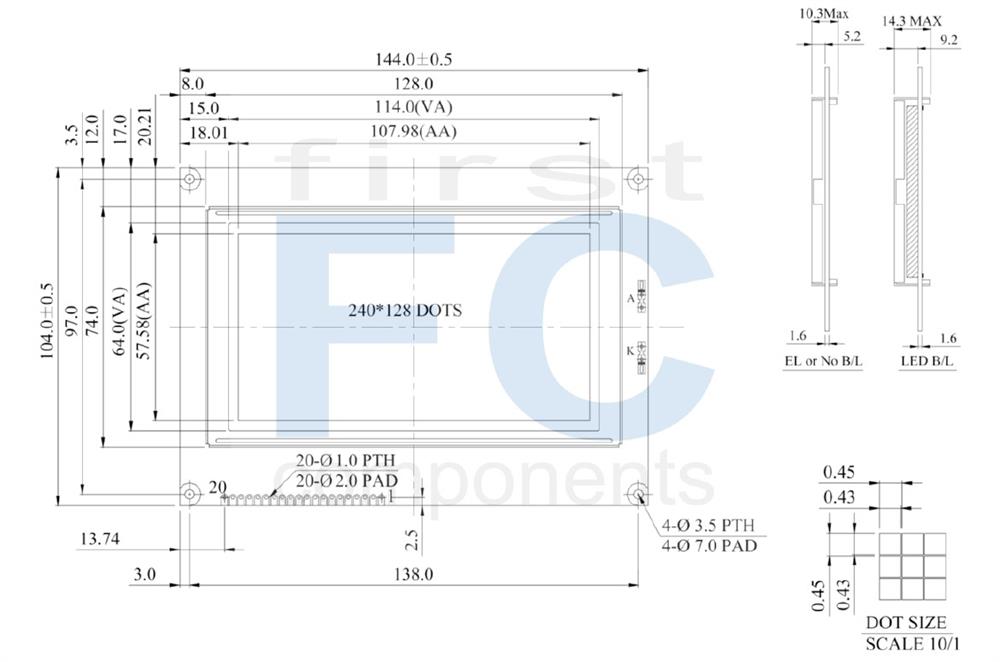

DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
V
SS
Ground
2
V
DD
Power supply for logic
3
V
O
Contrast Adjustment
4
C/D
Data/ Instruction select signal
5
/RD
Data read. Read data from LCD Controller
6
/WR
Data write. Write data into LCD Controller
7~14
DB0~DB7
Data bus line
15
/CE
Enable signal
16
/RESET
Controller reset signal, Active Low
17
V
EE
Negative Voltage Output
18
MD2
H: 32 columns ; L: 40 columns
19
FS1
Selection of font; H : 6 * 8 , L : 8 * 8
20
NC
No connection
Mechanical Data
Item
Standard Value
Unit
Module Dimension
144.0 × 104.0
mm
Viewing Area
114.0 × 64.0
mm
Mounting Hole
138.0 × 97.0
mm
Dot Pitch
0.45 × 0.45
mm
Dot Size
0.43 × 0.43
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
3/5
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
19.5
V
SKU:
WG240128B-YYH-TZ#
Brand:
Winstar
Be the first to review this product
Overview
Specifications
Download
Contact Us
DESCRIPTION
WG240128B is a 240 x 128 graphic LCD module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240x128 graphic LCD module is built in with RA6963 controller and negative voltage built in on module. It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional. WG240128B module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
V
SS
Ground
2
V
DD
Power supply for logic
3
V
O
Contrast Adjustment
4
C/D
Data/ Instruction select signal
5
/RD
Data read. Read data from LCD Controller
6
/WR
Data write. Write data into LCD Controller
7~14
DB0~DB7
Data bus line
15
/CE
Enable signal
16
/RESET
Controller reset signal, Active Low
17
V
EE
Negative Voltage Output
18
MD2
H: 32 columns ; L: 40 columns
19
FS1
Selection of font; H : 6 * 8 , L : 8 * 8
20
NC
No connection
Mechanical Data
Item
Standard Value
Unit
Module Dimension
144.0 × 104.0
mm
Viewing Area
114.0 × 64.0
mm
Mounting Hole
138.0 × 97.0
mm
Dot Pitch
0.45 × 0.45
mm
Dot Size
0.43 × 0.43
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
3/5
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
19.5
V
Products specifications
Brand
Winstar
Size
4.8"
Resolution
240x128
Active Area (mm)
107.98x57.58
Dot Size
0.43x0.43
B/L color, LCD type
B/L yellow/green, STN yellow/green pos
Power supply
5V
Interface
8080
Built-in Controller
RA6963
Structure
COB
View Angle
6H
Frame
Yes
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
20
Pin Pitch
2.54mm
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Winstar
Size
4.8"
Resolution
240x128
Active Area (mm)
107.98x57.58
Dot Size
0.43x0.43
B/L color, LCD type
B/L yellow/green, STN yellow/green pos
Power supply
5V
Interface
8080
Built-in Controller
RA6963
Structure
COB
View Angle
6H
Frame
Yes
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
20
Pin Pitch
2.54mm
Preferred - Not Preferred
Preferred
