WG19264D-YYH-V#N

Graphic LCD 4" 192x64, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION

WG19264D is a monochrome graphic 192x64 LCD dot matrix display which is having the module dimension of 120x62 mm and AA size of 96x32 mm. This 192x64 LCD display is built in with NT7108 and NT7107 IC; it communicates via 6800 8-bit parallel interface; 5V power supply and 3.3V negative voltage optional. This WG19264D module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

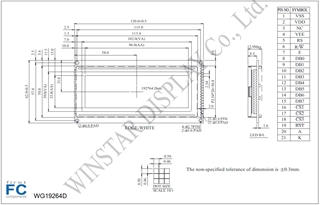

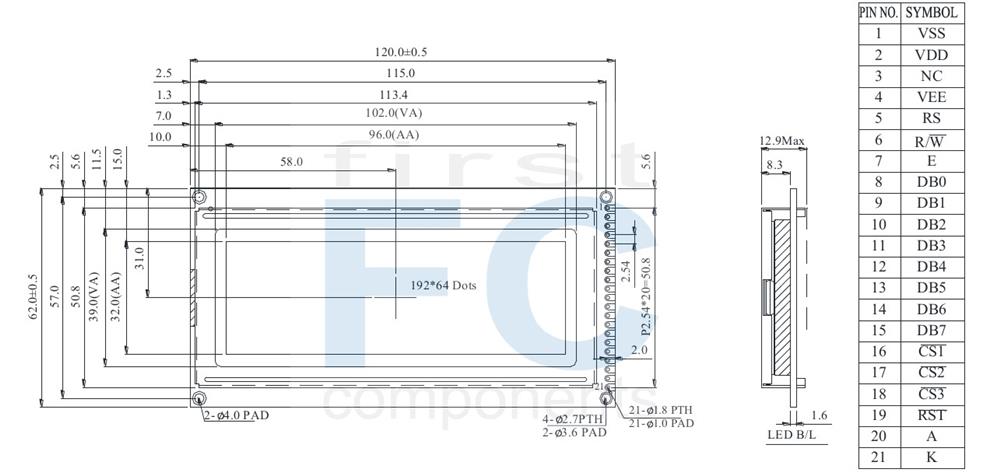

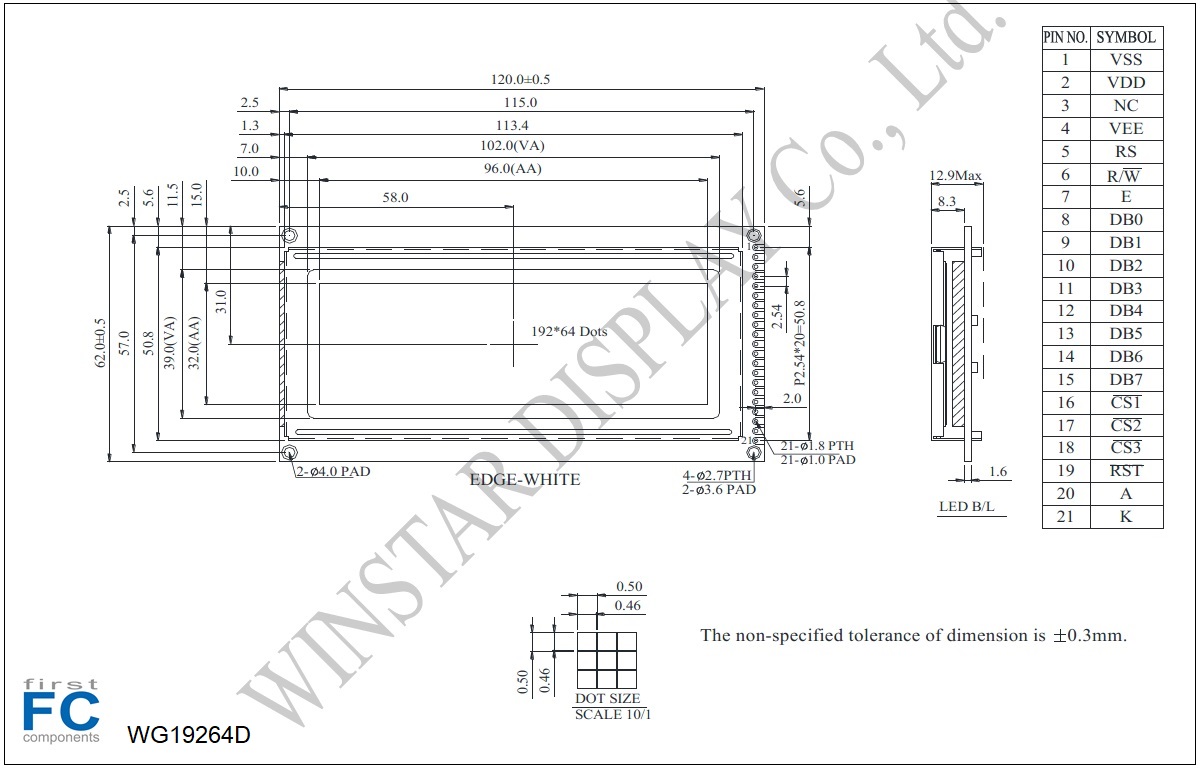

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground
2	VDD	Power supply for logic
3	NC	No connection
4	Vee	Negative Voltage Output
5	RS	Data/ Instruction select signal
6	R/W	Read/Write select signal
7	E	Enable signal
8~15	DB0~DB7	Data bus line
16	/CS1	Chip select IC1 ( Column 1 ~ 64)
17	/CS2	Chip select IC2 ( Column 65 ~ 128)
18	/CS3	Chip select IC3 ( Column 128 ~ 192)
19	/RST	Controller reset signal, Active Low
20	A	Power supply for B/L +
21	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	120.0 × 62.0	mm
Viewing Area	102.0 × 39.0	mm
Mounting Hole	115.0 × 57.0	mm
Dot Pitch	0.50 × 0.50	mm
Dot Size	0.46 × 0.46	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	8.55	V

SKU: WG19264D-YYH-V#N

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€26.00

€20.80

€20.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€26.00 excl tax

Overview
Product Notifications
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground
2	VDD	Power supply for logic
3	NC	No connection
4	Vee	Negative Voltage Output
5	RS	Data/ Instruction select signal
6	R/W	Read/Write select signal
7	E	Enable signal
8~15	DB0~DB7	Data bus line
16	/CS1	Chip select IC1 ( Column 1 ~ 64)
17	/CS2	Chip select IC2 ( Column 65 ~ 128)
18	/CS3	Chip select IC3 ( Column 128 ~ 192)
19	/RST	Controller reset signal, Active Low
20	A	Power supply for B/L +
21	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	120.0 × 62.0	mm
Viewing Area	102.0 × 39.0	mm
Mounting Hole	115.0 × 57.0	mm
Dot Pitch	0.50 × 0.50	mm
Dot Size	0.46 × 0.46	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	8.55	V

Date	Notice	Link/Description
2023/04/06	PCN	Neotec IC NT7107C/NT7108C > NT7107T/NT7108T for WG12864 & WG19264 Families

For more details, please contact us @ [email protected]

Products specifications

Brand	Winstar
Size	4"
Resolution	192x64
Active Area (mm)	96.00x32.00
Dot Size	0.46x0.46
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	5V
Display Interface	6800
Display IC	NT7107T+NT7108T
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	21
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
