WG240128B-YGH-VZ#

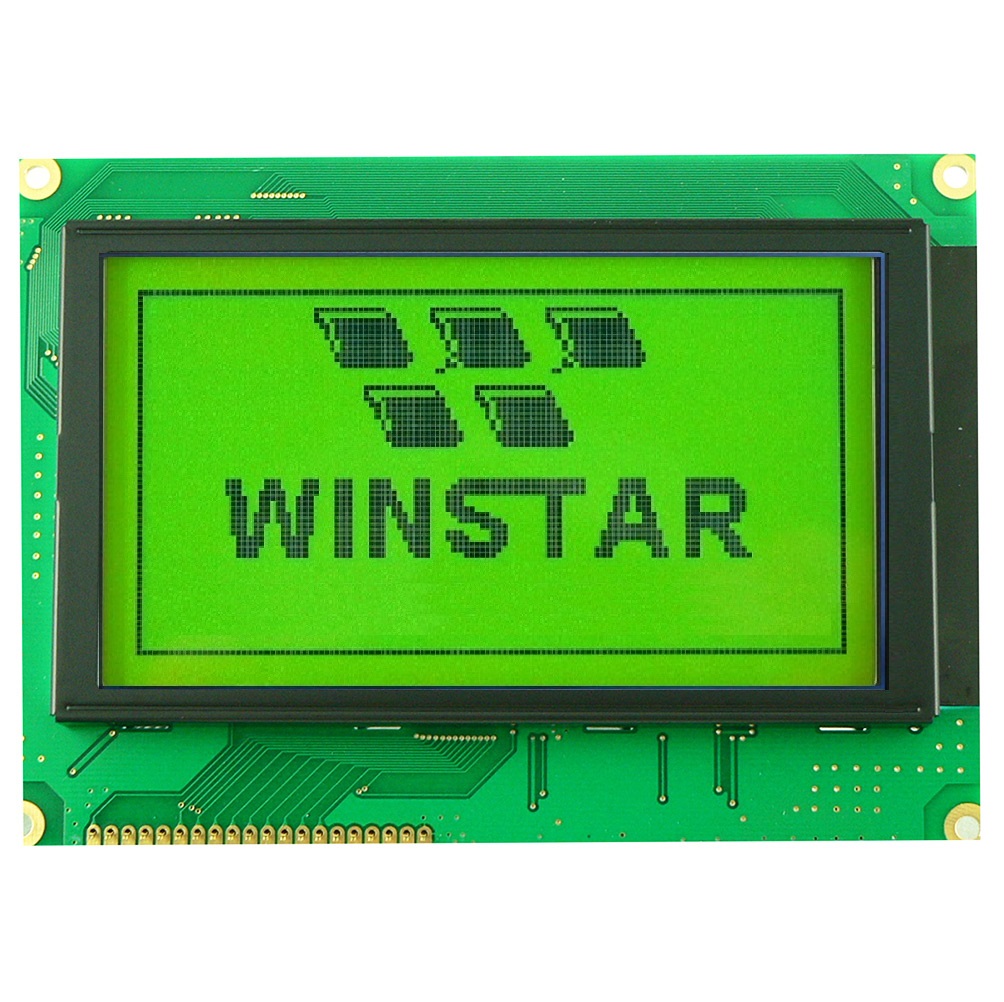

Graphic LCD 4.8'' 240x128, B/L yellow/green, STN gray pos., COB, 5V, Interface 8080, 6 O'clock, VNEG

DESCRIPTION



WG240128B is a 240 x 128 graphic LCD module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240x128 graphic LCD module is built in with RA6963 controller and negative voltage built in on module.  It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional.  WG240128B module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

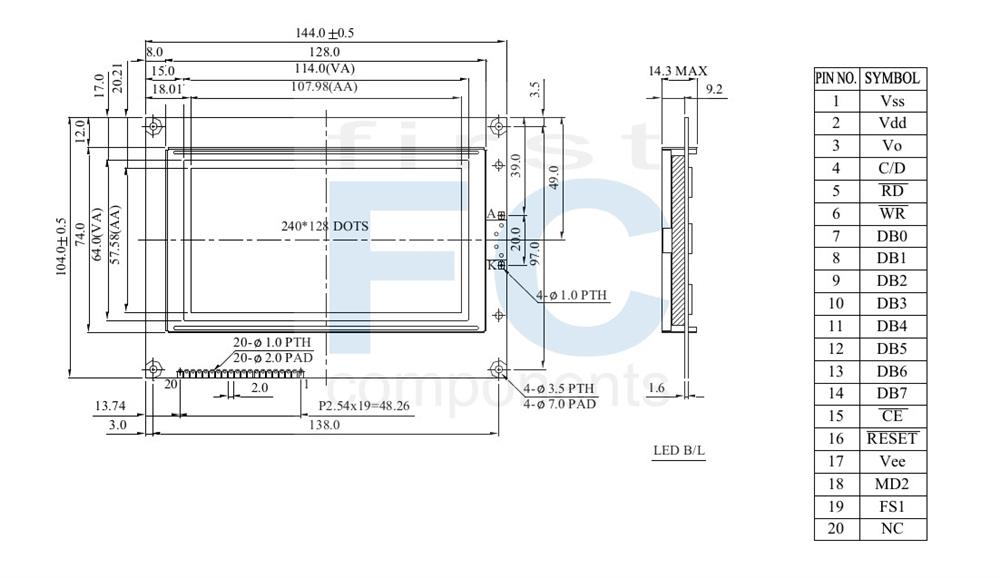

DRAWING

240x128 Graphic LCD, 240x128 LCD Module - Winstar WG240128B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 C/D Data/ Instruction select signal
5 /RD Data read. Read data from LCD Controller
6 /WR Data write. Write data into LCD Controller
7~14 DB0~DB7 Data bus line
15 /CE Enable signal
16 /RESET Controller reset signal, Active Low
17 VEE Negative Voltage Output
18 MD2 H: 32 columns ; L: 40 columns
19 FS1 Selection of font; H : 6 * 8 , L : 8 * 8
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 144.0 × 104.0 mm
Viewing Area 114.0 × 64.0 mm
Mounting Hole 138.0 × 97.0 mm
Dot Pitch 0.45 × 0.45 mm
Dot Size 0.43 × 0.43 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 19.5 V


SKU: WG240128B-YGH-VZ#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€58.80
€52.00
€43.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€58.80 excl tax

DESCRIPTION



WG240128B is a 240 x 128 graphic LCD module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240x128 graphic LCD module is built in with RA6963 controller and negative voltage built in on module.  It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional.  WG240128B module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

240x128 Graphic LCD, 240x128 LCD Module - Winstar WG240128B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 C/D Data/ Instruction select signal
5 /RD Data read. Read data from LCD Controller
6 /WR Data write. Write data into LCD Controller
7~14 DB0~DB7 Data bus line
15 /CE Enable signal
16 /RESET Controller reset signal, Active Low
17 VEE Negative Voltage Output
18 MD2 H: 32 columns ; L: 40 columns
19 FS1 Selection of font; H : 6 * 8 , L : 8 * 8
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 144.0 × 104.0 mm
Viewing Area 114.0 × 64.0 mm
Mounting Hole 138.0 × 97.0 mm
Dot Pitch 0.45 × 0.45 mm
Dot Size 0.43 × 0.43 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 19.5 V


Products specifications
Brand Winstar
Size 4.8"
Resolution 240x128
Active Area (mm) 107.98x57.58
Dot Size 0.43x0.43
B/L color, LCD type B/L yellow/green, STN gray pos
Power supply 5V
Display Interface 8080
Display IC Controller RA6963
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
