PH240320T075-ZHA

Picture of PH240320T075-ZHA Picture of PH240320T075-ZHA
TFT 2.8" 240x320 Portrait LCD Panel, Interface MCU (Parallel) IC ST7789VI, High Brightness 1000cd/m², Wide View Angle (IPS), No touch

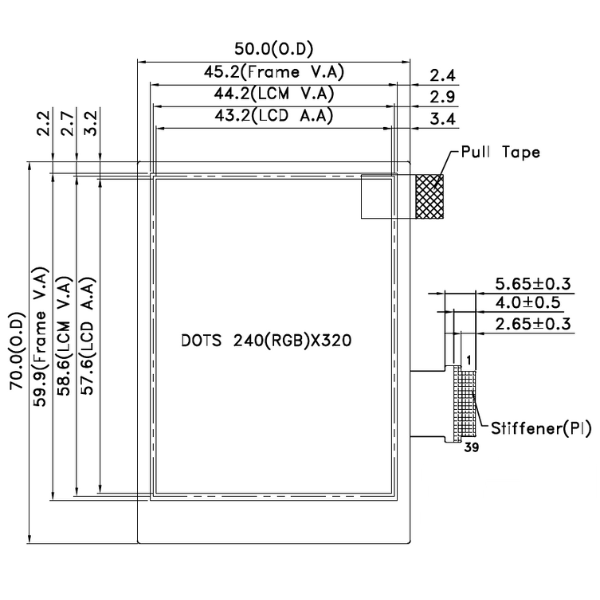

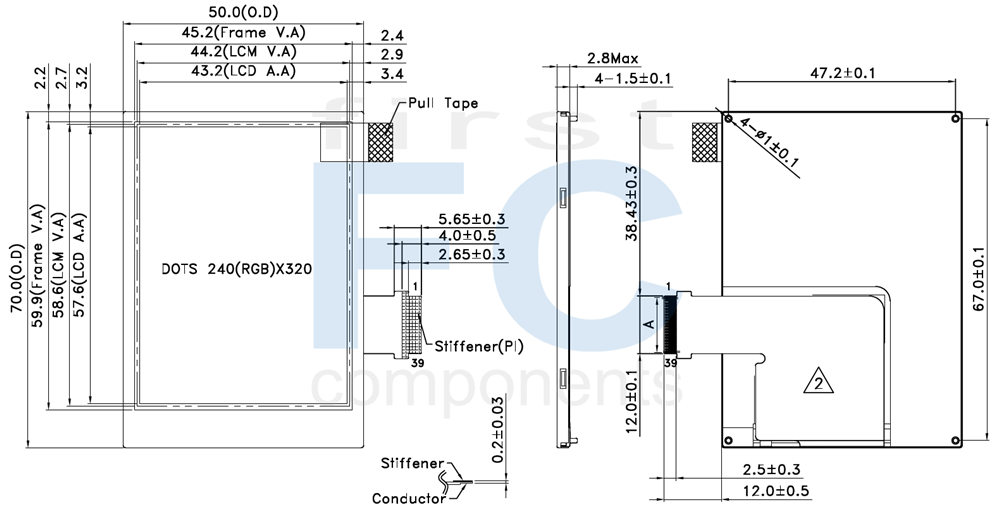

DRAWING



SPECIFICATIONS

Interface Pin Description

PinSymbolDescription
1 GND Signal ground (0V)
2 GND Signal ground (0V)
3 ID Identify pin --- 1K Pullup to IOVCC
4 IM0 Interface mode pin
5 IM1
External setting pins
IM1 IM0 Interface Mode DB PIN
0 0 80-16-bit parallel interface II DB17-10,DB8-1
0 1 80-8-bit parallel interface II DB17-10
1 0 80-18-bit parallel interface II DB17-0
1 1 80-9-bit parallel interface II DB17-9
6 RESET

Reset input pin for TFT LCD.

When RESET is "L", initialization is executed.
7 DB17

Bi-directional data bus
8 DB16

Bi-directional data bus
9 DB15

Bi-directional data bus
10 DB14

Bi-directional data bus
11 DB13 Bi-directional data bus
12 DB12 Bi-directional data bus
13

DB11

Bi-directional data bus
14 DB10 Bi-directional data bus
15 DB9 Bi-directional data bus
16 DB8

Bi-directional data bus
17 DB7

Bi-directional data bus
18 DB6 Bi-directional data bus
19 DB5 Bi-directional data bus
20 DB4 Bi-directional data bus
21 DB3 Bi-directional data bus
22 DB2 Bi-directional data bus
23 DB1 Bi-directional data bus
24 DB0 Bi-directional data bus
25 RD Read data at the rising edge
26 WR Write signal input, active at Low
27 RS When RS=0: Command. when RS=1: Display data
28 CS Chip select signal, Active at "L"
29 IOVCC Power supply of Digital Circuit
30 IOVCC Power supply of Digital Circuit
31 VCC Power supply of Analog Circuit
32 VCC Power supply of Analog Circuit
33 GND Signal ground (0V)
34 LEDA Power supply for LED Backlight Anode input
35 LEDK Power supply for LED Backlight Cathode input
36 GND Signal ground (0V)
37 GND Signal ground (0V)
38 GND Signal ground (0V)
39 GND Signal ground (0V)



General Specification

ItemStandard Value
Display Type 240 x 3(RGB) x 320 Dots
Module dimension 50.0(W) × 70.0(L) × 2.86(H)
Active Area 43.2(W) × 57.6(L)
LCD Type Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch) 2.8 inch
Color Configuration RGB-Strip
Interface 18/16/9/8-bits 8080 interface
Driver IC ST7789VI (Or Compatible IC)
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
System Power Supply Voltage VCC GND=0 -0.3 4.6 V
IOCC  GND=0 -0.3 4.6 V
Operating Temperature TOP - -20 70 °C
Storage Temperature TST - -30 80 °C
Storage Humidity HD Ta≤60°C 10 90 %RH



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply Voltage VCC - - 2.8 - V
IOVCC - - 2.8 - V
Input H/L Level Voltage VIH - 0.7*IOVCC - IOVCC V
VIL - GND － 0.3IOVCC V
Supply Current Idd

VCC&IOVCC=2.8V

Pattern=Photo

 - 8 - mA

VCC&IOVCC=2.8V

Pattern=RGB *1

 -  10 15 mA

Note 1: Maximum current display

SKU: PH240320T075-ZHA
Brand: Powertip
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.10
€13.90
€11.80
€10.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€15.10 excl tax

DRAWING



SPECIFICATIONS

Interface Pin Description

PinSymbolDescription
1 GND Signal ground (0V)
2 GND Signal ground (0V)
3 ID Identify pin --- 1K Pullup to IOVCC
4 IM0 Interface mode pin
5 IM1
External setting pins
IM1 IM0 Interface Mode DB PIN
0 0 80-16-bit parallel interface II DB17-10,DB8-1
0 1 80-8-bit parallel interface II DB17-10
1 0 80-18-bit parallel interface II DB17-0
1 1 80-9-bit parallel interface II DB17-9
6 RESET

Reset input pin for TFT LCD.

When RESET is "L", initialization is executed.
7 DB17

Bi-directional data bus
8 DB16

Bi-directional data bus
9 DB15

Bi-directional data bus
10 DB14

Bi-directional data bus
11 DB13 Bi-directional data bus
12 DB12 Bi-directional data bus
13

DB11

Bi-directional data bus
14 DB10 Bi-directional data bus
15 DB9 Bi-directional data bus
16 DB8

Bi-directional data bus
17 DB7

Bi-directional data bus
18 DB6 Bi-directional data bus
19 DB5 Bi-directional data bus
20 DB4 Bi-directional data bus
21 DB3 Bi-directional data bus
22 DB2 Bi-directional data bus
23 DB1 Bi-directional data bus
24 DB0 Bi-directional data bus
25 RD Read data at the rising edge
26 WR Write signal input, active at Low
27 RS When RS=0: Command. when RS=1: Display data
28 CS Chip select signal, Active at "L"
29 IOVCC Power supply of Digital Circuit
30 IOVCC Power supply of Digital Circuit
31 VCC Power supply of Analog Circuit
32 VCC Power supply of Analog Circuit
33 GND Signal ground (0V)
34 LEDA Power supply for LED Backlight Anode input
35 LEDK Power supply for LED Backlight Cathode input
36 GND Signal ground (0V)
37 GND Signal ground (0V)
38 GND Signal ground (0V)
39 GND Signal ground (0V)



General Specification

ItemStandard Value
Display Type 240 x 3(RGB) x 320 Dots
Module dimension 50.0(W) × 70.0(L) × 2.86(H)
Active Area 43.2(W) × 57.6(L)
LCD Type Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch) 2.8 inch
Color Configuration RGB-Strip
Interface 18/16/9/8-bits 8080 interface
Driver IC ST7789VI (Or Compatible IC)
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
System Power Supply Voltage VCC GND=0 -0.3 4.6 V
IOCC  GND=0 -0.3 4.6 V
Operating Temperature TOP - -20 70 °C
Storage Temperature TST - -30 80 °C
Storage Humidity HD Ta≤60°C 10 90 %RH



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply Voltage VCC - - 2.8 - V
IOVCC - - 2.8 - V
Input H/L Level Voltage VIH - 0.7*IOVCC - IOVCC V
VIL - GND － 0.3IOVCC V
Supply Current Idd

VCC&IOVCC=2.8V

Pattern=Photo

 - 8 - mA

VCC&IOVCC=2.8V

Pattern=RGB *1

 -  10 15 mA

Note 1: Maximum current display

Products specifications
Brand Powertip
Size 2.8"
Resolution 240x320
Active Area (mm) 43.20x57.60
Color Full Color
Display Interface MCU (Parallel)
Display IC ST7789VI
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 39
Pin Pitch 0.3mm
Preferred - Not Preferred Preferred
