WG24064A-YYH-VZK#

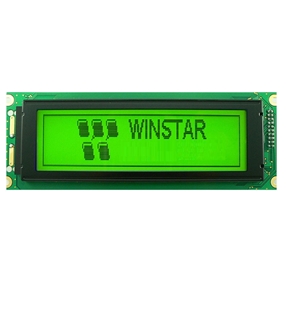

Graphic LCD 5.2'' 240x64, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 8080, 6 O'clock, VNEG, 90 Dice

DESCRIPTION



WG24064A is 240x64 graphic LCD display module which is built in RA6963 controller; it communicates via 8080 8-bit parallel interface and negative voltage built in on module.  WG24064A is available in various LED colors including yellow/green, blue, white, red and RGB backlight.  This 240x64 LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

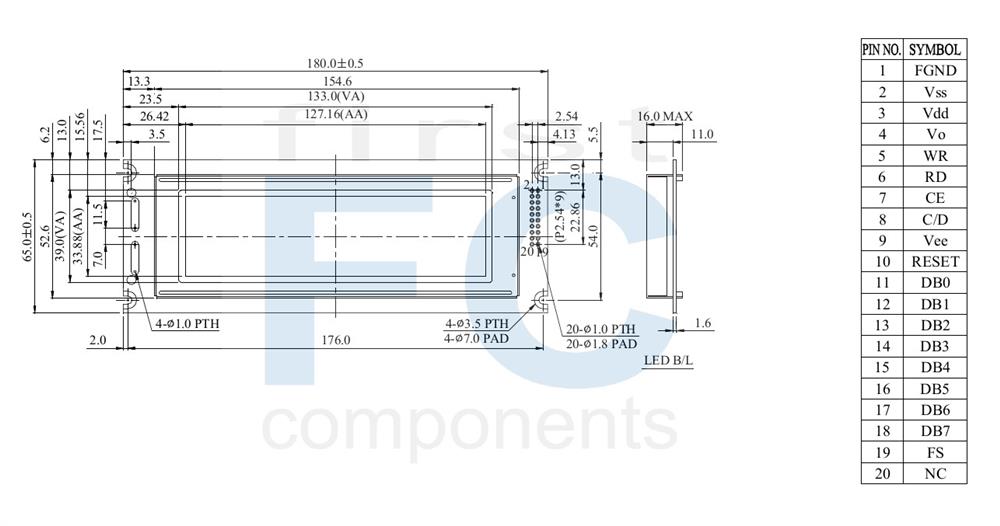

DRAWING

WG24064A 240x64 Graphic LCD, 240x64 LCD Display, 240x64 LCD Module, Display LCD 240x64

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FG Frame ground
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 C/D Data/ Instruction select signal
9 VEE Negative Voltage Output
10 /RESET Controller reset signal, Active Low
11~18 DB0~DB7 Data bus line
19 FS Selection of font; H : 6 * 8 , L : 8 * 8
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 180.0 × 65.0 mm
Viewing Area 133.0 × 39.0 mm
Mounting Hole 176.0 × 54.0 mm
Dot Pitch 0.53 × 0.53 mm
Dot Size 0.49 × 0.49 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 12.5 V


SKU: WG24064A-YYH-VZK#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€42.80
€35.70
€28.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€42.80 excl tax

DESCRIPTION



WG24064A is 240x64 graphic LCD display module which is built in RA6963 controller; it communicates via 8080 8-bit parallel interface and negative voltage built in on module.  WG24064A is available in various LED colors including yellow/green, blue, white, red and RGB backlight.  This 240x64 LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

WG24064A 240x64 Graphic LCD, 240x64 LCD Display, 240x64 LCD Module, Display LCD 240x64

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FG Frame ground
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 C/D Data/ Instruction select signal
9 VEE Negative Voltage Output
10 /RESET Controller reset signal, Active Low
11~18 DB0~DB7 Data bus line
19 FS Selection of font; H : 6 * 8 , L : 8 * 8
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 180.0 × 65.0 mm
Viewing Area 133.0 × 39.0 mm
Mounting Hole 176.0 × 54.0 mm
Dot Pitch 0.53 × 0.53 mm
Dot Size 0.49 × 0.49 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 12.5 V


Products specifications
Brand Winstar
Size 5.2"
Resolution 240x64
Active Area (mm) 127.16x33.88
Dot Size 0.49x0.49
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 8080
Display IC Controller RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.2"
Resolution 240x64
Active Area (mm) 127.16x33.88
Dot Size 0.49x0.49
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 8080
Display IC Controller RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
