WG24064J-TMI-VZ#

Graphic LCD 5.2'' 240x64, B/L white, STN blue neg, COB, 5V, Interface 8080, 6 O'clock, VNEG

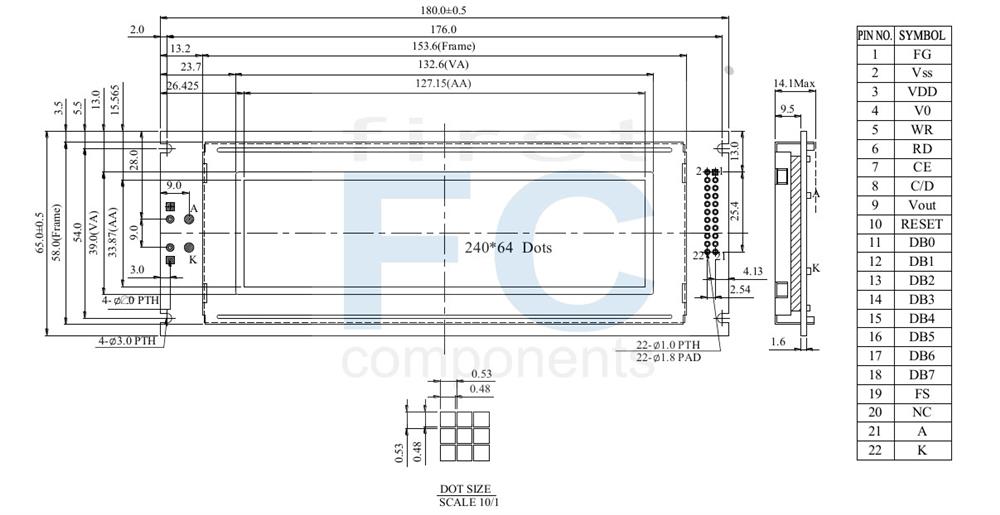

DRAWING

Winstar 240x64 Graphic LCD Display - WG24064J

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FG Frame ground
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 C/D Data/ Instruction select signal
9 VEE Negative Voltage Output
10 /RESET Controller reset signal, Active Low
11~18 DB0~DB7 Data bus line
19 FS Selection of font; H : 6 * 8 , L : 8 * 8
20 NC No connection
21 A Power supply for B/L +
22 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 180.0 × 65.0 mm
Viewing Area 132.6 × 39.0 mm
Mounting Hole 176.0 × 54.0 mm
Dot Pitch 0.53 × 0.53 mm
Dot Size 0.48 × 0.48 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 14.5 V


SKU: WG24064J-TMI-VZ#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€43.90
€36.60
€35.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€43.90 excl tax

DRAWING

Winstar 240x64 Graphic LCD Display - WG24064J

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FG Frame ground
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 C/D Data/ Instruction select signal
9 VEE Negative Voltage Output
10 /RESET Controller reset signal, Active Low
11~18 DB0~DB7 Data bus line
19 FS Selection of font; H : 6 * 8 , L : 8 * 8
20 NC No connection
21 A Power supply for B/L +
22 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 180.0 × 65.0 mm
Viewing Area 132.6 × 39.0 mm
Mounting Hole 176.0 × 54.0 mm
Dot Pitch 0.53 × 0.53 mm
Dot Size 0.48 × 0.48 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 14.5 V


Products specifications
Brand Winstar
Size 5.2"
Resolution 240x64
Active Area (mm) 127.15x33.87
Dot Size 0.48x0.48
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 8080
Display IC Controller RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 22
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 5.2"
Resolution 240x64
Active Area (mm) 127.15x33.87
Dot Size 0.48x0.48
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 8080
Display IC Controller RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 22
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
