WG320240BP3-TMI-V#000

Graphic LCD 5.7'' 320x240, B/L white, STN blue neg, COB, 5V, Interface 6800/8080, 6 O'clock, VNEG, Resistive touch panel

DESCRIPTION



WG320240BP3 is 320x240 monochrome graphics LCD display which is having the module dimension of 160x109 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch.  This monochrome lcd display is built in with S1D13700 controller; it communicates via 6800/8080 8-bit parallel interface; 5V power supply and build in negative voltage generator and temperature compensation optional and touch panel optional.  There are three PCB versions for WG320240BX series:
  • WG320240BX: ZIF connector (CN-FPC), 20 pins
  • WG320240BP2: DIP connection, 20 pins
  • WG320240BP3: with touch panel driver, ZIF connector, 26 pins

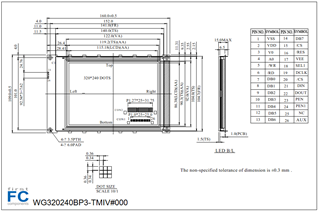

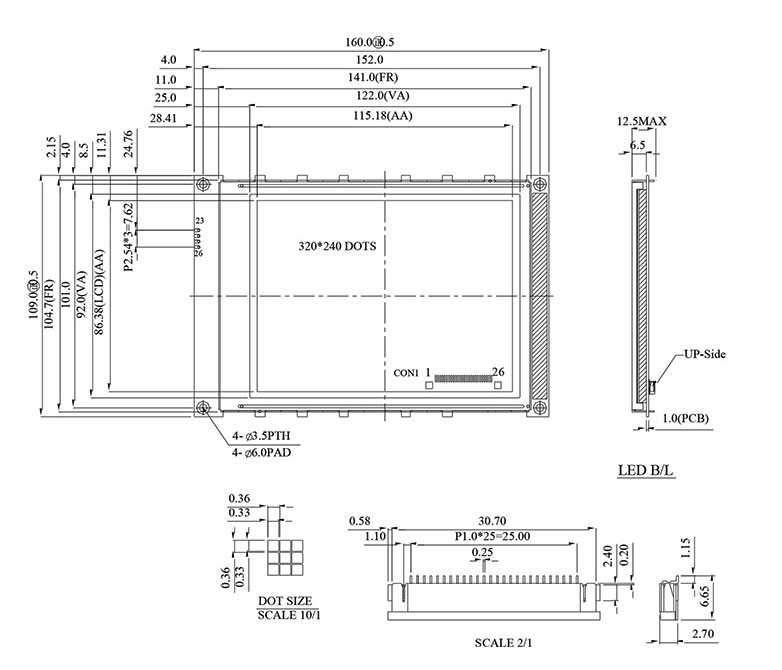

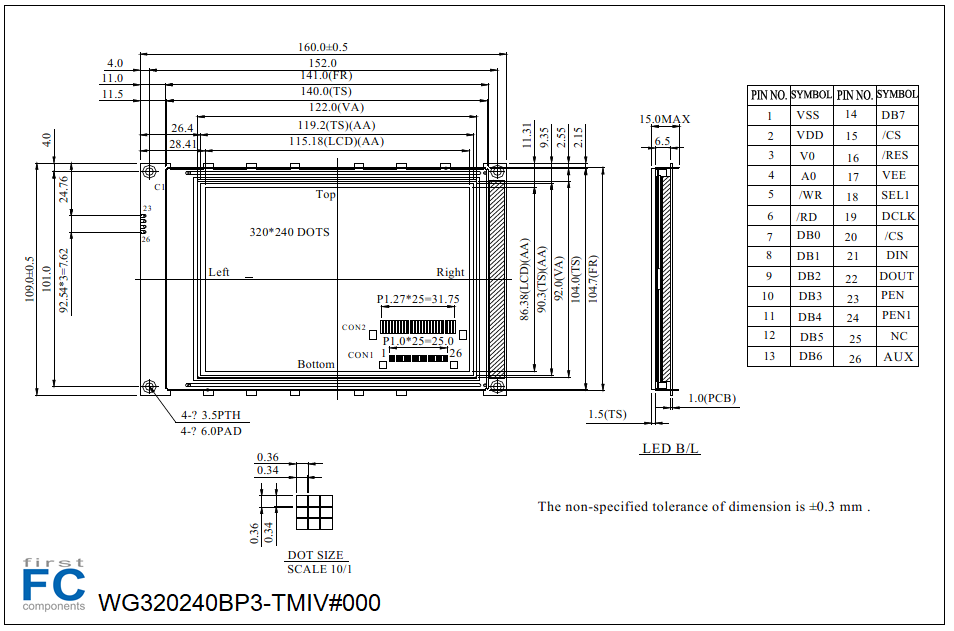

DRAWING

WG320240BP3 - Winstar

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Power supply for Logic
3 VO (Variable) Driving voltage for LCD
4 A0 H/L RD=L WR=H ,A0=L :Data Read AO=H :Status read
RD=H WR=L ,A0=L :Data Write AO=H :Command write
5 ___
WR
H/L 8080 family: Write signal, 6800 family: R/W signal
6 ___
RD
H/L 8080 family: Read signal, 6800 family: Enable clock
7~14 DB0~DB7 H/L Data bus line
15 ___
CS
H/L Chip select ,Active L
16 ___
RES
H/L Controller reset signal, Active L
17 Vee   Negative Voltage Output
18 SEL1   8080 or 6800 interface select
19 DCLK   External Clock Input. This clock runs the SAR conversion process and synchronizes serial data I/O.
20 /CS   Chip Select Input. Controls conversion timing and enables the serial input/output register. CS high = power-down mode (ADC only).
21 DIN   Serial Data Input. If CS is low, data is latched on rising edge of DCLK.
22 DOUT   Serial Data Output. Data is shifted on the falling edge of DCLK. This output is high impedance when CS is high.
23 PEN   Pen Interrupt. Open anode output (requires 10kΩ to 100kΩ pull-up resistor externally).
24 PEN1   Pen Interrupt. Open anode output (requires 10kΩ to 100kΩ pull-up resistor externally).
25 NC   No connection
26 AUX   Auxiliary Input to AD



Mechanical Data

ItemDimensionUnit
Number of dots 320 × 240
Module dimension 160.0 × 109.0 × 12.5(MAX) mm
View area 122.0 × 92.0 mm
Active area 115.18 × 86.38 mm
Dot size 0.33 × 0.33 mm
Dot pitch 0.36 × 0.36 mm
Duty 1/240
Backlight Type LED
IC S1D13700



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 70
Storage Temperature TST -30 80
Input Voltage VIN -0.3 VDD+0.5 V
Output Voltage VOUT -0.3 VDD+0.5 V
Supply Voltage For Logic VDD-VSS 0 6.5 V
Supply Voltage For LCD VDD-V0 0 32 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.5 5.0 5.5 V
Supply Voltage For LCD VDD-V0 Ta=-20℃
Ta=25℃
Ta=70℃

23.0
22.2

23.6
26.1
24.2
V
V
V
Input High Volt. VIH 3.5 V
Input Low Volt. VIL 1.0 V
Output High Volt. VOH VDD-0.4 V
Output Low Volt. VOL 0.4 V
Supply Current IDD VDD=5.0V 65.0 75.0 85.0 mA


SKU: WG320240BP3-TMI-V#000
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€95.80
€84.60
€71.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€95.80 excl tax

DESCRIPTION



WG320240BP3 is 320x240 monochrome graphics LCD display which is having the module dimension of 160x109 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch.  This monochrome lcd display is built in with S1D13700 controller; it communicates via 6800/8080 8-bit parallel interface; 5V power supply and build in negative voltage generator and temperature compensation optional and touch panel optional.  There are three PCB versions for WG320240BX series:
  • WG320240BX: ZIF connector (CN-FPC), 20 pins
  • WG320240BP2: DIP connection, 20 pins
  • WG320240BP3: with touch panel driver, ZIF connector, 26 pins



DRAWING

WG320240BP3 - Winstar

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Power supply for Logic
3 VO (Variable) Driving voltage for LCD
4 A0 H/L RD=L WR=H ,A0=L :Data Read AO=H :Status read
RD=H WR=L ,A0=L :Data Write AO=H :Command write
5 ___
WR
H/L 8080 family: Write signal, 6800 family: R/W signal
6 ___
RD
H/L 8080 family: Read signal, 6800 family: Enable clock
7~14 DB0~DB7 H/L Data bus line
15 ___
CS
H/L Chip select ,Active L
16 ___
RES
H/L Controller reset signal, Active L
17 Vee   Negative Voltage Output
18 SEL1   8080 or 6800 interface select
19 DCLK   External Clock Input. This clock runs the SAR conversion process and synchronizes serial data I/O.
20 /CS   Chip Select Input. Controls conversion timing and enables the serial input/output register. CS high = power-down mode (ADC only).
21 DIN   Serial Data Input. If CS is low, data is latched on rising edge of DCLK.
22 DOUT   Serial Data Output. Data is shifted on the falling edge of DCLK. This output is high impedance when CS is high.
23 PEN   Pen Interrupt. Open anode output (requires 10kΩ to 100kΩ pull-up resistor externally).
24 PEN1   Pen Interrupt. Open anode output (requires 10kΩ to 100kΩ pull-up resistor externally).
25 NC   No connection
26 AUX   Auxiliary Input to AD



Mechanical Data

ItemDimensionUnit
Number of dots 320 × 240
Module dimension 160.0 × 109.0 × 12.5(MAX) mm
View area 122.0 × 92.0 mm
Active area 115.18 × 86.38 mm
Dot size 0.33 × 0.33 mm
Dot pitch 0.36 × 0.36 mm
Duty 1/240
Backlight Type LED
IC S1D13700



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 70
Storage Temperature TST -30 80
Input Voltage VIN -0.3 VDD+0.5 V
Output Voltage VOUT -0.3 VDD+0.5 V
Supply Voltage For Logic VDD-VSS 0 6.5 V
Supply Voltage For LCD VDD-V0 0 32 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.5 5.0 5.5 V
Supply Voltage For LCD VDD-V0 Ta=-20℃
Ta=25℃
Ta=70℃

23.0
22.2

23.6
26.1
24.2
V
V
V
Input High Volt. VIH 3.5 V
Input Low Volt. VIL 1.0 V
Output High Volt. VOH VDD-0.4 V
Output Low Volt. VOL 0.4 V
Supply Current IDD VDD=5.0V 65.0 75.0 85.0 mA


Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.34
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800/8080
Display IC Controller S1D13700
Structure COB
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 26
Pin Pitch 1.27mm
