WH0802A1-TFH-JT#

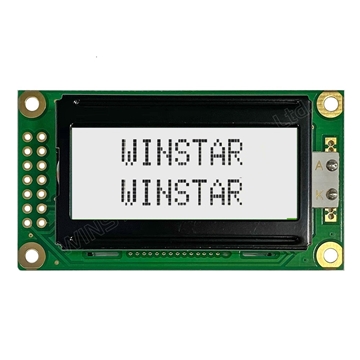

Character LCD 1.2'' 8x2, B/L white, FSTN white pos, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION

WH0802A1 is an 8 character by 2 lines 8x2 character LCD display. It is available in no backlight or with LED backlight options. This 8x2 LCD module is available in various LCD panel colors including gray, yellow/green and blue LCD options.  WH0802A1 LCD module is built in with ST7066 controller (or equivalent).  The ST7066 IC has different language fonts as options, there are English/Japanese, English/Western European, English/ Eastern European, English/Scandinavian European, English/Cyrillic (Russian), and Hebrew/Arabic WH0802A1 model has different interfaces available, it’s default 6800 4/8-bit parallel 6800 interface, also it’s optional SPI and I2C by using RW1063 IC.

There are three interface options for WH0802A1 series, details as below:
►WH0802A1: 6800 interface (ST7066 IC)
►WH0802A2: SPI interface (RW1063 IC)
►WH0802A3: I2C interface (RW1063 IC)

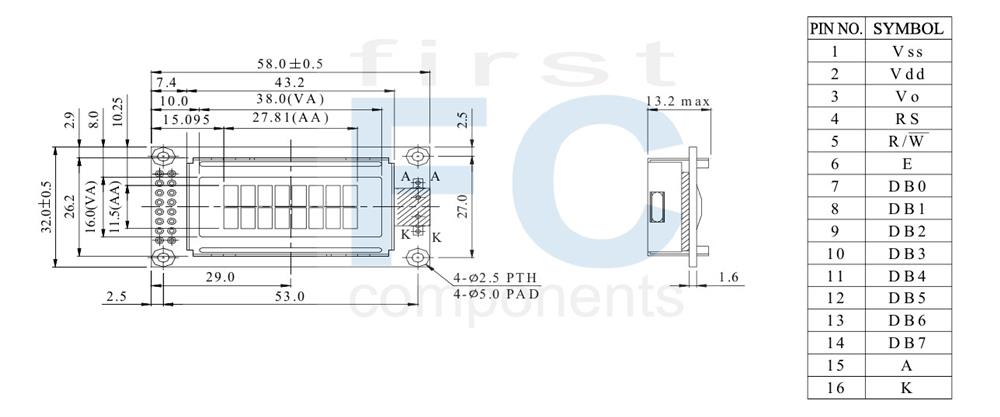

DRAWING

Winstar 8x2 Character LCD, 8x2 LCD Display, 8x2 LCD Module - WH0802A1



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 58.0 × 32.0 mm
Viewing Area 38.0 × 16.0 mm
Mounting Hole 53.0 × 27.0 mm
Character Size 2.96 × 5.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.Version module @25°C
VDD-VO 4.35 V



Display Character Address Code

Display Position12345678
DD RAM Address 00 01           07
DD RAM Address 40 41           47


SKU: WH0802A1-TFH-JT#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€4.40
€3.20
€3.10
€3.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€4.40 excl tax

DESCRIPTION

WH0802A1 is an 8 character by 2 lines 8x2 character LCD display. It is available in no backlight or with LED backlight options. This 8x2 LCD module is available in various LCD panel colors including gray, yellow/green and blue LCD options.  WH0802A1 LCD module is built in with ST7066 controller (or equivalent).  The ST7066 IC has different language fonts as options, there are English/Japanese, English/Western European, English/ Eastern European, English/Scandinavian European, English/Cyrillic (Russian), and Hebrew/Arabic WH0802A1 model has different interfaces available, it’s default 6800 4/8-bit parallel 6800 interface, also it’s optional SPI and I2C by using RW1063 IC.

There are three interface options for WH0802A1 series, details as below:
►WH0802A1: 6800 interface (ST7066 IC)
►WH0802A2: SPI interface (RW1063 IC)
►WH0802A3: I2C interface (RW1063 IC)


DRAWING

Winstar 8x2 Character LCD, 8x2 LCD Display, 8x2 LCD Module - WH0802A1



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 58.0 × 32.0 mm
Viewing Area 38.0 × 16.0 mm
Mounting Hole 53.0 × 27.0 mm
Character Size 2.96 × 5.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.Version module @25°C
VDD-VO 4.35 V



Display Character Address Code

Display Position12345678
DD RAM Address 00 01           07
DD RAM Address 40 41           47


Products specifications
Brand Winstar
Size 1.2"
Resolution 8x2
Active Area (mm) 27.81x11.50
Dot Size 0.56x0.66
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.2"
Resolution 8x2
Active Area (mm) 27.81x11.50
Dot Size 0.56x0.66
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
