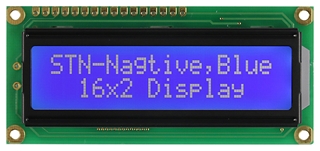

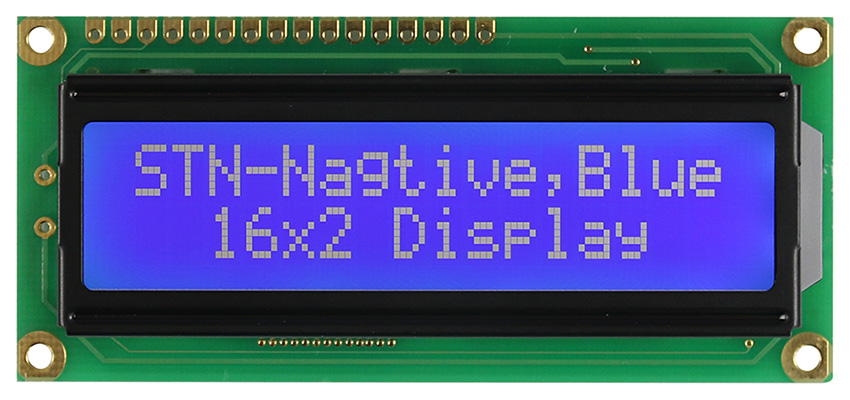

WH1602B-TMI-ETV#

Character LCD 2.3'' 16x2, B/L white, STN blue neg, COB, 3.3V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

Winstar WH1602B is one of the most popular character LCD display module 16x2 types in the market. WH1602B 16x2 LCD display model is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel.

Key Features for WH1602B1/B3 --
  • Two line (2 x 16) characters
  • Power supply:3V
  • Interface:WH1602B1for 4 line SPI, WH1602B3 for I2C
  • Driver: Winstar IC providing high level functions
  • Direct access to low level controller is available for advanced control
  • Space reserved for eight custom characters

There are different interface options for WH1602B series, details as below:
►WH1602B : 6800 interface (ST7066 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B1: SPI interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B2: 6800 interface (ST7066 IC), thickness 10.0 mm
►WH1602B3: I2C interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm


DRAWING

SPECIFICATIONS


Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Character Size 2.95 × 5.55 mm

Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3.3 V

Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01                           0F
DD RAM Address 40 41                           4F


SKU: WH1602B-TMI-ETV#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€6.30
€4.60
€4.50
€4.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€6.30 excl tax

DESCRIPTION

Winstar WH1602B is one of the most popular character LCD display module 16x2 types in the market. WH1602B 16x2 LCD display model is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel.

Key Features for WH1602B1/B3 --
  • Two line (2 x 16) characters
  • Power supply:3V
  • Interface:WH1602B1for 4 line SPI, WH1602B3 for I2C
  • Driver: Winstar IC providing high level functions
  • Direct access to low level controller is available for advanced control
  • Space reserved for eight custom characters

There are different interface options for WH1602B series, details as below:
►WH1602B : 6800 interface (ST7066 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B1: SPI interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B2: 6800 interface (ST7066 IC), thickness 10.0 mm
►WH1602B3: I2C interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm


DRAWING

SPECIFICATIONS


Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Character Size 2.95 × 5.55 mm

Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3.3 V

Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01                           0F
DD RAM Address 40 41                           4F


Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L white, STN blue neg
Power supply 3.3V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L white, STN blue neg
Power supply 3.3V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
