WH1602D-TTI-JT#

Character LCD 2.3'' 16x2, B/L white, FSTN black neg, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION



Winstar WH1602D is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. This display is also available in SPI and I2C interface by using RW1063 controller IC. WH1602D is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white and RGB LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH1602D series, details as below:
►WH1602D : 6800 interface (ST7066 IC)
►WH1602D1 : SPI interface (RW1063 IC)

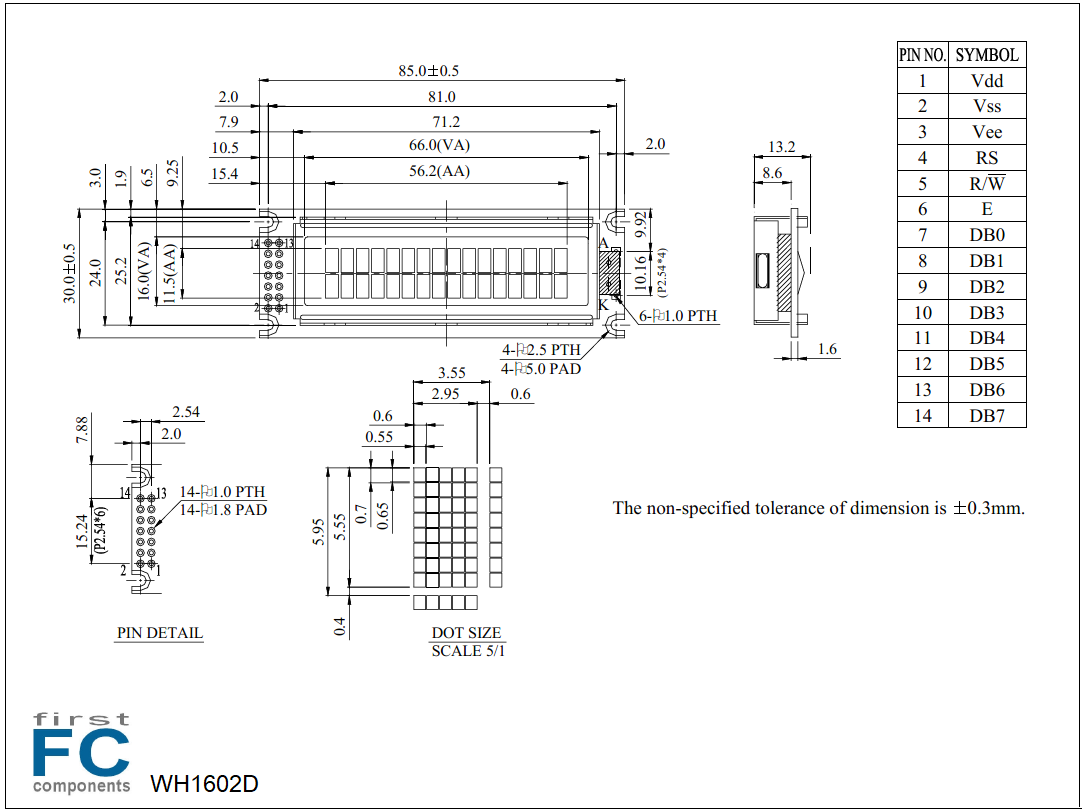

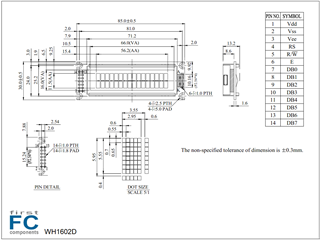

DRAWING

WH1602D Character LCD Display 16x2

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 30.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 81.0 × 24.0 mm
Character Size 2.95 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 3.70 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01                           0F
DD RAM Address 40 41                           4F


SKU: WH1602D-TTI-JT#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€6.70
€4.90
€4.70
€4.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€6.70 excl tax

DESCRIPTION



Winstar WH1602D is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. This display is also available in SPI and I2C interface by using RW1063 controller IC. WH1602D is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white and RGB LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH1602D series, details as below:
►WH1602D : 6800 interface (ST7066 IC)
►WH1602D1 : SPI interface (RW1063 IC)



DRAWING

WH1602D Character LCD Display 16x2

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 30.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 81.0 × 24.0 mm
Character Size 2.95 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 3.70 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01                           0F
DD RAM Address 40 41                           4F


Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L white, FSTN black neg
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
