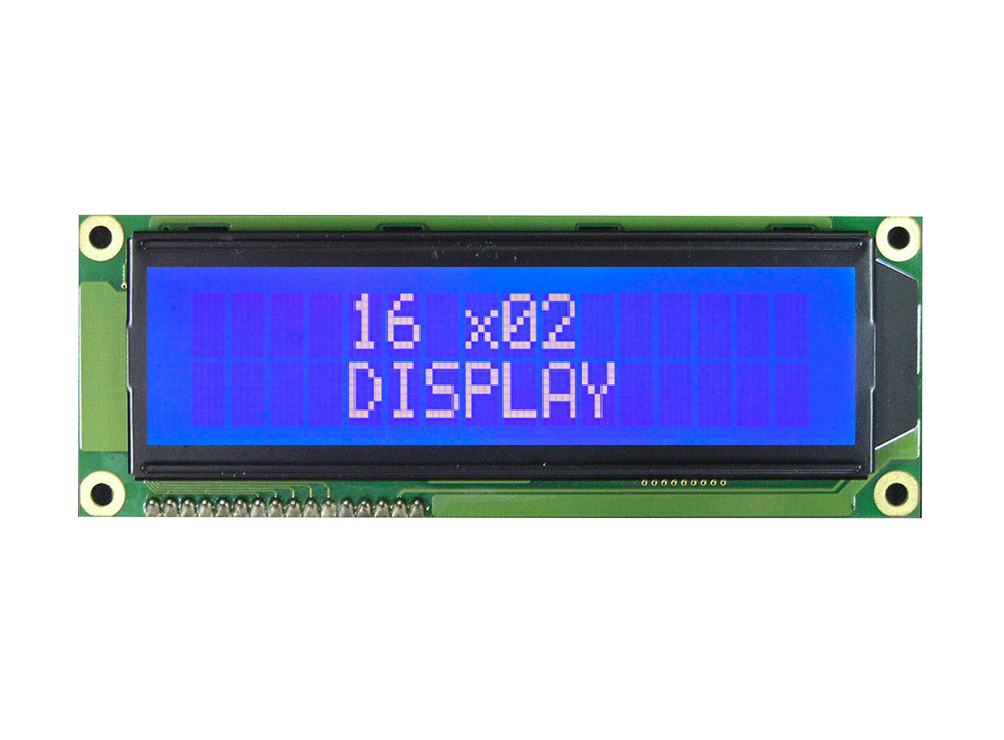

WH1602L-TML-JT#

Character LCD 3.8'' 16x2, B/L white, STN blue neg, COB, 5V, Interface 6800, Font Eng/Jap, 12 O'clock

DESCRIPTION



It is a 16x2 Character Dot Matrix LCD Module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  The WH1602L1 model is negative voltage optional as well. This display is also available in SPI and I2C interface by using RW1063 controller IC. WH1602L1 is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LED. The LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K.

There are different interface options for WH1602L1 series, details as below:
►WH1602L1 : 6800 interface (ST7066 IC)
►WH1602L2 : SPI interface (RW1063 IC)
►WH1602L3 : I2C interface (RW1063 IC)


DRAWING

Winstar WH1602L1 16x2 Character Dot Matrix LCD Module

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 122.0 x 44.0 mm
Viewing Area 99.0 x 24.0 mm
Mounting Hole 115.0 x 37.0 mm
Character Size 4.80 x 8.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.20 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01                           0F
DD RAM Address 40 41                           4F


SKU: WH1602L-TML-JT#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
50+
100+
Price
€10.20
€7.50
€6.30
€5.80
€5.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€10.20 excl tax

DESCRIPTION



It is a 16x2 Character Dot Matrix LCD Module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  The WH1602L1 model is negative voltage optional as well. This display is also available in SPI and I2C interface by using RW1063 controller IC. WH1602L1 is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LED. The LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K.

There are different interface options for WH1602L1 series, details as below:
►WH1602L1 : 6800 interface (ST7066 IC)
►WH1602L2 : SPI interface (RW1063 IC)
►WH1602L3 : I2C interface (RW1063 IC)


DRAWING

Winstar WH1602L1 16x2 Character Dot Matrix LCD Module

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 122.0 x 44.0 mm
Viewing Area 99.0 x 24.0 mm
Mounting Hole 115.0 x 37.0 mm
Character Size 4.80 x 8.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.20 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01                           0F
DD RAM Address 40 41                           4F


Products specifications
Brand Winstar
Size 3.8"
Resolution 16x2
Active Area (mm) 94.84x20.00
Dot Size 0.92x1.10
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800
Built-in Controller ST7066
Structure COB
View Angle 12H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
