WH1602W-TMI-JT#

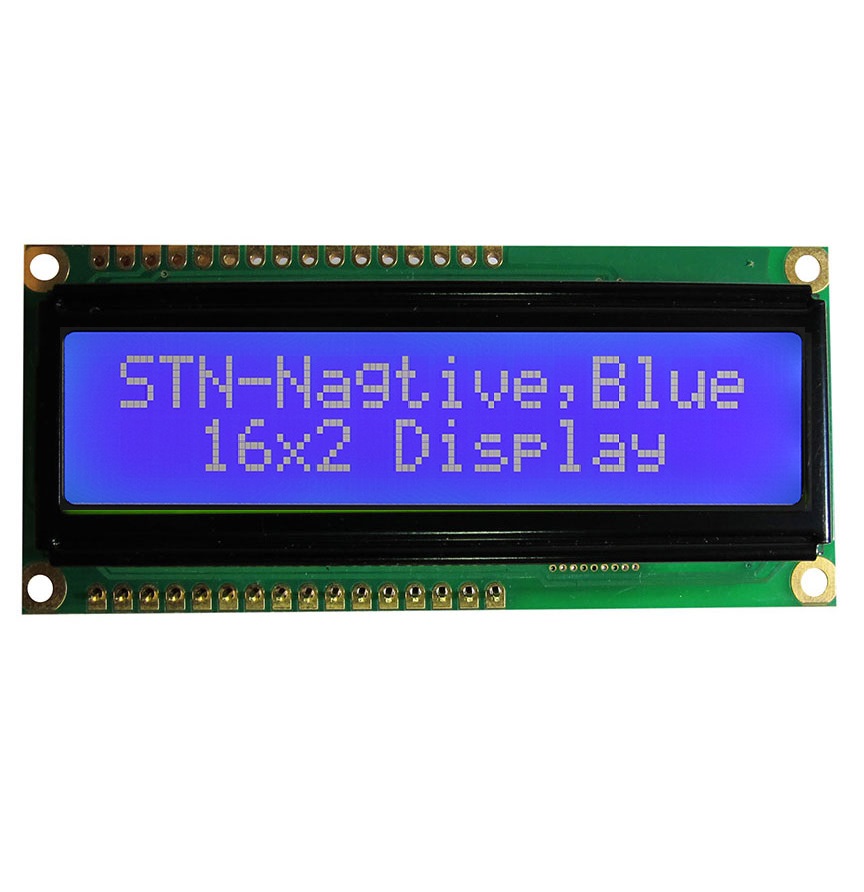

Character LCD 2.3'' 16x2, B/L white, STN blue neg, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION

Winstar 16x2 Character LCD Display WH1602W is having two pinout interfaces on upper and bottom sides of the LCD module. This 16x2 lcd display has outline size 80.0 x 36.0 mm, VA size 66.0 x 16.0 mm and maximum thickness 13.2 mm. WH1602W 16x2 LCD Displays has IC controller ST7066 or equivalent. It is optional for + 5.0 V or + 3.0 V power supply. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.

There are different interface options for WH1602W series, details as below:
►WH1602W  : 6800 interface (ST7066 IC)
►WH1602W1: 6800 interface (ST7066 IC)
►WH1602W2: SPI interface (RW1063 IC)
►WH1602W3: I2C interface (RW1063 IC)

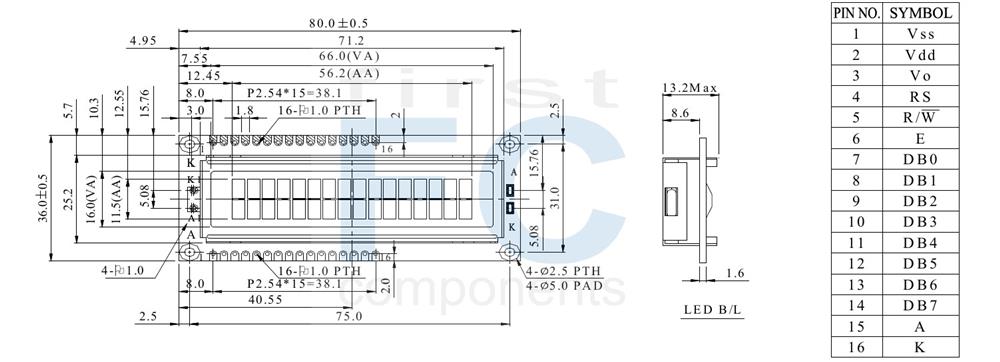

DRAWING

Winstar WH1602W 16x2 Character LCD Display

INTERFACE

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -
SKU: WH1602W-TMI-JT#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
50+
100+
300+
500+
Price
€7.20
€5.30
€4.30
€4.00
€3.70
€3.40
€3.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€7.20 excl tax

DESCRIPTION

Winstar 16x2 Character LCD Display WH1602W is having two pinout interfaces on upper and bottom sides of the LCD module. This 16x2 lcd display has outline size 80.0 x 36.0 mm, VA size 66.0 x 16.0 mm and maximum thickness 13.2 mm. WH1602W 16x2 LCD Displays has IC controller ST7066 or equivalent. It is optional for + 5.0 V or + 3.0 V power supply. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.

There are different interface options for WH1602W series, details as below:
►WH1602W  : 6800 interface (ST7066 IC)
►WH1602W1: 6800 interface (ST7066 IC)
►WH1602W2: SPI interface (RW1063 IC)
►WH1602W3: I2C interface (RW1063 IC)


DRAWING

Winstar WH1602W 16x2 Character LCD Display

INTERFACE

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -
Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800
Built-in Controller ST7066
Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Download
Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800
Built-in Controller ST7066
Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
