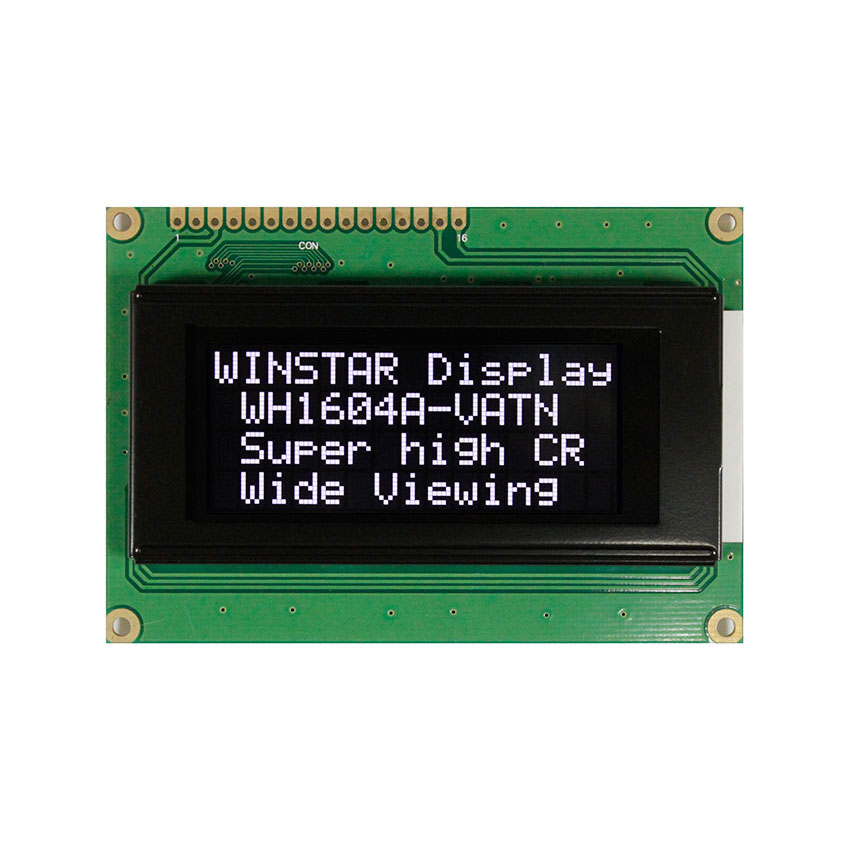

WH1604A-SLL-JWV#

Character LCD 2.4" 16x4, B/L white, VATN, COB, 5V, Interface 6800, 12 O'clock, Font Eng/Jap

DESCRIPTION



The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it's very suitable for many applications.  Below are the examples for reference.
  • Industrial: Automotive application, Digital meter, UPS
  • Medical: medical device & medical equipment
  • Home appliance: audio, coffee machine, microwave oven
  • Automobile: dashboard, car audio

There are three interface options for VATN WH1604A series, details as below:

  • VATN WH1604A: Parallel interface (RW1063 IC)
  • VATN WH1604A1: SPI interface (RW1063 IC)
  • VATN WH1604A2: I2C interface (RW1063 IC)



DRAWING

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 VEE Negative Voltage Output
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 87.0 × 60.0 mm
Viewing Area 62.0 ×26.0 mm
Mounting Hole 82.0 × 55.0 mm
Character Size 2.95 × 4.75 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 6.50 V



Display Character Address Code

Display position12345678910111213141516
DD RAM Address 00 01 　 　 　 　 　 　 　 　 　 　 　 　 　 0F
DD RAM Address 40 41 　 　 　 　 　 　 　 　 　 　 　 　 　 4F
DD RAM Address 10 11 　 　 　 　 　 　 　 　 　 　 　 　 　 1F
DD RAM Address 50 51 　 　 　 　 　 　 　 　 　 　 　 　 　 5F


SKU: WH1604A-SLL-JWV#
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€17.70
€13.00
€12.50
€12.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€17.70 excl tax

DESCRIPTION



The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it's very suitable for many applications.  Below are the examples for reference.
  • Industrial: Automotive application, Digital meter, UPS
  • Medical: medical device & medical equipment
  • Home appliance: audio, coffee machine, microwave oven
  • Automobile: dashboard, car audio

There are three interface options for VATN WH1604A series, details as below:

  • VATN WH1604A: Parallel interface (RW1063 IC)
  • VATN WH1604A1: SPI interface (RW1063 IC)
  • VATN WH1604A2: I2C interface (RW1063 IC)



DRAWING

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 VEE Negative Voltage Output
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 87.0 × 60.0 mm
Viewing Area 62.0 ×26.0 mm
Mounting Hole 82.0 × 55.0 mm
Character Size 2.95 × 4.75 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 6.50 V



Display Character Address Code

Display position12345678910111213141516
DD RAM Address 00 01 　 　 　 　 　 　 　 　 　 　 　 　 　 0F
DD RAM Address 40 41 　 　 　 　 　 　 　 　 　 　 　 　 　 4F
DD RAM Address 10 11 　 　 　 　 　 　 　 　 　 　 　 　 　 1F
DD RAM Address 50 51 　 　 　 　 　 　 　 　 　 　 　 　 　 5F


Products specifications
Brand Winstar
Size 2.4"
Resolution 16x4
Active Area (mm) 56.20x20.80
Dot Size 0.55x0.65
B/L color, LCD type B/L white, VATN
Power supply 5V
Display Interface 6800
Display IC RW1063
Constructive Structure COB
View Angle 12H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 16x4
Active Area (mm) 56.20x20.80
Dot Size 0.55x0.65
B/L color, LCD type B/L white, VATN
Power supply 5V
Display Interface 6800
Display IC RW1063
Constructive Structure COB
View Angle 12H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
