WH1604A-YYH-ETV#

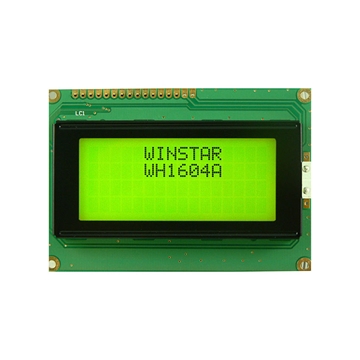

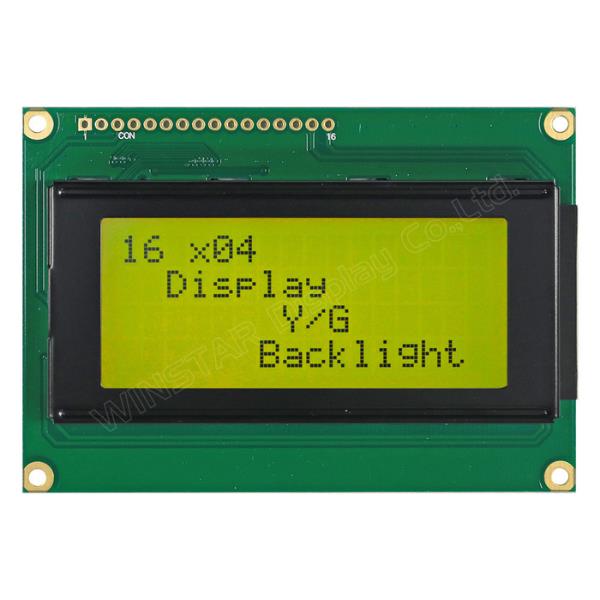

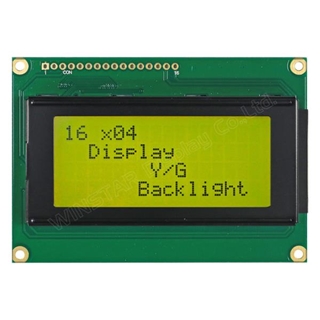

Character LCD 2.4" 16x4, B/L yellow/green, STN yellow/green pos, Transflective, COB, 3.3V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

Winstar's WH1604A is a character LCD 16x4 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel, 5V power supply. These LCD display 16x4 modules are also available in SPI and I2C interface by using RW1063 controller IC. The WH1604A display LCD 16x4 series is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LEDs.

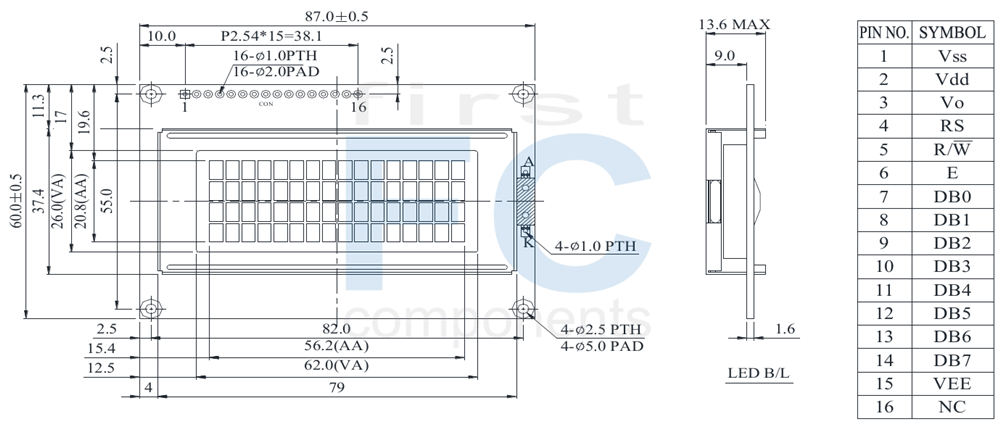

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	VO	(Variable)	Operating voltage for LCD
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read L: Write
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line
15	VEE	－	Negative Voltage Output
16	NC	－	NC

Mechanical Data

Item	Dimension	Unit
Number of Characters	16 Characters x 4 Lines	－
Module dimension	87.0 x 60.0 x 13.6 (MAX)	mm
View area	62.0 x 26.0	mm
Active area	56.2 x 20.8	mm
Dot size	0.55 x 0.55	mm
Dot pitch	0.60 x 0.60	mm
Character size	2.95 x 4.75	mm
Character pitch	3.55 x 5.35	mm
Duty	1/16
Backlight Type	LED
IC	ST7066U
Interface	6800

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VI	VSS	－	VDD	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	7	V
Supply Voltage For LCD	VDD-Vo	-0.3	－	13	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	3.0	3.3	3.6	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 4.2 3.9	－ 4.35 －	5.2 4.5 －	V V V
Input High Volt.	VIH	－	0.7 VDD	－	VDD	V
Input Low Volt.	VIL	－	Vss	－	0.6	V
Output High Volt.	VOH	－	0.7 VDD	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.2 VDD	V
Supply Current	IDD	VDD=5.0V	1.2	1.5	2.0	mA
