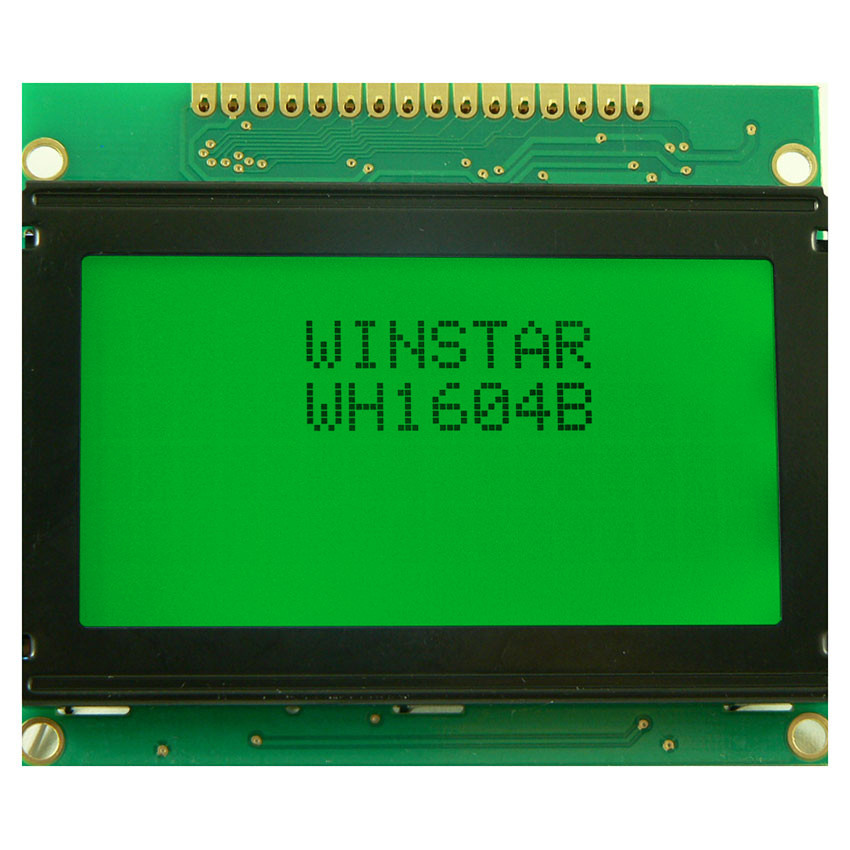

WH1604B-YYH-ETV#

Character LCD 2.4" 16x4, B/L yellow/green, STN yellow/green pos, Transflective, COB, 3.3V, Interface 6800, Font Eng/Eu, 6 O'clock

DRAWING

SKU: WH1604B-YYH-ETV#

Brand: Winstar

Available: Yes

Accessory Kit

Price Breaks

Quantity

10+

25+

Price

€13.30

€9.70

€9.40

€9.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€13.30 excl tax

Products specifications

Brand	Winstar
Size	2.4"
Resolution	16x4
Active Area (mm)	56.20x20.80
Dot Size	0.55x0.55
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	3.3V
Display Interface	6800
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
