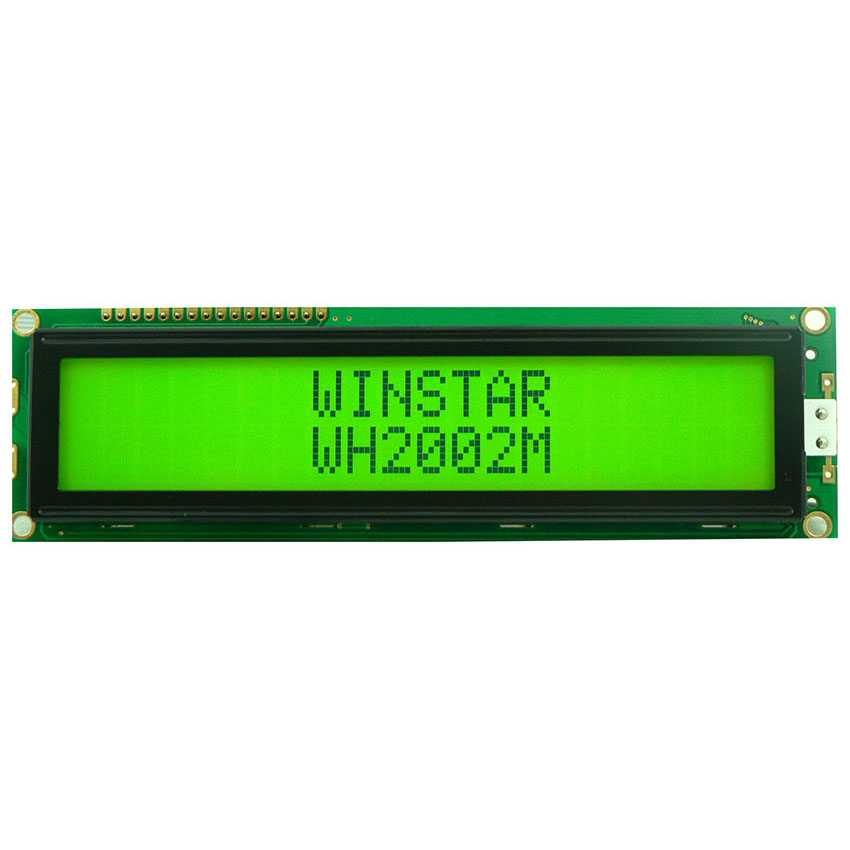

WH2002M-YYH-JT#

Character LCD 4.7'' 20x2, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION



WH2002M is a 20x2 Character LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  These 20x2 LCD display modules are also available in SPI and I2C interface by using RW1063 controller IC. This type of module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.  WH2002M is available in several different backlight colors including blue, green, yellow-green, amber, red and white LEDs. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K.  There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.


DRAWING

Winstar WH2002M 20x2 Character LCD Modules



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 146.0 × 43.0 mm
Viewing Area 123.0 × 23.0 mm
Mounting Hole 139.0 × 36.0 mm
Character Size 4.84 × 9.22 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.50 V



Display Character Address Code

Display Position12345678910111213------20
DD RAM Address 00 01                           13
DD RAM Address 40 41                           53


SKU: WH2002M-YYH-JT#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.50
€11.30
€10.90
€10.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€15.50 excl tax

DESCRIPTION



WH2002M is a 20x2 Character LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  These 20x2 LCD display modules are also available in SPI and I2C interface by using RW1063 controller IC. This type of module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.  WH2002M is available in several different backlight colors including blue, green, yellow-green, amber, red and white LEDs. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K.  There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.


DRAWING

Winstar WH2002M 20x2 Character LCD Modules



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 146.0 × 43.0 mm
Viewing Area 123.0 × 23.0 mm
Mounting Hole 139.0 × 36.0 mm
Character Size 4.84 × 9.22 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.50 V



Display Character Address Code

Display Position12345678910111213------20
DD RAM Address 00 01                           13
DD RAM Address 40 41                           53


Products specifications
Brand Winstar
Size 4.7"
Resolution 20x2
Active Area (mm) 118.84x18.97
Dot Size 0.92x1.10
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.7"
Resolution 20x2
Active Area (mm) 118.84x18.97
Dot Size 0.92x1.10
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
