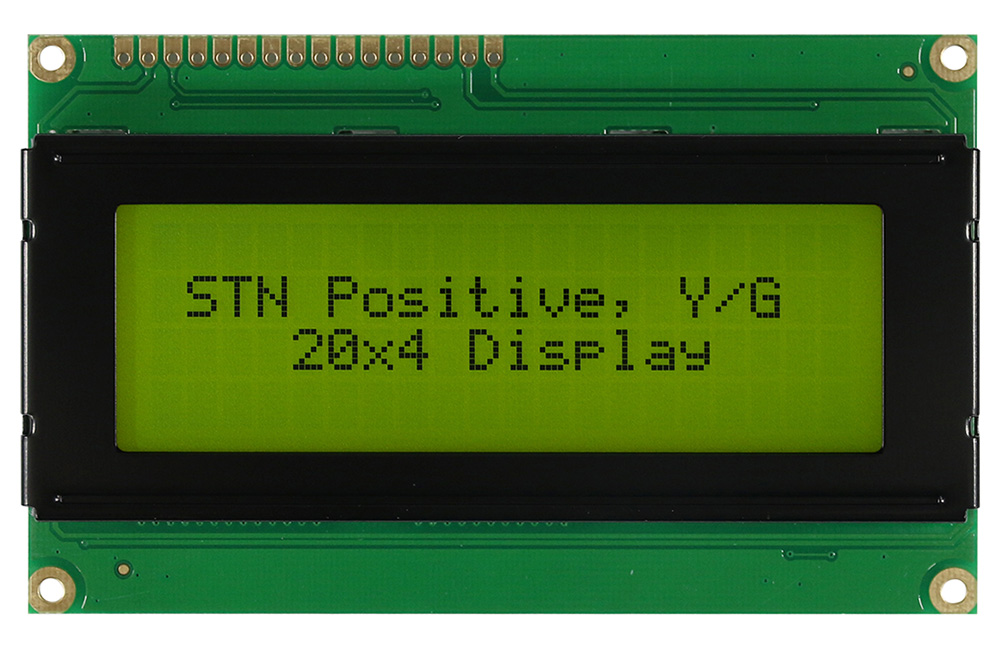

WH2004A-YYK-JT#030
WH2004A-YYK-JT#030
Character LCD 2.9'' 20x4, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 6800, Font Eng/Jap, 12 O'clock, Waterproof PCB
DESCRIPTION
Winstar WH2004A is a Character LCD 20x4 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. These 20x4 LCD modules are also available in SPI and I2C interface by using RW1063 controller IC. WH2004A is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white, and RGB LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.
There are different interface options for WH2004A series, details as below:
►WH2004A : 6800 interface (ST7066 IC)
►WH2004A1 : SPI interface (RW1063 IC)
►WH2004A2 : I2C interface (RW1063 IC)
DRAWING
SPECIFICATIONS
Interface Pin Function
WH2004A
Pin No.
Symbol
Description
1
V
SS
Ground
2
V
DD
Power supply for logic
3
V
O
Contrast Adjustment
4
RS
Data/ Instruction select signal
5
R/W
Read/Write select signal
6
E
Enable signal
7~14
DB0~DB7
Data bus line
15
A
Power supply for B/L +
16
K
Power supply for B/L -
Mechanical Data
Item
Standard Value
Unit
Module Dimension
98.0 × 60.0
mm
Viewing Area
77.0 × 25.2
mm
Mounting Hole
93.0 × 55.0
mm
Character Size
2.95 × 4.75
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
3/5
V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
4.50
V
Display Character Address Code
Display Position
1
2
3
4
5
6
7
8
9
10
11
12
13
---
---
20
DD RAM Address
00
01
02
13
DD RAM Address
40
41
42
53
DD RAM Address
14
15
16
27
DD RAM Address
54
35
56
67
SKU:
WH2004A-YYK-JT#030
Brand:
Winstar
Be the first to review this product
Overview
Specifications
Download
Contact Us
DESCRIPTION
Winstar WH2004A is a Character LCD 20x4 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. These 20x4 LCD modules are also available in SPI and I2C interface by using RW1063 controller IC. WH2004A is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white, and RGB LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.
There are different interface options for WH2004A series, details as below:
►WH2004A : 6800 interface (ST7066 IC)
►WH2004A1 : SPI interface (RW1063 IC)
►WH2004A2 : I2C interface (RW1063 IC)
DRAWING
SPECIFICATIONS
Interface Pin Function
WH2004A
Pin No.
Symbol
Description
1
V
SS
Ground
2
V
DD
Power supply for logic
3
V
O
Contrast Adjustment
4
RS
Data/ Instruction select signal
5
R/W
Read/Write select signal
6
E
Enable signal
7~14
DB0~DB7
Data bus line
15
A
Power supply for B/L +
16
K
Power supply for B/L -
Mechanical Data
Item
Standard Value
Unit
Module Dimension
98.0 × 60.0
mm
Viewing Area
77.0 × 25.2
mm
Mounting Hole
93.0 × 55.0
mm
Character Size
2.95 × 4.75
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
3/5
V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
4.50
V
Display Character Address Code
Display Position
1
2
3
4
5
6
7
8
9
10
11
12
13
---
---
20
DD RAM Address
00
01
02
13
DD RAM Address
40
41
42
53
DD RAM Address
14
15
16
27
DD RAM Address
54
35
56
67
Products specifications
Brand
Winstar
Size
2.9"
Resolution
20x4
Active Area (mm)
70.40x20.80
Dot Size
0.55x0.55
B/L color, LCD type
B/L yellow/green, STN yellow/green pos
Power supply
5V
Display Interface
6800
Display IC Controller
ST7066
Structure
COB
View Angle
12H
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
16
Pin Pitch
2.54mm
Preferred - Not Preferred
Not Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Winstar
Size
2.9"
Resolution
20x4
Active Area (mm)
70.40x20.80
Dot Size
0.55x0.55
B/L color, LCD type
B/L yellow/green, STN yellow/green pos
Power supply
5V
Display Interface
6800
Display IC Controller
ST7066
Structure
COB
View Angle
12H
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
16
Pin Pitch
2.54mm
Preferred - Not Preferred
Not Preferred
