WH2004D-TFH-JT#

Character LCD 2.3'' 20x4, B/L white, FSTN white pos, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION



WH2004D series are 20x4 character display modules which are built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. The LCD module 20x4 displays are also available in SPI and I2C interface by using RW1063 controller IC. WH2004D is available in several different backlight colors including blue, green, white, yellow-green, amber, red and white LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH2004D series, details as below:
►WH2004D : 6800 interface (ST7066 IC)
►WH2004D1 : SPI interface (RW1063 IC)
►WH2004D2 : I2C interface (RW1063 IC)


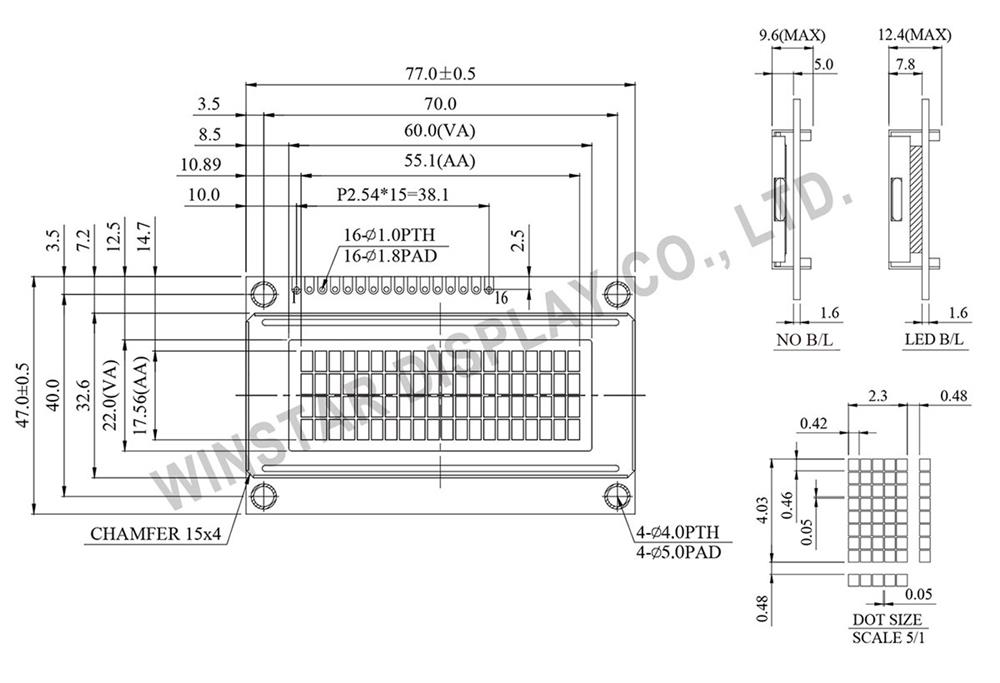

DRAWING

WH2004D Character Display Modules, LCD Module 20x4, Display LCD 20x4

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction  select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 77.0 × 47.0 mm
Viewing Area 60.0 × 22.0 mm
Mounting Hole 70.0 × 40.0 mm
Character Size 2.30 × 4.03 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.50 V



Display Character Address Code

Display Position12345678910111213------20
DD RAM Address 00 01                           13
DD RAM Address 40 41                           53

DD RAM Address 14 15                           27
DD RAM Address 54 35                           67


SKU: WH2004D-TFH-JT#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€11.80
€8.60
€8.30
€8.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€11.80 excl tax

DESCRIPTION



WH2004D series are 20x4 character display modules which are built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. The LCD module 20x4 displays are also available in SPI and I2C interface by using RW1063 controller IC. WH2004D is available in several different backlight colors including blue, green, white, yellow-green, amber, red and white LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH2004D series, details as below:
►WH2004D : 6800 interface (ST7066 IC)
►WH2004D1 : SPI interface (RW1063 IC)
►WH2004D2 : I2C interface (RW1063 IC)


DRAWING

WH2004D Character Display Modules, LCD Module 20x4, Display LCD 20x4

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction  select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 77.0 × 47.0 mm
Viewing Area 60.0 × 22.0 mm
Mounting Hole 70.0 × 40.0 mm
Character Size 2.30 × 4.03 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.50 V



Display Character Address Code

Display Position12345678910111213------20
DD RAM Address 00 01                           13
DD RAM Address 40 41                           53

DD RAM Address 14 15                           27
DD RAM Address 54 35                           67


Products specifications
Brand Winstar
Size 2.3"
Resolution 20x4
Active Area (mm) 55.10x17.56
Dot Size 0.42x0.46
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
