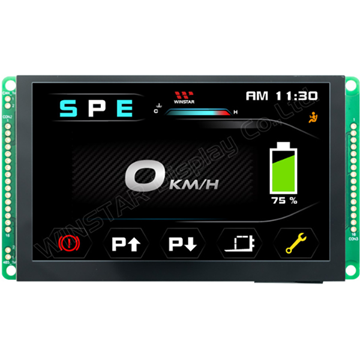

WWSSDEMO50F-AA-33#000

Eval Kit for TFT 5" 800x480, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO function, High Brightness 750cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)

DESCRIPTION

Smart Display Demo set list:

1. Leaflet

2. Smart Display

3. USB2CAN Dongle

4. USB to MicroUSB Cable

5. Short Cable between USB2CAN and Smart Display



NEW 2nd generation 5” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.



  1.        Self testing after booting function.
  2.        CAN bus communication interface.
  3.        Support Custom CAN ID protocol, default baud rate is 250KB.
  4.        Built in 16M external flash memory to store the font and Object Dictionary Data.
  5.        Supports GPIO functions.
  6.        Support capacitive touch panel (CTP).
  7.        Build in buzzer and can be controlled by Master Device.

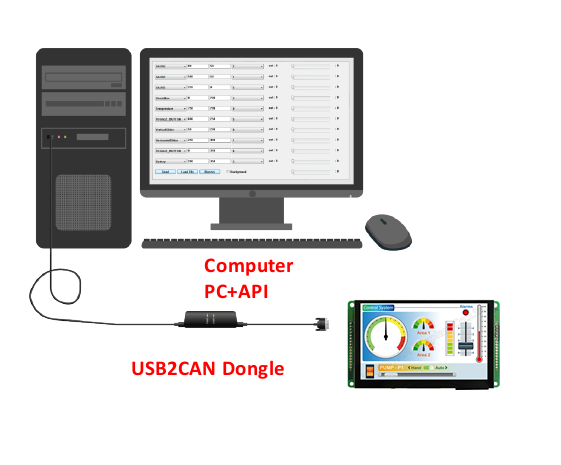

  8.        Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  9.        Smart Display scenario is slave device and controlled by Master Device’s instruction.
  10.        Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)



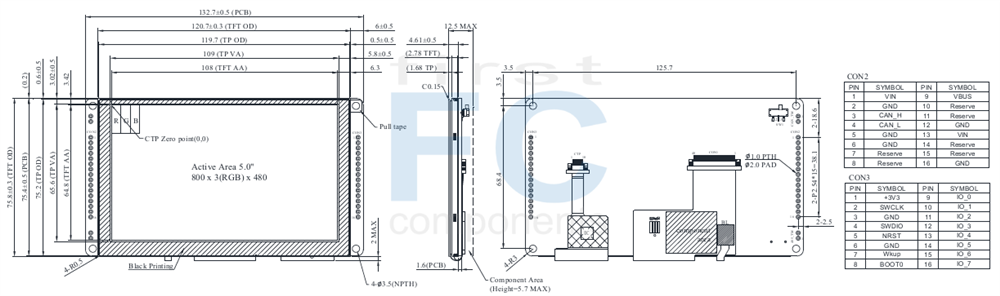

DRAWING

DESCRIPTION

Product information

General information

Item

Standard Value

Unit

Operating voltage

12

Vdc

Communication Interface

CAN Bus

--

MCU

STM32F750

N/A

Flash Memory

16

MB

LCD display size

5.0

inch

Dot Matrix

800× 3(RGB) × 480

dot

Module dimension

132.7(W) ×75.8(H) ×12.5

mm

Active area

108(W) ×64.8 (H)

mm

Pixel pitch

0.135(W) ×0.135(H)

mm

Brightness

Min: 300; Typ: 400

cd/m2

LCD type

TFT, Normally White, Transmissive

View Direction

80/80/80/80

Aspect Ratio

5:3

With /Without TP

With CTP

Surface

Glare



Interface

CON2 definition:

Pin

Symbol

Function

Remark

1

VIN

Power supply 5V to 28V input

Input

2

GND

Power supply GND input

Input

3

CAN_H

CAN bus D+

I/O

4

CAN_L

CAN bus D-

I/O

5

GND

Power supply GND input

GND

6

GND

Power supply GND input

GND

7

Reserve

-

-

8

Reserve

-

-

9

VBUS

Power supply 5V input

Input

10

Reserve

-

-

11

Reserve

-

-

12

GND

Power supply GND input

Input

13

VIN

Power supply 5V to 28V input

Input

14

Reserve



-

15

Reserve

-

-

16

GND

Power supply GND input

Input



CON3 definition:

Pin

Symbol

Function

Remark

1

+3V3

3.3V power for Jtag INTERFACE

Output

2

JTAG_SWCLK

CLK pink for JTAG interface

Input

3

GND

GND for JTAG interface

Output

4

JTAG_SWDIO

Data pin for JTAG interface

I/O

5

NRST

Reset pin for JTAG interface

Input

6

GND

GND

Output

7

WKUP

WKup,ADC,Timer, Event, I/O

TLT signal voltage is 3.3V

8

BOOT0

Lo: Internal flash boot (Default)

Hi: External flash boot

TLT signal voltage is 3.3V

9

IO0

ADC, DAC, Timer, Event, I/O

TLT signal voltage is 3.3V

10

1O1

ADC, timer, Event, I/O

TLT signal voltage is 3.3V

11

1O2

ADC, timer, Event, I/O

TLT signal voltage is 3.3V

12

1O3

RST, Timer, Event, I/O

TLT signal voltage is 3.3V

13

104

RST, Timer, Event, I/O

TLT signal voltage is 3.3V

14

105

 ADC, timer, Event, I/O

TLT signal voltage is 3.3V

15

106

RST, Timer, Event, I/O

TLT signal voltage is 3.3V

16

107

RST, Timer, Event, I/O

TLT signal voltage is 3.3V



Absolute Maximum Ratings:

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-30

-

+80

°C

Storage Temperature

TST

-30

-

+80

°C



Electrical Characteristics:

Item

Symbol

Min

Typ

Max

Unit

Supply Voltage

VCC

5

12

28

V

Supply Current

ICC

 610

240

 110

mA

I/O pin Voltage

--

--

--

3.3

V



BOM:

Item

Description

Remark

LCM

WF50-800480FD#0PW3-FC



PCBA

SV10005R000FG00N0100





Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection

Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC



Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01



Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01
