WH4004A-YGH-CT#

Character LCD 5.6'' 40x4, B/L yellow/green, STN gray pos, COB, 5V, Interface 6800, Font Eng/Cyr, 6 O'clock

DESCRIPTION



Winstar WH4002A is 40 characters by 2 rows of 40x2 LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel and 5V or 3.3V power supply optional. This display LCD 40x2 model WH4002A is available for without backlight or with LED backlight options. This LCD display 40x2 is available in various LCD panel colors including gray, yellow/green and blue LCD options. This display LCD 40x2 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃, its built in character set supports English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) options.


There are different interface options for WH4002A series, details as below:
►WH4002A : 6800 interface (ST7066 IC)
►WH4002A1 : SPI interface (RW1063 IC)
►WH4002A2 : I2C interface (RW1063 IC)



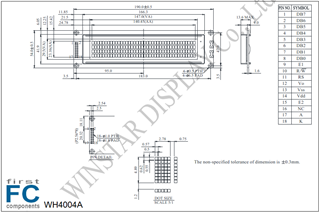

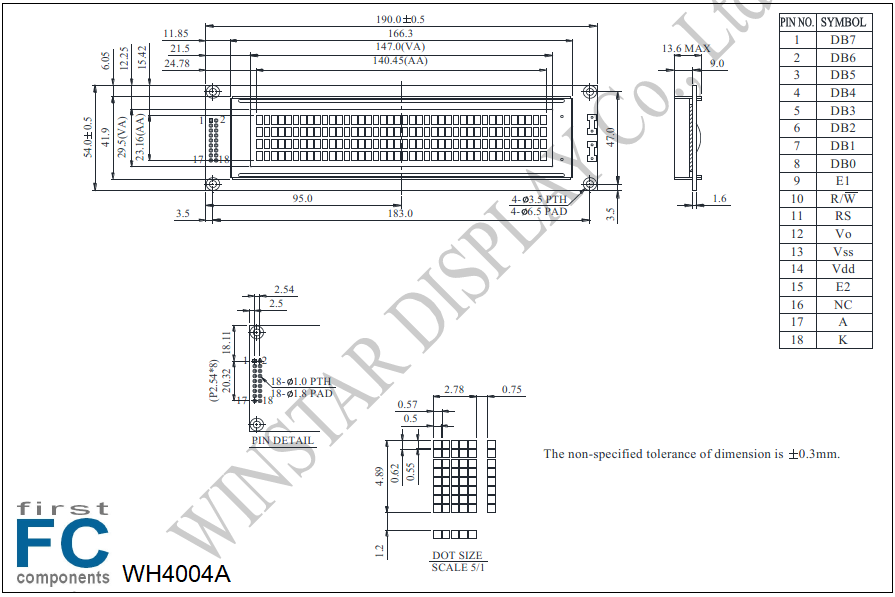

DRAWING

WH4002A Character Display LCD 40x2, LCD 40x2, 40x2 LCD, 40x2 LCD Display, Display 40x2

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 182.0 × 33.5 mm
Viewing Area 154.4 × 16.5 mm
Mounting Hole 175.0 × 26.5 mm
Character Size 3.2 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.50 V



Display Character Address Code

Display Position123456789101112------3940
DD RAM Address 00 01                           27
DD RAM Address 40 41                           67


SKU: WH4004A-YGH-CT#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€20.60
€16.50
€15.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€20.60 excl tax

DESCRIPTION



Winstar WH4002A is 40 characters by 2 rows of 40x2 LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel and 5V or 3.3V power supply optional. This display LCD 40x2 model WH4002A is available for without backlight or with LED backlight options. This LCD display 40x2 is available in various LCD panel colors including gray, yellow/green and blue LCD options. This display LCD 40x2 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃, its built in character set supports English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) options.


There are different interface options for WH4002A series, details as below:
►WH4002A : 6800 interface (ST7066 IC)
►WH4002A1 : SPI interface (RW1063 IC)
►WH4002A2 : I2C interface (RW1063 IC)



DRAWING

WH4002A Character Display LCD 40x2, LCD 40x2, 40x2 LCD, 40x2 LCD Display, Display 40x2

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 182.0 × 33.5 mm
Viewing Area 154.4 × 16.5 mm
Mounting Hole 175.0 × 26.5 mm
Character Size 3.2 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.50 V



Display Character Address Code

Display Position123456789101112------3940
DD RAM Address 00 01                           27
DD RAM Address 40 41                           67


Products specifications
Brand Winstar
Size 5.6"
Resolution 40x4
Active Area (mm) 140.45x23.16
Dot Size 0.50x0.55
B/L color, LCD type B/L yellow/green, STN gray pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 18
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.6"
Resolution 40x4
Active Area (mm) 140.45x23.16
Dot Size 0.50x0.55
B/L color, LCD type B/L yellow/green, STN gray pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 18
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
