    WL0F00043000WGXAANA00-FC

    TFT 4.3" 480x272, Multi-Interface Development System, MCU STM32U599, 400cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)
    Manufacturer: Winstar
    SKU: WL0F00043000WGXAANA00-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €58.40
    €52.60
    €49.40

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €58.40 excl tax
    i h

    DESCRIPTION

    4.3-inch HMI Display Development Board

    WL0F00043000WGXAANA00-FC is a 4.3-inch HMI display development board designed for engineers developing industrial control and graphical user interface applications. The board integrates a 4.3-inch IPS TFT LCD module with capacitive touch and a high-performance STM32U599ZIT6 MCU, providing a ready-to-use hardware platform for rapid HMI prototyping and system evaluation.

    The display features 480×272 resolution, wide viewing angles (80/80/80/80), and typical brightness of 400 cd/m², delivering clear and stable visual performance for control panels and embedded interfaces. The integrated capacitive touch panel communicates through an I²C interface for responsive user interaction.

    Powered by the ultra-low-power STM32U599 series MCU, the MCU integrates 2MB Flash and approximately 2.5MB SRAM, along with a built-in GPU2D accelerator and LTDC display controller for efficient GUI rendering. An additional 16MB external serial flash provides storage for fonts, images, and other graphical resources used in HMI applications.

    The board supports multiple communication interfaces including RS485, UART, SPI, I²C, and USB Type-C (USB 2.0 OTG), along with a Micro SD card slot and wide input voltage support (5–28V DC). The platform is compatible with the STM32 development ecosystem including STM32CubeMX, STM32CubeIDE, STM32CubeProgrammer, and TouchGFX Designer, enabling developers to efficiently design graphical interfaces and integrate the board into embedded systems.



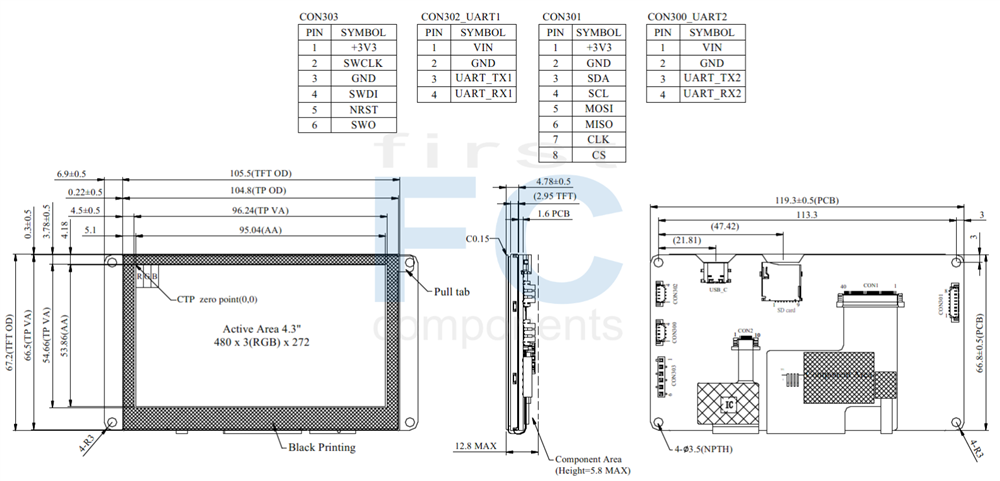

    DRAWING

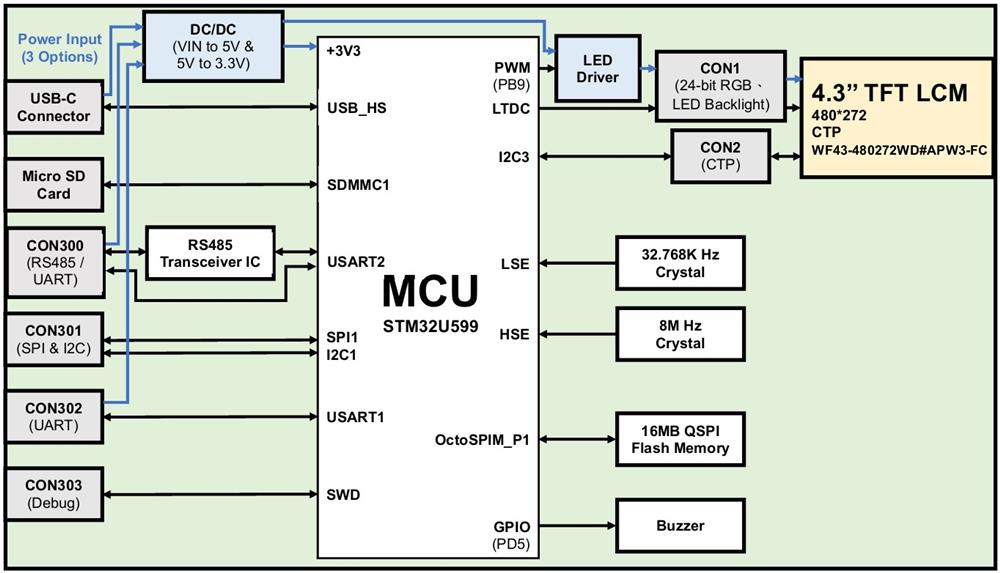

    Block diagram


    SPECIFICATIONS

    General Specifications

    ItemStandard ValueUnit
    Operating voltage 5-28 VDC
    Communication Interface USB-C -
    Micro SD Card -
    CON300 Option for RS485, UART -
    CON301 SPI -
    I²C -
    CON302 UART -
    MCU STM32U599ZIT6
    (2MB Flash, 2.5MB RAM)
    -
    External Flash Memory 16 MB
    LCD display size 4.3 inch
    Dot Matrix 480 × R.G.B. × 272 (TFT) dots
    Module dimension 119.3(W) × 67.2(H) ×12.8(D) mm
    Active area 95.04(W) × 53.856(H) mm
    Pixel pitch 0.198(H) × 0.198(V) mm
    Brightness Min: 300; Typ: 400 cd/m2
    LCD type  TFT, Normally Black, Transmissive
    View Direction 80/80/80/80
    Aspect Ratio 16:9
    Touch Panel Capacitive Touch Panel
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃
    Supply Voltage VIN - - 28 V

    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Supply Voltage VIN 5 12 28 V
    Supply Current ICC - 120 - mA



    BOM

    ItemDescription
    LCM WF43-480272WD#APW3-FC
    PCBA SV10004R300WC00N0100



    Interface Pin Function

    CON300 (RS485 / UART) Definition:

    PinSymbolFunctionRemark
    1 VIN Power supply input; 5V ~ 28V Power
    2 GND Ground Power
    3 RS485_A / UART_TX2 USART2_TX I/O
    4 RS485_B / UART_RX2 USART2_RX I/O


    CON301 (SPI & I2C) Definition:

    PinSymbolFunctionRemark
    1 +3V3 Power input Power
    2 GND Ground Power
    3 SDA I2C1_SDA I/O
    4 SCL I2C1_SCL I/O
    5 MOSI SPI1_MOSI I/O
    6 MISO SPI1_MISO I/O
    7 CLK SPI1_CLK I/O
    8 CS SPI1_CS I/O


    CON302 (UART) Definition:

    PinSymbolFunctionRemark
    1 VIN Power supply input; 5V ~ 28V Power
    2 GND Ground Power
    3 UART_TX1 USART1_TX I/O
    4 UART_RX1 USART1_RX I/O


    CON303 (SWD) Definition:

    PinSymbolFunctionRemark
    1 +3V3 Power input Power
    2 SWCLK Serial wire clock I/O
    3 GND Ground Power
    4 SWDIO Serial wire debug data input/output I/O
    5 NRST Reset Input
    6 SWO Serial wire trace output Output
    Products specifications
    Size 4.3"
    Resolution 480x272
    Active Area (mm) 95.04x53.85
    Color Full Color
    Power supply 12V
    Display Interface RS485 // UART // USB // I2C // SPI // SD
    Display IC STM32U599
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
