WL0F00050000FGAAESA00-FC

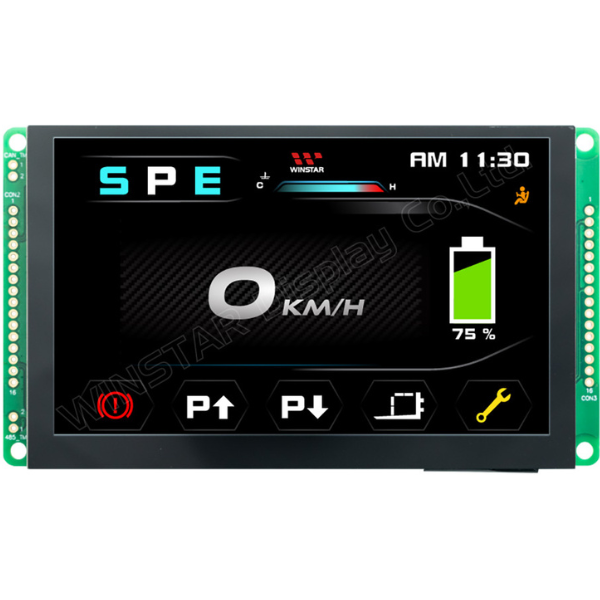

TFT 5" 800x480, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO Support, 400cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)

DESCRIPTION

NEW 2^nd generation 5” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.

Self testing after booting function.
CAN bus communication interface.
Support Custom CAN ID protocol, default baud rate is 250KB.
Built in 16M external flash memory to store the font and Object Dictionary Data.
Supports GPIO functions.
Support capacitive touch panel (CTP).
Build in buzzer and can be controlled by Master Device.
Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
Smart Display scenario is slave device and controlled by Master Device’s instruction.
Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)

DRAWING

DESCRIPTION

Product information

General information

Item	Standard Value	Unit
Operating voltage	12	Vdc
Communication Interface	CAN Bus	--
MCU	STM32F750	N/A
Flash Memory	16	MB
LCD display size	5.0	inch
Dot Matrix	800× 3(RGB) × 480	dot
Module dimension	132.7(W) ×75.8(H) ×12.5	mm
Active area	108(W) ×64.8 (H)	mm
Pixel pitch	0.135(W) ×0.135(H)	mm
Brightness	Min: 300; Typ: 400	cd/m²
LCD type	TFT, Normally White, Transmissive
View Direction	80/80/80/80
Aspect Ratio	5:3
With /Without TP	With CTP
Surface	Glare

Interface

CON2 definition:

Pin	Symbol	Function	Remark
1	VIN	Power supply 5V to 28V input	Input
2	GND	Power supply GND input	Input
3	CAN_H	CAN bus D+	I/O
4	CAN_L	CAN bus D-	I/O
5	GND	Power supply GND input	GND
6	GND	Power supply GND input	GND
7	Reserve	-	-
8	Reserve	-	-
9	VBUS	Power supply 5V input	Input
10	Reserve	-	-
11	Reserve	-	-
12	GND	Power supply GND input	Input
13	VIN	Power supply 5V to 28V input	Input
14	Reserve		-
15	Reserve	-	-
16	GND	Power supply GND input	Input

CON3 definition:

Pin	Symbol	Function	Remark
1	+3V3	3.3V power for Jtag INTERFACE	Output
2	JTAG_SWCLK	CLK pink for JTAG interface	Input
3	GND	GND for JTAG interface	Output
4	JTAG_SWDIO	Data pin for JTAG interface	I/O
5	NRST	Reset pin for JTAG interface	Input
6	GND	GND	Output
7	WKUP	WKup,ADC,Timer, Event, I/O	TLT signal voltage is 3.3V
8	BOOT0	Lo: Internal flash boot (Default) Hi: External flash boot	TLT signal voltage is 3.3V
9	IO0	ADC, DAC, Timer, Event, I/O	TLT signal voltage is 3.3V
10	1O1	ADC, timer, Event, I/O	TLT signal voltage is 3.3V
11	1O2	ADC, timer, Event, I/O	TLT signal voltage is 3.3V
12	1O3	RST, Timer, Event, I/O	TLT signal voltage is 3.3V
13	104	RST, Timer, Event, I/O	TLT signal voltage is 3.3V
14	105	ADC, timer, Event, I/O	TLT signal voltage is 3.3V
15	106	RST, Timer, Event, I/O	TLT signal voltage is 3.3V
16	107	RST, Timer, Event, I/O	TLT signal voltage is 3.3V

Absolute Maximum Ratings:

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	-	+80	°C
Storage Temperature	TST	-30	-	+80	°C

Electrical Characteristics:

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage	VCC	5	12	28	V
Supply Current	ICC	610	240	110	mA
I/O pin Voltage	--	--	--	3.3	V

BOM:

Item	Description	Remark
LCM	WF50-800480FD#0PW3-FC
PCBA	SV10005R000FG00N0100

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection

Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC

Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01

SKU: WL0F00050000FGAAESA00-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

Price

€85.80

€77.20

€71.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€85.80 excl tax
