WO12864-85HU1#FC

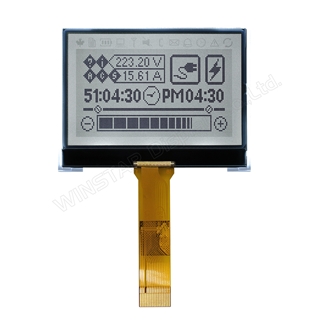

Picture of WO12864-85HU1#FC Picture of WO12864-85HU1#FC
Graphic LCD 2.2" 128x64, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock (IC ST7567S)

DESCRIPTION

Winstar released a new COG mono graphic LCD module which is made of 128x64 dot matrix format. This COG module is built in with ST7567S IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface. This module has the same outline dimension, AA size, VA size as WX12864U2. The power supply (VDD) of WO12864-xxxU#FC is 3.3V, VOP 8.5V which are the same as WX12864U2. It is an alternative item to replace WX12864U2 which TAB IC had been phased out: the outline dimension, AA size, VA size, interface, pin assignment, main electrical characteristics are all the same.

This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

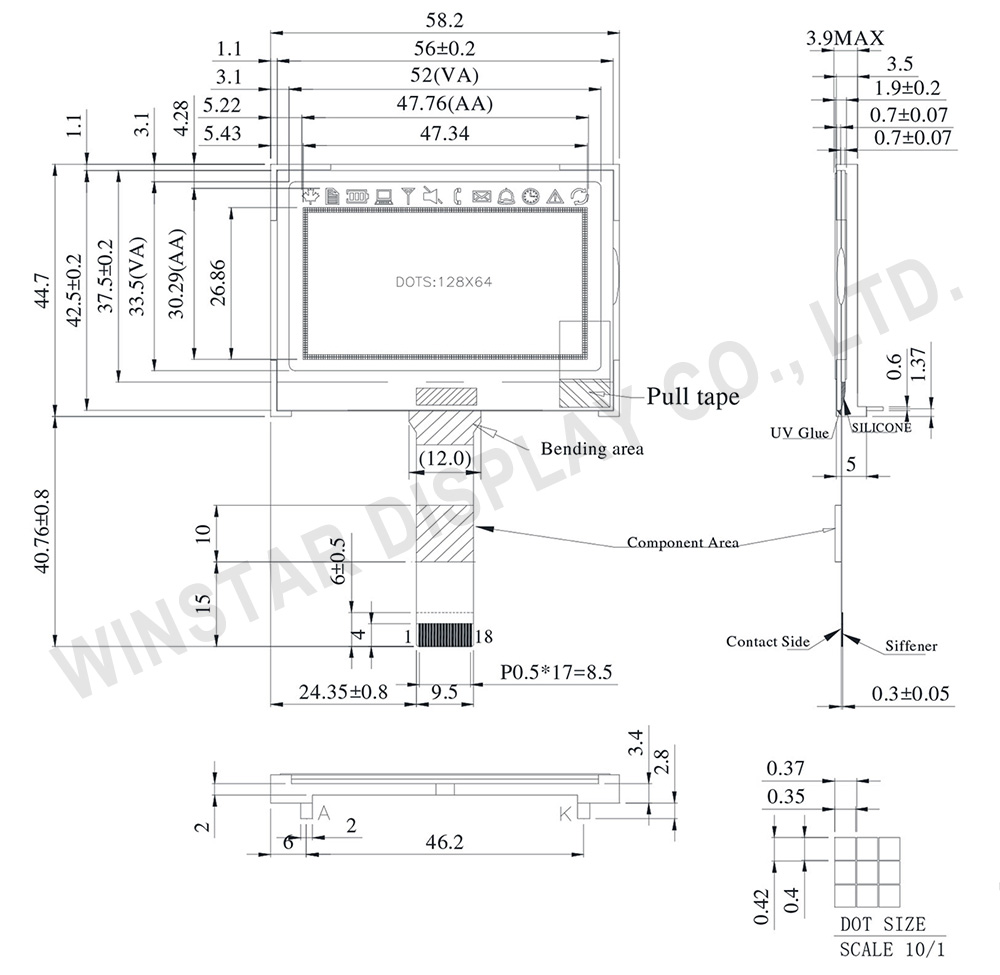

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply pin for logic.
2 VSS Ground pin, connected to 0V
3 CSB Chip select input pin.
4 NC NC
5 RSTB Hardware reset input pin
6 A0 It determines whether the access is related to data or
command.
7 RWR
C86MPU TypeRWRDescription
H 6800 series R/W Read/Write control input pin.
R/W="H": read
R/W="L": write
L 8080 series /WR Write enable input pin.
Signals on D[7:0] will be latched at the rising edge of /WR signal.
8 ERD
C86MPU TypeERDDescription
H 6800 series E Read/Write control input pin.
R/W="H": When E is "H", D[7:0] are in output mode.
R/W="L": Signals on D[7:0] are latched at the falling edge of E signal
L 8080 series /RD Read enable input pin.
When /RD is "L", D[7:0] are in output mode.
9~16 D0~D7 8-bit bi-directional data bus. Connect to the data bus of 8-bit
microprocessor. When CSB is non-active (CSB=“H”), D[7:0]
pins are high impedance.
17 C86 C86 selects the microprocessor type in parallel interface mode
18 PSB Interface selection



General Specification

ItemDimensionUnit
Number of dots 128 × 64 －
Module dimension 58.2 × 44.7 × 3.9(MAX) mm
View area 52.0 × 33.5 mm
Active area 47.76 × 30.29 mm
Dot size 0.40 × 0.35 mm
Dot pitch 0.42 × 0.37 mm
Duty 1/65 duty;1/9 bias
View direction 6 o'clock
Backlight Type LED
IC ST7567S
Interface 6800 series/8080 series/4-Line SPI



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input Voltage VI -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 － 4.0 V
LCD Power supply voltage V0-XV0 -0.3 － 14.0 V



Electrical Characteristics

ItemSymbolConditionMin.Typ.Max.Unit
Supply Voltage For Logic VDD-VSS － 3.0 3.3 3.6 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
8.3
－		 －
8.5
－		 －
8.7
－		 V
V
V
Input High Volt. VIH － 0.7VDD － VDD V
Input Low Volt. VIL － VSS － 0.3VDD V
Output High Volt. VOH － 0.8VDD － VDD V
Output Low Volt. VOL － VDD － 0.2VDD V
Supply Current IDD VDD=3.3V － － 1.5 mA




SKU: WO12864-85HU1#FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€12.80
€9.40
€9.00
€8.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€12.80 excl tax

DESCRIPTION

Winstar released a new COG mono graphic LCD module which is made of 128x64 dot matrix format. This COG module is built in with ST7567S IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface. This module has the same outline dimension, AA size, VA size as WX12864U2. The power supply (VDD) of WO12864-xxxU#FC is 3.3V, VOP 8.5V which are the same as WX12864U2. It is an alternative item to replace WX12864U2 which TAB IC had been phased out: the outline dimension, AA size, VA size, interface, pin assignment, main electrical characteristics are all the same.

This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply pin for logic.
2 VSS Ground pin, connected to 0V
3 CSB Chip select input pin.
4 NC NC
5 RSTB Hardware reset input pin
6 A0 It determines whether the access is related to data or
command.
7 RWR
C86MPU TypeRWRDescription
H 6800 series R/W Read/Write control input pin.
R/W="H": read
R/W="L": write
L 8080 series /WR Write enable input pin.
Signals on D[7:0] will be latched at the rising edge of /WR signal.
8 ERD
C86MPU TypeERDDescription
H 6800 series E Read/Write control input pin.
R/W="H": When E is "H", D[7:0] are in output mode.
R/W="L": Signals on D[7:0] are latched at the falling edge of E signal
L 8080 series /RD Read enable input pin.
When /RD is "L", D[7:0] are in output mode.
9~16 D0~D7 8-bit bi-directional data bus. Connect to the data bus of 8-bit
microprocessor. When CSB is non-active (CSB=“H”), D[7:0]
pins are high impedance.
17 C86 C86 selects the microprocessor type in parallel interface mode
18 PSB Interface selection



General Specification

ItemDimensionUnit
Number of dots 128 × 64 －
Module dimension 58.2 × 44.7 × 3.9(MAX) mm
View area 52.0 × 33.5 mm
Active area 47.76 × 30.29 mm
Dot size 0.40 × 0.35 mm
Dot pitch 0.42 × 0.37 mm
Duty 1/65 duty;1/9 bias
View direction 6 o'clock
Backlight Type LED
IC ST7567S
Interface 6800 series/8080 series/4-Line SPI



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input Voltage VI -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 － 4.0 V
LCD Power supply voltage V0-XV0 -0.3 － 14.0 V



Electrical Characteristics

ItemSymbolConditionMin.Typ.Max.Unit
Supply Voltage For Logic VDD-VSS － 3.0 3.3 3.6 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
8.3
－		 －
8.5
－		 －
8.7
－		 V
V
V
Input High Volt. VIH － 0.7VDD － VDD V
Input Low Volt. VIL － VSS － 0.3VDD V
Output High Volt. VOH － 0.8VDD － VDD V
Output Low Volt. VOL － VDD － 0.2VDD V
Supply Current IDD VDD=3.3V － － 1.5 mA




Products specifications
Brand Winstar
Size 2.2"
Resolution 128x64
Active Area (mm) 47.76x30.29
Dot Size 0.40x0.35
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7567S
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.2"
Resolution 128x64
Active Area (mm) 47.76x30.29
Dot Size 0.40x0.35
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7567S
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
