WO12864-88IP#FC

Graphic LCD 1.9'' 128x64, B/L white, DFSTN black neg, Transmissive, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock (IC ST7567S)

DESCRIPTION

Monochrome COG LCD display, made of resolution 128x64 dot matrix. This model is built-in with ST7567S IC, it supports It supports 6800 8-bit, 8080 8-bit parallel and 4-line SPI interface, 1/9 Bias, driving duty 1/65. This LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This family is the alternative model for WO12864-xxxC2#FC corresponding IC shortage or longer lead-time.

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	NC	No connection
2	NC	No connection
3	PSB	Interface selection
4	C86	C86 selects the microprocessor type in parallel interface mode
5~9	NC	No connection
10	VG	VG is the LCD driving voltage for segment circuits.
11	NC	No connection
12	NC	No connection
13	XV0	XV0 is the LCD driving voltage for common circuits at positive frame.
14	V0	V0 is the LCD driving voltage for common circuits at negative frame
15~19	NC	No connection
20	VSS	Ground
21	VDD	Power supply
22~29	D7~D0	8-bit bi-directional data bus. Connect to the data bus of 8-bit microprocessor. When CSB is non-active (CSB=“H”), D[7:0] pins are high impedance.

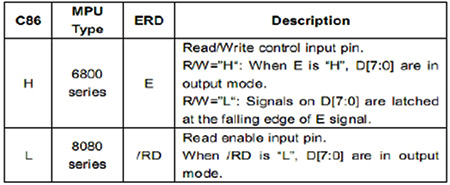

30	ERD

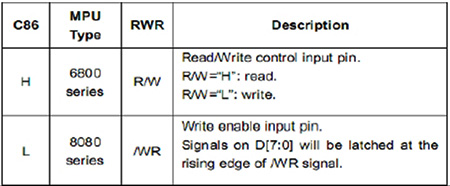

31	RWR
32	A0	It determines whether the access is related to data or command
33	RSTB	Hardware reset input pin
34	CSB	Chip select input pin.

General Specification

Item	Dimension	Unit
Number of Dots	128 x 64 dots	－
Module dimension	55.2 x 39.8 x 6.0	mm
View area	45.2 x 27.0	mm
Active area	40.92 x 24.28	mm
Dot size	0.28 x 0.34	mm
Dot pitch	0.32 x 0.38	mm
Duty	1/65 , 1/9 Bias
Backlight Type	LED
IC	ST7567S
Interface	6800/8080/4-Line SPI

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VI	-0.3	－	VDD+0.3	V
Digital Power Supply Voltage	VDD-Vss	-0.3	－	4.0	V
LCD Power supply voltage	V0-XV0	-0.3	－	14.0	V

Electrical Characteristics

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Supply Voltage For Logic	VDD-VSS	－	2.7	3.0	3.3	V
Supply Voltage For LCD	VOP	Ta=-20℃ Ta=25℃ Ta=70℃	－ 9.4 －	－ 9.6 －	－ 9.8 －	V V V
Input High Volt.	VIH	－	0.7 VDD	－	VDD	V
Input Low Volt.	VIL	－	Vss	－	0.3VDD	V
Output High Volt.	VOH	－	0.8 VDD	－	VDD	V
Output Low Volt.	VOL	－	Vss	－	0.2 VDD	V
Supply Current	IDD	VDD=3.0V	－	－	1.5	mA

SKU: WO12864-88IP#FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector
Touch-Panel Connector
Touch-Panel
Added Board

Price Breaks

Quantity

10+

25+

Price

€12.70

€9.30

€9.00

€8.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€12.70 excl tax
