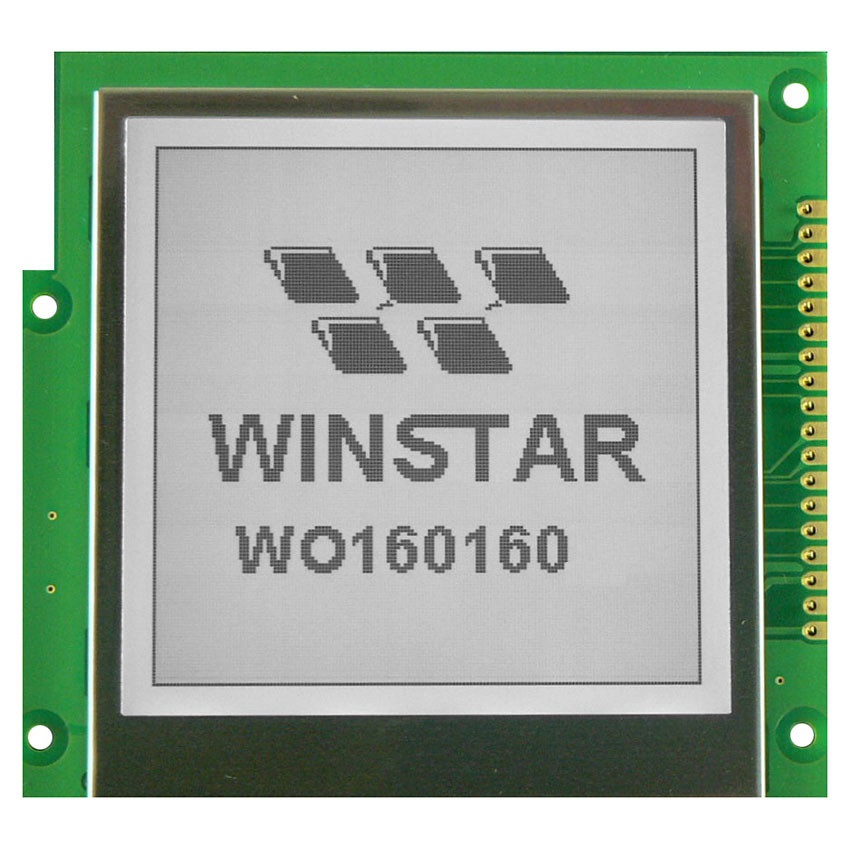

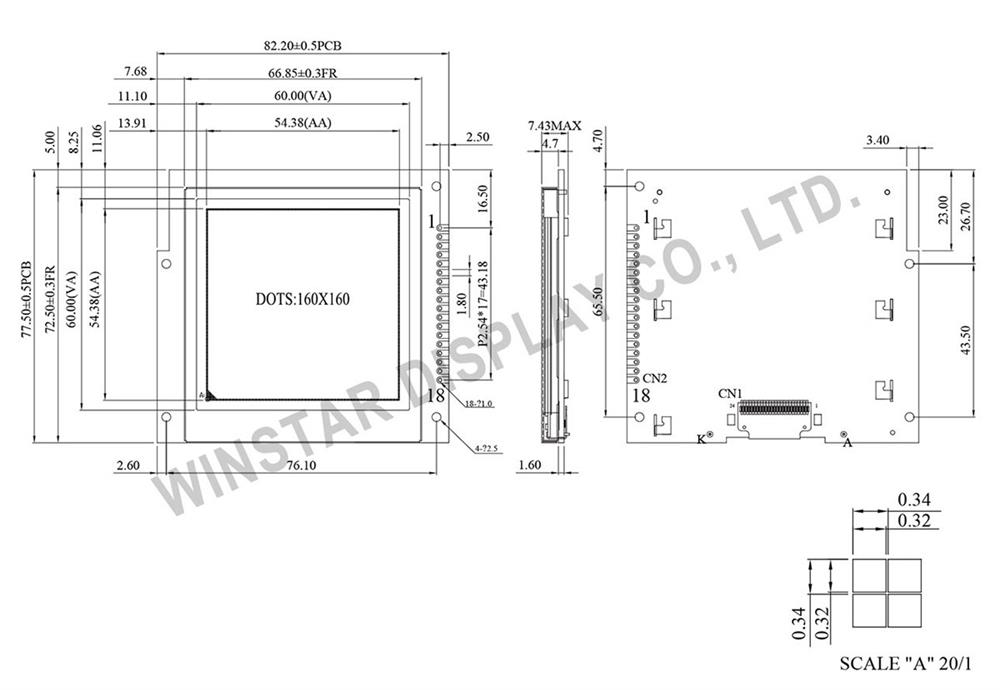

WO160160-85HB#FC

Graphic LCD 3" 160x160, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080, 6 O'clock, Frame

MOQ

After sample PO, MP MOQ 1500pcs

Pin No.	Symbol	Description
1	V_SS	Ground
2	A0	Data/ Instruction select signal
3	WR	Data write. Write data into LCD Controller
4	RD	Data read. Read data from LCD Controller
5	XCS	Chip select input pins
6	RST	Controller reset signal, Active Low
7	VDD	Power supply for logic
8~15	DB0~DB7	Data bus line
16	LED-	Power supply for B/L -
17	NC	No connection
18	LED+	Power supply for B/L +

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3.3	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	16.5	V

SKU: WO160160-85HB#FC

Brand: Winstar

Available: Yes

Accessory Kit

Price Breaks

Quantity

10+

Price

€23.40

€18.70

€18.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€23.40 excl tax

After sample PO, MP MOQ 1500pcs

Pin No.	Symbol	Description
1	V_SS	Ground
2	A0	Data/ Instruction select signal
3	WR	Data write. Write data into LCD Controller
4	RD	Data read. Read data from LCD Controller
5	XCS	Chip select input pins
6	RST	Controller reset signal, Active Low
7	VDD	Power supply for logic
8~15	DB0~DB7	Data bus line
16	LED-	Power supply for B/L -
17	NC	No connection
18	LED+	Power supply for B/L +

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3.3	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	16.5	V
