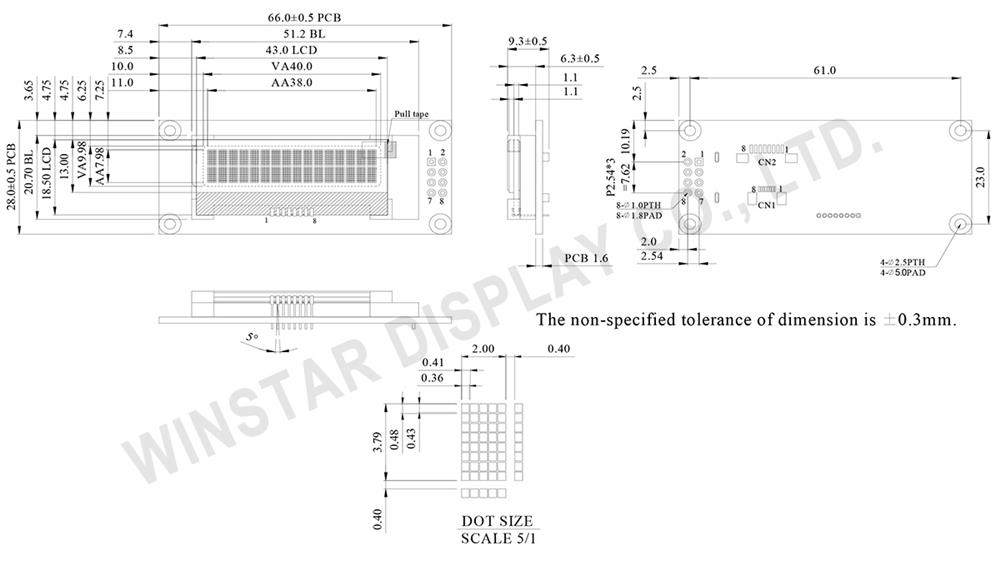

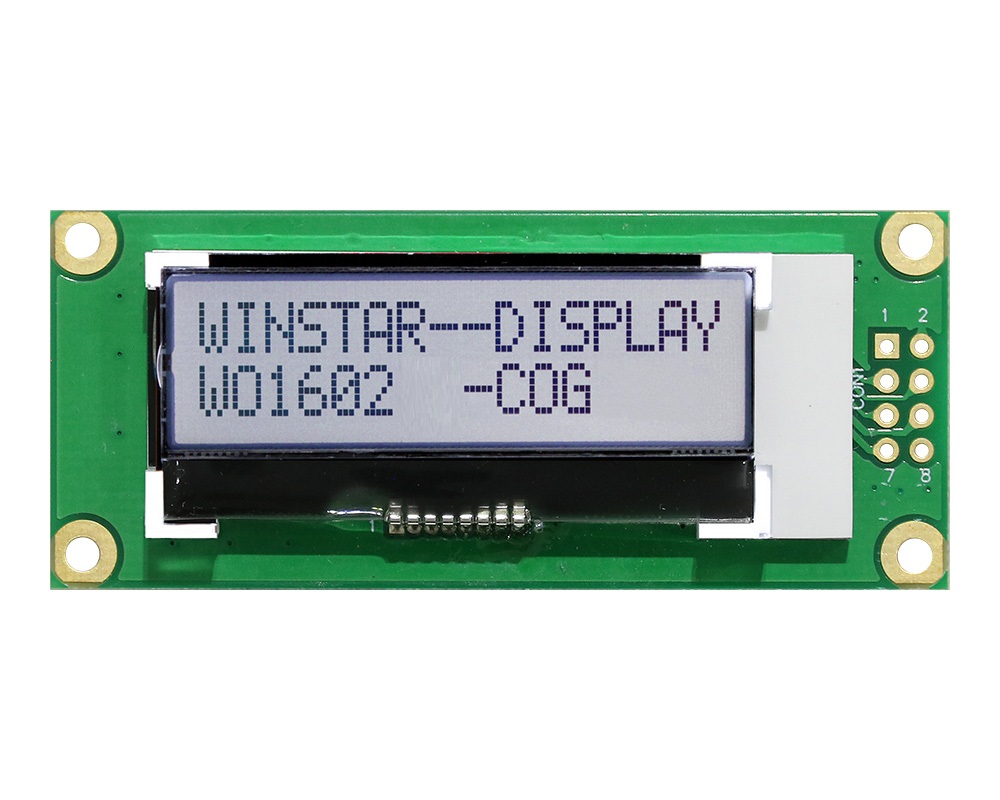

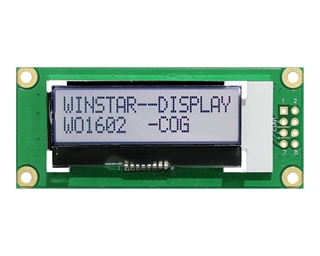

16 characters by 2 lines with PCB board on module. It is built in with ST7032i IC; it supports I2C interface. COG (Chip on Glass) constraction type + PCB board with screw holes for an easy fixing on customers’ applications. Possibility to chose beetwin different connector pitch sizes: 2.54mm (default), 1.0mm or 0.5mm.
The supply voltage for logic (VDD) is 3.3V, 1/16 duty circle, 1/5 bias. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. This module is available in FSTN positive Transflective LCD with White LED backlight; please contact us if you need different types of LCDs or LED combinations.
