WO240128-84IB#FC

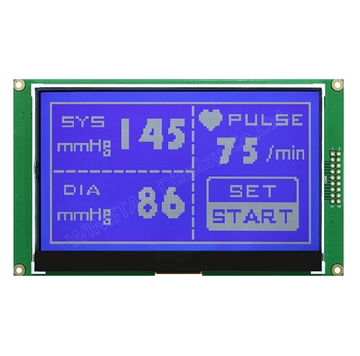

Graphic LCD 4.8'' 240x128, B/L white, STN blue neg, COG, 3V, Interface 6800/8080/SPI, 6 O'clock

MOQ

After sample PO, MP MOQ 500pcs

DESCRIPTION

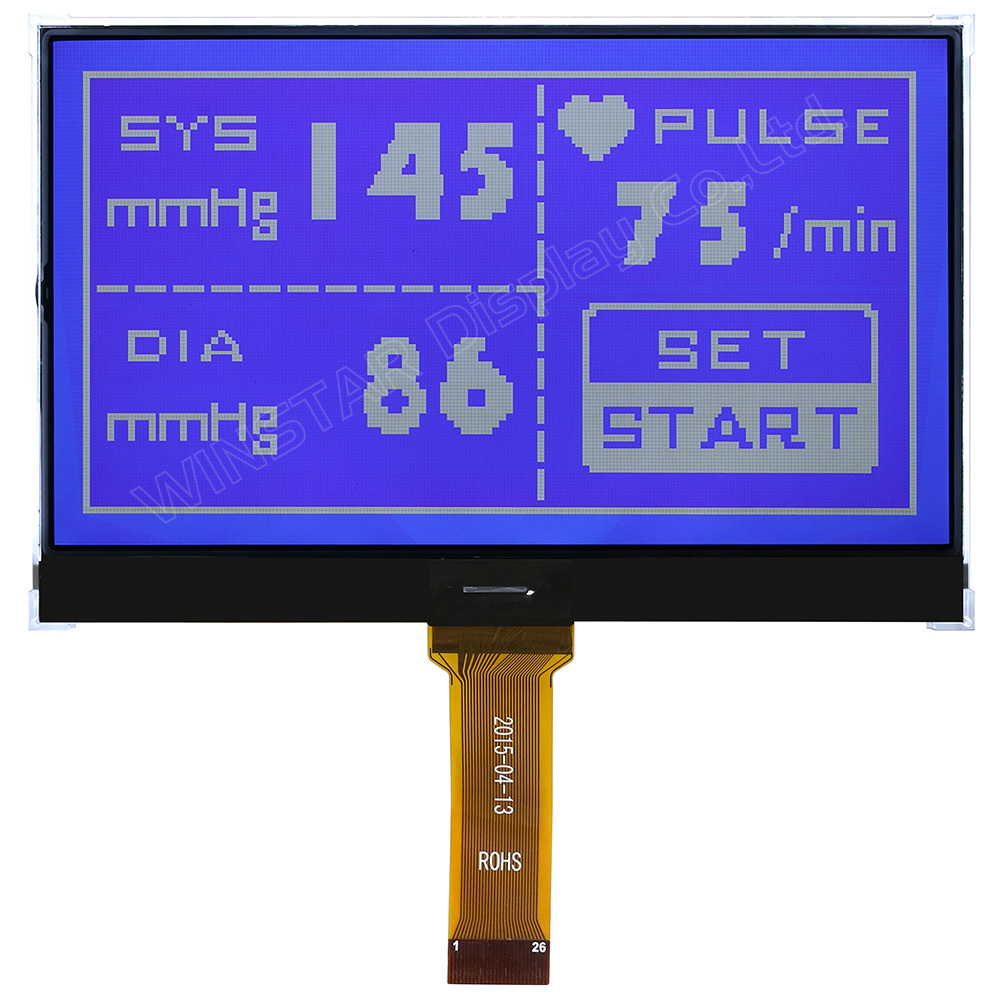

Monochrome COG graphic LCD module made of 240x128 pixels, diagonal size 4.8 inch. This COG LCD Module is built in with ST7586S controller IC; it supports 6800 8-bit, 8080 8-bit parallel and 3-line 9-bit /4-line 8-bit serial SPI interface. This COG has the same Active Area dimension and View Area as COB WG240128B, but this COG is much thinner than WG240128B. If the customers require 4.8” thinner module for new design, it is a good choice.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. Different LCD mode options; STN Negative blue with white LED backlight, and FSTN positive white with white LED backlight.

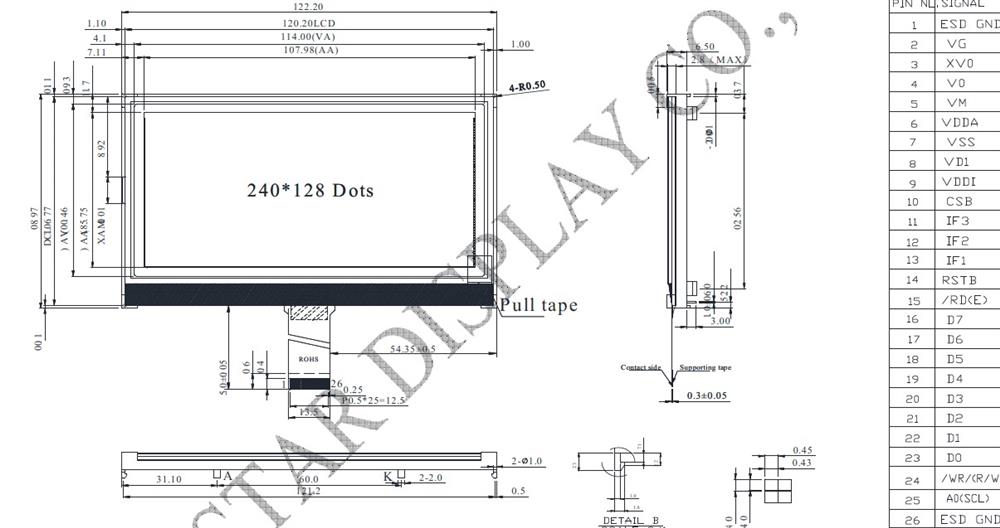

DRAWING

Chip on Glass LCD Module 240x128 - WO240128B

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	ESD GND	Electro-Static discharge
2	VG	VG is the power of SEG-drivers
3	XV0	Negative operating voltage of COM-drivers
4	V0	Positive operating voltage of COM-drivers
5	VM	VM is the non-select voltage level of COM-drivers
6	VDDA	Power supply
7	VSS	Ground
8	VD1	Digital power source selection
9	VDDI	VDD1 is the power of interface I/O circuit
10	CSB	Chip select input pin CSB=“L”: This chip is selected and the MPU interface is active CSB=“H”: This chip is not selected and the MPU interface is disabled (D[7:0] are high impedance)
11 12 13	IF3 IF2 IF1	These pins select interface operation mode Note: Refer to “Interface Selection” for detailed information
14	RSTB	Reset input pin. When RSTB is “L”, internal initialization procedure is executed
15	/RD(E)	Read / Write execution control pin. (This pin is only used in parallelinterface) This pin is not used in serial interfaces and should be connected to VDD1
16~23	D7~D0	The bi-directional data bus of the MPU interface. When CSB is “H”, they are high impedance If using serial interface: D0 is the SDA signal in 4-Line & 3-Line interface D1 is the A0 signal in 4-Line interface
24	/WR/(R/W)	Read / Write execution control pin. (This pin is only used in parallel interface) This pin is not used in serial interfaces and should be connected to VDD1
25	A0(SCL)	The function of this pin is different in parallel and serial interface In parallel interface: A0 is register selection input A0 = "H": inputs on data bus are display data A0 = "L": inputs on data bus are command In serial interface: this pad will be used as SCL (serial-clock) input
26	ESD GND	Electro-Static discharge

Mechanical Data

Item	Dimension	Unit
Number of dots	240 × 128	－
Module dimension	122.2 × 79.8 × 6.5	mm
View area	114.0 × 64.0	mm
Active area	107.98 × 57.58	mm
Dot size	0.43 × 0.43	mm
Dot pitch	0.45 × 0.45	mm
Drive Method	1/128Duty，1/12Bias
Backlight Type	LED
IC	ST7586S

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Digital Power Supply Voltage	VDDI	-0.3	－	3.6	V
Analog Power supply voltage	VDDA	-0.3	－	3.6	V
LCD Power supply voltage	V0-XV0	-0.3	－	19	V
LCD Power supply voltage	VG	-0.3	－	5.5	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	3.0	3.3	3.6	V
Supply Voltage For LCM	VOP	Ta=-20℃ Ta=25℃ Ta=+70℃	－ 14.8 －	－ 15.0 －	－ 15.2 －	V V V
Input High Volt.	VIH	－	0.7VDD	－	VDD	V
Input Low Volt.	VIL	－	Vss	－	0.3 VDD	V
Output High Volt.	VOH	－	0.8 VDD	－	VDD	V
Output Low Volt.	VOL	－	Vss	－	0.2VDD	V
Supply Current	IDD	VDD=3.3V	－	－	2.0	mA

SKU: WO240128-84IB#FC

Brand: Winstar

Available: Yes

Be the first to review this product

Price Breaks

Quantity

Price

€26.50

€21.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€26.50 excl tax

Overview
Specifications
Download
Contact Us

MOQ

After sample PO, MP MOQ 500pcs

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	ESD GND	Electro-Static discharge
2	VG	VG is the power of SEG-drivers
3	XV0	Negative operating voltage of COM-drivers
4	V0	Positive operating voltage of COM-drivers
5	VM	VM is the non-select voltage level of COM-drivers
6	VDDA	Power supply
7	VSS	Ground
8	VD1	Digital power source selection
9	VDDI	VDD1 is the power of interface I/O circuit
10	CSB	Chip select input pin CSB=“L”: This chip is selected and the MPU interface is active CSB=“H”: This chip is not selected and the MPU interface is disabled (D[7:0] are high impedance)
11 12 13	IF3 IF2 IF1	These pins select interface operation mode Note: Refer to “Interface Selection” for detailed information
14	RSTB	Reset input pin. When RSTB is “L”, internal initialization procedure is executed
15	/RD(E)	Read / Write execution control pin. (This pin is only used in parallelinterface) This pin is not used in serial interfaces and should be connected to VDD1
16~23	D7~D0	The bi-directional data bus of the MPU interface. When CSB is “H”, they are high impedance If using serial interface: D0 is the SDA signal in 4-Line & 3-Line interface D1 is the A0 signal in 4-Line interface
24	/WR/(R/W)	Read / Write execution control pin. (This pin is only used in parallel interface) This pin is not used in serial interfaces and should be connected to VDD1
25	A0(SCL)	The function of this pin is different in parallel and serial interface In parallel interface: A0 is register selection input A0 = "H": inputs on data bus are display data A0 = "L": inputs on data bus are command In serial interface: this pad will be used as SCL (serial-clock) input
26	ESD GND	Electro-Static discharge

Mechanical Data

Item	Dimension	Unit
Number of dots	240 × 128	－
Module dimension	122.2 × 79.8 × 6.5	mm
View area	114.0 × 64.0	mm
Active area	107.98 × 57.58	mm
Dot size	0.43 × 0.43	mm
Dot pitch	0.45 × 0.45	mm
Drive Method	1/128Duty，1/12Bias
Backlight Type	LED
IC	ST7586S

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Digital Power Supply Voltage	VDDI	-0.3	－	3.6	V
Analog Power supply voltage	VDDA	-0.3	－	3.6	V
LCD Power supply voltage	V0-XV0	-0.3	－	19	V
LCD Power supply voltage	VG	-0.3	－	5.5	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	3.0	3.3	3.6	V
Supply Voltage For LCM	VOP	Ta=-20℃ Ta=25℃ Ta=+70℃	－ 14.8 －	－ 15.0 －	－ 15.2 －	V V V
Input High Volt.	VIH	－	0.7VDD	－	VDD	V
Input Low Volt.	VIL	－	Vss	－	0.3 VDD	V
Output High Volt.	VOH	－	0.8 VDD	－	VDD	V
Output Low Volt.	VOL	－	Vss	－	0.2VDD	V
Supply Current	IDD	VDD=3.3V	－	－	2.0	mA

Products specifications

Brand	Winstar
Size	4.8"
Resolution	240x128
Active Area (mm)	107.98x57.58
Dot Size	0.43x0.43
B/L color, LCD type	B/L white, STN blue neg
Power supply	3.3V
Display Interface	6800/8080/SPI
Display IC Controller	ST7586S-G4
Constructive Structure	COG
View Angle	6H
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	FPC per ZIF Connector
Pin Nr.	26
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred
