WO240128-84IC#FC

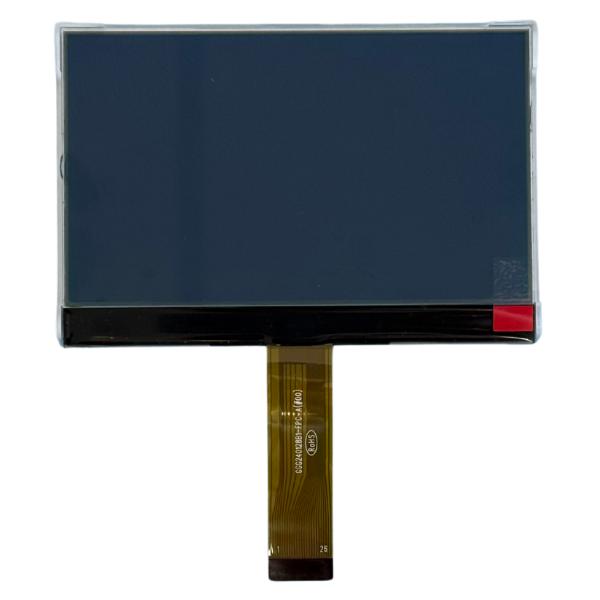

Picture of WO240128-84IC#FC Picture of WO240128-84IC#FC
Graphic LCD 3.7" 240x128, B/L white, STN blue neg, Transmissive, COG, 3V, Interface 6800/8080/SPI/I2C, 6 O'clock

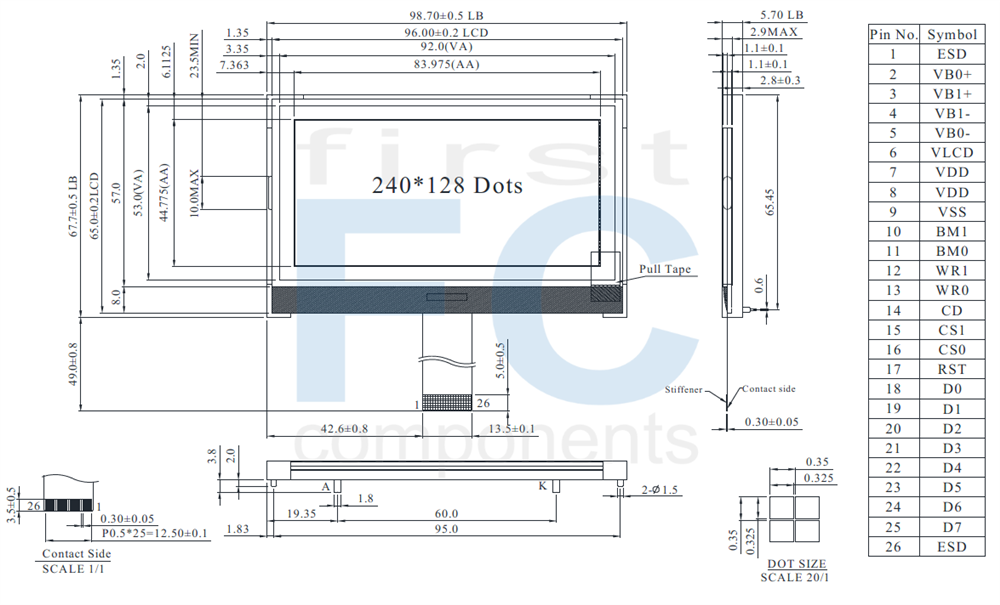

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 ESD ESD
2 VB0+ LCD Bias Boltages.
3 VB1+
4 VB1-
5 VB0-
6 VLCD High voltage LCD Power Supply.
7 VDD Power supply
8 VDD
9 VSS Ground
10 BM1 Bus mode: The interface bus mode is determined by BM[1:0]:

Mode BM[1:0]
8080 (8-bit) 10
6800 (8-bit) 11
4-wire SPI w/8-bit token (S8) 01
2-wire SPI I2C) 00
11 BM0
12 WR1 WR[1:0] controls the read/write operation of the host interface. See section Host Interface for more detail.
13 WR0
14 CD Select Control data or Display dat for read/write operation.
"L": Control data   "H":Display data/command
15 CS1 Chip Select. Chip is selected when CS1="H" and CS0="L". When the chip is not selected, DB[7:0] wll be high impedance.
16 CS0
17 RST Hardware reset input pin
18 D0 Bi-directional bus for both serial and parallel host interfaces.
In serial modes, connect DB[0] to SCK, DB[3] to SDAI for write and DB[5:4] to SDAO for read. SDAI and SDAO may be connected together if necessary.

  D7 D6 D5 D4 D3 D2 D1 D0
8-bit
(BM=1x)		 DB[7:0]
S8
(BM=01)		 - - SDAO SDAO SDAI - - SCK
I2C
(BM=00)		 - - SDAO SDAO SDAI - - SCK

Connect unused pins to VSS.
19 D1
20 D2
21 D3
22 D4
23 D5
24 D6
25 D7
26 ESD ESD



General Specification

ItemDimensionUnit
Number of Characters 240 x 128 dots -
Module dimensioon 98.7 x 67.7 x 5.7 mm
View Area 92.0 x 53.0 mm
Active area 83.975 x 44.775 mm
Dot size 0.325 x 0.325 mm
Dot pitch 0.35 x 0.35 mm
LCD type STN Negative, Blue Transmissive
(In LCD production, it will occur slightly color difference. We can only guarantee the same color in the same batch.)
Duty 1/128, 1/12 Bias
View direction 6 o'clock
Backlight Type LED White
IC UC1528c
Interface 6800/8080/4-Line SPI/I2C



Absolute Maximum Ratings

ItemSymbolMin.TypMaxUnit
Operating Temperature TOP -20 - +70 °C
Storage Temperature TST -30 - +80 °C
Supply Voltage For Logic VDD -0.3 - +4.0 V
Supply Voltage For LCD Drive VLCD -0.3 - +18.0 V
Input voltage range VIN -0.4 - VDD+0.5 V



Electrical Characteristics

ItemSymbolContitionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS - 2.7 3.0 3.3 V
Supply Voltage For LCM VLCD Ta=-20°C
Ta=25°C
Ta=70°C		 -
14.9
-		 -
15.2
-		 -
15.5
-		 V
V
V
Input High Volt. VIH - 0.8 VDD - VDD V
Input Low Volt. VIL - VSS - 0.2 VDD V
Output High Volt VOH - 0.8 VDD - VDD V
Output Loe Volt. VOL - VSS - 0.2 VDD V
Supply Current
(No include LED Backlight)		 IDD VDD=3.0V - 1.18 2.5 mA


SKU: WO240128-84IC#FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€16.90
€12.40
€10.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€16.90 excl tax

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 ESD ESD
2 VB0+ LCD Bias Boltages.
3 VB1+
4 VB1-
5 VB0-
6 VLCD High voltage LCD Power Supply.
7 VDD Power supply
8 VDD
9 VSS Ground
10 BM1 Bus mode: The interface bus mode is determined by BM[1:0]:

Mode BM[1:0]
8080 (8-bit) 10
6800 (8-bit) 11
4-wire SPI w/8-bit token (S8) 01
2-wire SPI I2C) 00
11 BM0
12 WR1 WR[1:0] controls the read/write operation of the host interface. See section Host Interface for more detail.
13 WR0
14 CD Select Control data or Display dat for read/write operation.
"L": Control data   "H":Display data/command
15 CS1 Chip Select. Chip is selected when CS1="H" and CS0="L". When the chip is not selected, DB[7:0] wll be high impedance.
16 CS0
17 RST Hardware reset input pin
18 D0 Bi-directional bus for both serial and parallel host interfaces.
In serial modes, connect DB[0] to SCK, DB[3] to SDAI for write and DB[5:4] to SDAO for read. SDAI and SDAO may be connected together if necessary.

  D7 D6 D5 D4 D3 D2 D1 D0
8-bit
(BM=1x)		 DB[7:0]
S8
(BM=01)		 - - SDAO SDAO SDAI - - SCK
I2C
(BM=00)		 - - SDAO SDAO SDAI - - SCK

Connect unused pins to VSS.
19 D1
20 D2
21 D3
22 D4
23 D5
24 D6
25 D7
26 ESD ESD



General Specification

ItemDimensionUnit
Number of Characters 240 x 128 dots -
Module dimensioon 98.7 x 67.7 x 5.7 mm
View Area 92.0 x 53.0 mm
Active area 83.975 x 44.775 mm
Dot size 0.325 x 0.325 mm
Dot pitch 0.35 x 0.35 mm
LCD type STN Negative, Blue Transmissive
(In LCD production, it will occur slightly color difference. We can only guarantee the same color in the same batch.)
Duty 1/128, 1/12 Bias
View direction 6 o'clock
Backlight Type LED White
IC UC1528c
Interface 6800/8080/4-Line SPI/I2C



Absolute Maximum Ratings

ItemSymbolMin.TypMaxUnit
Operating Temperature TOP -20 - +70 °C
Storage Temperature TST -30 - +80 °C
Supply Voltage For Logic VDD -0.3 - +4.0 V
Supply Voltage For LCD Drive VLCD -0.3 - +18.0 V
Input voltage range VIN -0.4 - VDD+0.5 V



Electrical Characteristics

ItemSymbolContitionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS - 2.7 3.0 3.3 V
Supply Voltage For LCM VLCD Ta=-20°C
Ta=25°C
Ta=70°C		 -
14.9
-		 -
15.2
-		 -
15.5
-		 V
V
V
Input High Volt. VIH - 0.8 VDD - VDD V
Input Low Volt. VIL - VSS - 0.2 VDD V
Output High Volt VOH - 0.8 VDD - VDD V
Output Loe Volt. VOL - VSS - 0.2 VDD V
Supply Current
(No include LED Backlight)		 IDD VDD=3.0V - 1.18 2.5 mA


Products specifications
Brand Winstar
Size 3.7"
Resolution 240x128
Active Area (mm) 83.97x44.77
Dot Size 0.32x0.32
B/L color, LCD type B/L white, STN blue neg
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC UC1528c
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 26
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.7"
Resolution 240x128
Active Area (mm) 83.97x44.77
Dot Size 0.32x0.32
B/L color, LCD type B/L white, STN blue neg
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC UC1528c
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 26
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
