WO240128-85HA#FC

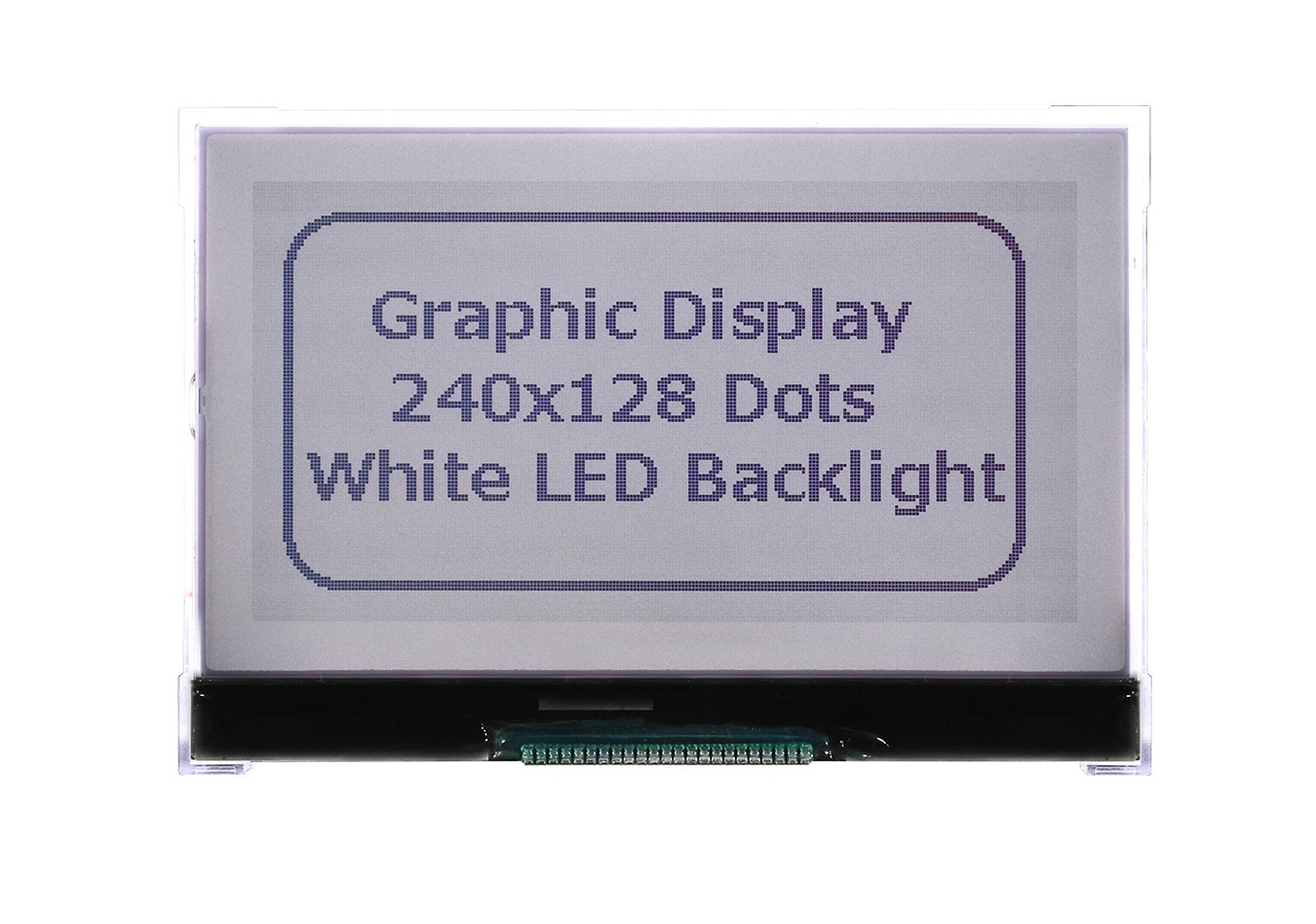

Picture of WO240128-85HA#FC Picture of WO240128-85HA#FC Picture of WO240128-85HA#FC
Graphic LCD 3.7" 240x128, B/L white, FSTN white pos, Transflective, COG, 3V, Interface 6800/8080/SPI, 6 O'clock

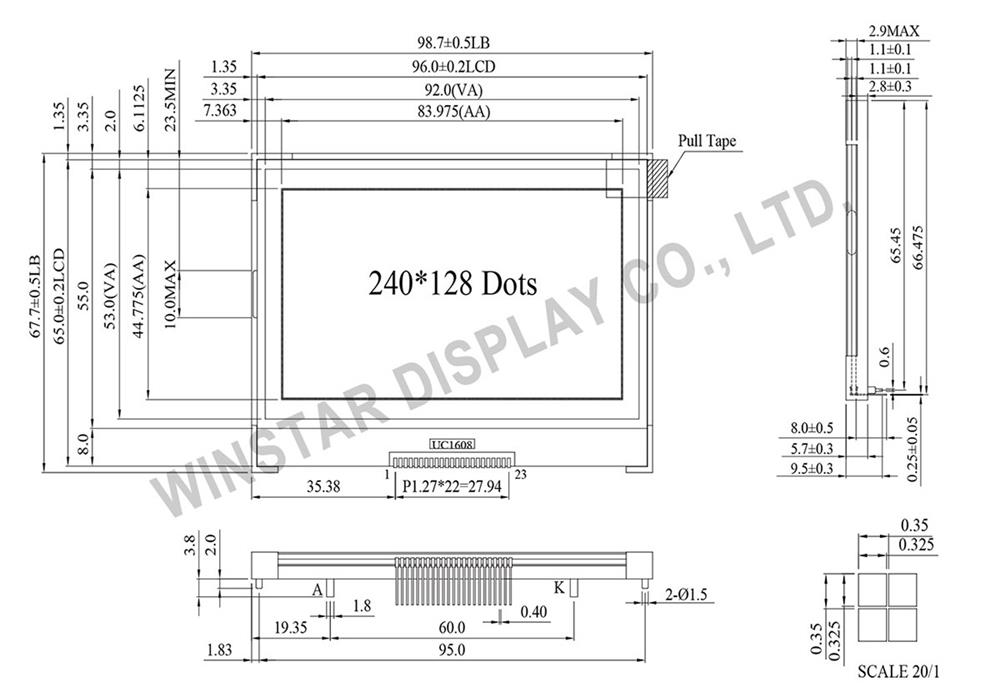

DRAWING

COG LCD Display 240x128 - Winstar WO240128A

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VB1- DC/DC voltage converter.
2 VB1+ DC/DC voltage converter.
3 VB0- DC/DC voltage converter.
4 VB0+ DC/DC voltage converter.
5 VLCD Bias voltage levels for LCD driving
6 VBIAS Contrast Adjustment
7 VSS Ground
8 VDD Power supply for logic
9~16 D7~D0 Data bus line
17 WR1 8080 family: Read signal, 6800 family: Enable clock
18 WR0 8080 family: Write signal, 6800 family: Read/Write signal
19 CD Data/ Instruction select signal
20 RST Controller reset signal, Active Low
21 CS Chip select input pins
22 BM0 Interface selection: "00" : SPI mode , "10" : 8080 mode, "11" : 6800 mode
23 BM1



Mechanical Data

ItemStandard ValueUnit
Module Dimension 98.7 × 67.7 mm
Viewing Area 92.0 × 53.0 mm
Dot Pitch 0.35 × 0.35 mm
Dot Size 0.325 × 0.325 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.3 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 15.5 V


SKU: WO240128-85HA#FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
50+
Price
€29.80
€23.90
€23.00
€22.20
€21.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€29.80 excl tax

DRAWING

COG LCD Display 240x128 - Winstar WO240128A

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VB1- DC/DC voltage converter.
2 VB1+ DC/DC voltage converter.
3 VB0- DC/DC voltage converter.
4 VB0+ DC/DC voltage converter.
5 VLCD Bias voltage levels for LCD driving
6 VBIAS Contrast Adjustment
7 VSS Ground
8 VDD Power supply for logic
9~16 D7~D0 Data bus line
17 WR1 8080 family: Read signal, 6800 family: Enable clock
18 WR0 8080 family: Write signal, 6800 family: Read/Write signal
19 CD Data/ Instruction select signal
20 RST Controller reset signal, Active Low
21 CS Chip select input pins
22 BM0 Interface selection: "00" : SPI mode , "10" : 8080 mode, "11" : 6800 mode
23 BM1



Mechanical Data

ItemStandard ValueUnit
Module Dimension 98.7 × 67.7 mm
Viewing Area 92.0 × 53.0 mm
Dot Pitch 0.35 × 0.35 mm
Dot Size 0.325 × 0.325 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.3 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 15.5 V


Products specifications
Brand Winstar
Size 3.7"
Resolution 240x128
Active Area (mm) 83.97x44.77
Dot Size 0.32x0.32
B/L color, LCD type B/L white, FSTN white pos
Power supply 3V
Display Interface 6800/8080/SPI
Display IC UC1608
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Pin Strip
Pin Nr. 23
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.7"
Resolution 240x128
Active Area (mm) 83.97x44.77
Dot Size 0.32x0.32
B/L color, LCD type B/L white, FSTN white pos
Power supply 3V
Display Interface 6800/8080/SPI
Display IC UC1608
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Pin Strip
Pin Nr. 23
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
