WO240128-85HX#000-FC

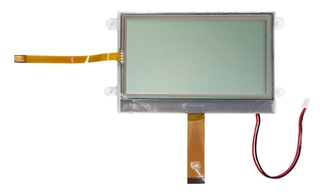

Picture of WO240128-85HX#000-FC

Picture of WO240128-85HX#000-FC

Picture of WO240128-85HX#000-FC

Graphic LCD 3.7" 240x128, B/L white, FSTN white pos, Transflective, COG, 3V, Interface 6800/8080/SPI, 6 O'clock, Frame, Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

MOQ

After sample PO, MOQ 1Kpcs

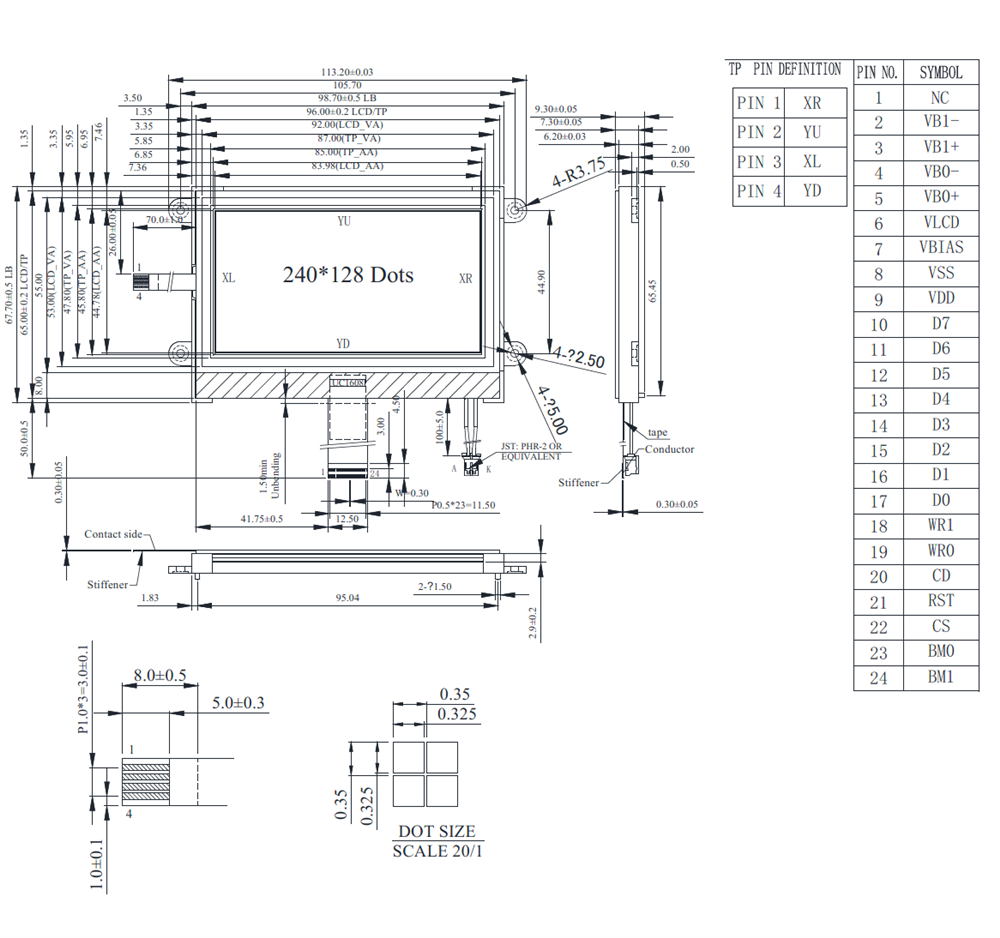

DRAWING

SKU: WO240128-85HX#000-FC

Brand: Winstar

Be the first to review this product

Accessory Kit

Display Connector
Touch-Panel Connector

Overview
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

MOQ

After sample PO, MOQ 1Kpcs

DRAWING

Products specifications

Brand	Winstar
Size	3.7"
Resolution	240x128
Active Area (mm)	83.97x44.77
Dot Size	0.32x0.32
B/L color, LCD type	B/L white, FSTN white pos
Power supply	3V
Display Interface	6800/8080/SPI
Display IC	UC1608
Constructive Structure	COG
View Angle	6H
Frame	Yes
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	24
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	3.7"
Resolution	240x128
Active Area (mm)	83.97x44.77
Dot Size	0.32x0.32
B/L color, LCD type	B/L white, FSTN white pos
Power supply	3V
Display Interface	6800/8080/SPI
Display IC	UC1608
Constructive Structure	COG
View Angle	6H
Frame	Yes
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	24
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred
