WUABLB120V121BTXGX00

Picture of WUABLB120V121BTXGX00 Picture of WUABLB120V121BTXGX00 Picture of WUABLB120V121BTXGX00 Picture of WUABLB120V121BTXGX00 Picture of WUABLB120V121BTXGX00
TFT 12.1" 1280x800 LVDS + CTP Embedded System, OS Linux Yocto Daisy 1.6, CPU ARM Base - iMX6 Dual Lite 1.0GH, Memory DDR3L 1GB (2GB MAX), Interface USB 2.0 x 2 // RS232 x 4 // RS485 x 1 // CAN Bus x 2 // SPI-I2C-GPIO x 32 // Ethernet x 1, Power 12V, Power Consumption 2.5W, Application Automotive and Industrial HMI, B version

DESCRIPTION

Introduction

Hardware :

The WUABLB120V i.MX6 is a computer single board based on the NXP i.MX6 embedded System-on-chip (SoC). The SoC features a scalable multi-core ARM Cortex™ A9 processor with one to four corresponding versions. The module delivers high CPU and graphical performance with minimum power consumption.

The WUAB series incorporates DVFS (Dynamic Voltage and Frequency Scaling) and Thermal Throttling which enables the system to adjust operating frequency and voltage continuously. By changing in workload and temperature, it can be adjusted to be the best performance with the lowest power consumption.

The module targets a wide range of applications, including: Digital Signage, Medical Devices, Navigation, Industrial Automation, HMIs, Avionics, Entertainment system, POS, Data Acquisition, Thin Clients, Robotics, Gaming and more.

It offers a wide range of interfaces from simple GPIOs, industry standard I2C, SPI, and UART buses through to high speed USB 2.0 interface and a 16/32bit external memory bus (parallel bus). The RGB and LVDS interface offer users to connect with high resolution displays.

Software:


Linux Embedded System WUABLB120V iMX-6: The WUABLB120V iMX-6 with Linux Yocto Daisy 1.6 images is available.

Winstar supports additional Operating Systems. For further information and technical support, pleasecontact us.

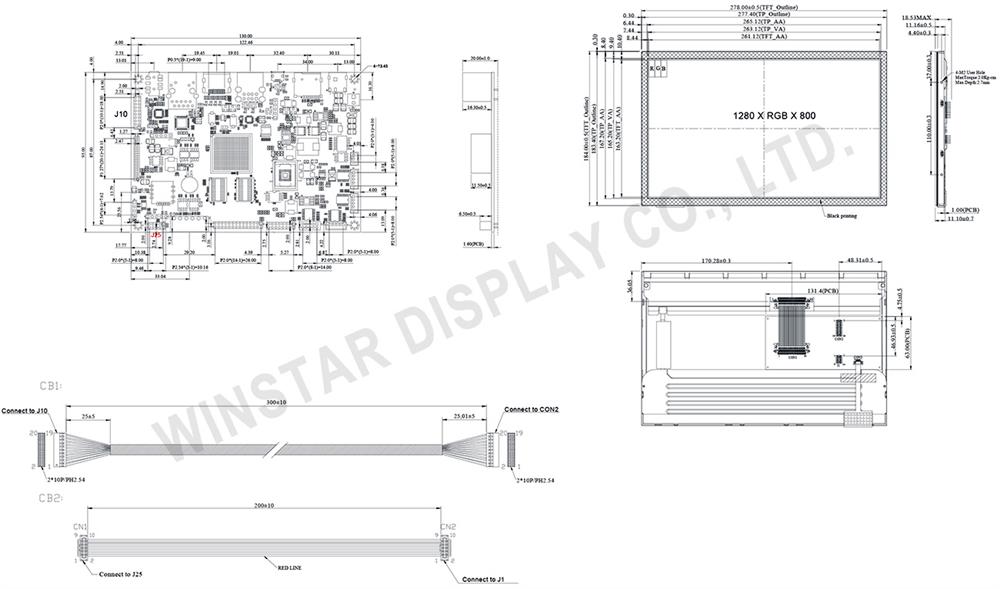

DRAWING


Linux Embedded System: WUABLB120V+ 121B series (PCAP) / LVDS Interface

12.1 PCAP TFT Module (LVDS) with Android Embedded System / Linux Embedded System

SPECIFICATIONS

Linux Single Board Computer

Embedded Motherboard Specification

Main Features



CPU

NXP SoC i.MX6 Series
SoC Family i.MX6 Dual Lite
CPU Cores 2
L1 Instruction Cache (each core) 32KByte
L1 Data Cache (each core) 32KByte
L2 Cache (shared by cores) 512KB
NEON MPE √
Maximum CPU frequency 1GHz
ARM Trust Zone √
Advanced High Assurance Boot √
Secure Real-Time Clock √


Memory

 i.MX6DL
DDR3 RAM Size 1GByte
DDR3 RAM Memory Width 64-bit
eMMC NAND Flash (8bit) 8GB
Expansion Memory Micro SD Socket


Interface

 i.MX6DL 1GB
RGB 24-bits TTL with DE+ H/V sync
LVDS Output 24 bit LVDS (1 channel)
HDMI 1 x HDMI (Type A)
Giga Ethernet Ethernet 10M/100M/1GB
USB 2 x USB 2.0 Host(Dual Type A) ; 1 x USB 2.0 OTG (μUSB type AB)
2 x pin header (5-pin 2.54mm)
Serial port RS232 (JST PHD compatible 2*5 pin/ 1 for console ) ;
RS232 (JST PH compatible *3, 1*5pin)
RS485 ( JST PH compatible *1,1*3pin)
GPIO 32-pin 3.3V TTL Level GPIOs
Resistive TP 4-wire
RTC DS1307 (With Battery)
Audio Wolfson WM8903 (Line out)
IIC 1 (Client, for PCAP use )


HD Video Decode

  • MPEG-2 (Main, High Profile) – 1080p30, 720p60, (50Mbps)
  • MPEG4/XviD (Simple, Advanced Simple Profile) – 1080p30 (40Mbps)
  • H.263 (P0/P3) – 16CIF(1408x1152) 30fps (20Mbps)
  • H.264 (Constrained Baseline, Baseline, Main, High Profile) – 1080p30, 720p60, (50Mbps)
  • H.264-MVC (Baseline, Main, High Profile) – 720p60
  • C1 (Simple, Main, Advanced Profile) – 1080p30 (45Mbps)
  • RV (8/9/10) – 1080p30 (40Mbps)
  • DivX (3/4/5/6) – 1080p30 (40Mbps)
  • On2 VP6/VP8 – 720p30 (20Mbps)
  • AVS Jizhun – 1080p30 (40Mbps)
  • MJPEG (Baseline) – 8192x8192 (120MPixel/s)

HD Video Encode

  • MPEG4 (Simple Profile) – 720p30 (12Mbps)
  • H.263 (P0/P3) – 4CIF(704x576) 30fps (8Mbps)
  • H.264 (Constrained Baseline, Baseline Profile) – 1080p30, (14Mbps)
  • MJPEG (Baseline) – 8192x8192

Supported Operating Systems

  • Linux Yocto Daisy 1.6

Interface Overview

The table shows the interfaces which support the i.MX6 Single board. The Serial interfaces can connect to different kinds of device, such as EEPROM and PCAP controller. We reserve an interface out for without driver version.

If you wish to use alternate function to special device, please contact with Winstar sales dept. for further technical support on driver programming.

Processor System CPU iMX6 DL - Dual core 1.0GHz (Dual core up to 1GHz per core)
Memory Memory Onboard DDR3L 1GB x64 bit
　 Mass storage On-board eMMC drive, up to 8GB
Video LVDS 24 bit LVDS (1024*600、1280*800)
  RGB 24-bits TTL with DE+ H/V sync (800*480)
  HDMI V1.4 (1920*1080)
Graphic Graphic engine Dedicated 2D Hardware accelerator
    Dedicated 3D Hardware accelerator (Supports OpenGL ES2.0 3D)
  H/W Video codec Support MPEG 1/2/4, H.264 Hardware Decoder.
　 Display Support 2 types independent display with iMX6DL and i.MX6D/Q
Network Ethernet 1 GbE + IEEE1588 with RJ45 slot
　 WIFI/BT BLE 4.0 (internal USB for option WIFI Module, Optional Parts)
USB USB 2 Standard USB 2.0 type A ; 1 x USB 2.0 OTG
　 　 2*USB2.0 with pin header
Audio Audio WM8903 Audio codec with 3.5 mm stereo jack
　 　 Mic in, Line out internal pin header
I/O Serial port 4 x RS232 (3 x ePH connector, 1x ePHD for console,) ;
    1 x RS485 (1 x ePH connector)
  IIC 1 (Client, for PCAP use)
　 GPIO 32-pin 3.3V TTL Level GPIOs / 2-pin TTL PWM output
Touch Panel Resistive 4-wire Resistive type (onboard)
　 Capacitive CTP is driven IIC interface
Clock RTC RTC Circuitry for low power consumption with Battery on-board
Expansion SD Socket 1 *μSD Slot (support up to SDXC)
Power Voltage DC9V ~ DC24V±10%
　 Consumption 2.5W
Environment Temperature -20℃ ~ 70℃ (Operating)
　 　 -30℃ ~ 80℃ (Storage)
Operating System   Linux Yocto Daisy 1.6
Dimension 　 130mm * 95mm * 20mm
Certification 　 CE/FCC



Characters of TFT Module

General Specifications

ItemDimensionUnit
Size 12.1 inch
Dot Matrix 1280 × RGB × 800(TFT) dots
Module Dimension 278.0(W) ×184.0(H) × 13.0(D) mm
Active Area 261.12 (H) × 163.2(V) mm
Dot Pitch 0.204(W) × 0.204(H) mm
LCD Type TFT, Normally Black, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel PCAP
Interface LVDS
Surface Glare

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -20 － +80 ℃



>>> For Architecture, Interface Description, Optional Parts and Module Drawing please download the complete Datasheet in the 'Download' section

SKU: WUABLB120V121BTXGX00
Brand: Winstar
Be the first to review this product

DESCRIPTION

Introduction

Hardware :

The WUABLB120V i.MX6 is a computer single board based on the NXP i.MX6 embedded System-on-chip (SoC). The SoC features a scalable multi-core ARM Cortex™ A9 processor with one to four corresponding versions. The module delivers high CPU and graphical performance with minimum power consumption.

The WUAB series incorporates DVFS (Dynamic Voltage and Frequency Scaling) and Thermal Throttling which enables the system to adjust operating frequency and voltage continuously. By changing in workload and temperature, it can be adjusted to be the best performance with the lowest power consumption.

The module targets a wide range of applications, including: Digital Signage, Medical Devices, Navigation, Industrial Automation, HMIs, Avionics, Entertainment system, POS, Data Acquisition, Thin Clients, Robotics, Gaming and more.

It offers a wide range of interfaces from simple GPIOs, industry standard I2C, SPI, and UART buses through to high speed USB 2.0 interface and a 16/32bit external memory bus (parallel bus). The RGB and LVDS interface offer users to connect with high resolution displays.

Software:


Linux Embedded System WUABLB120V iMX-6: The WUABLB120V iMX-6 with Linux Yocto Daisy 1.6 images is available.

Winstar supports additional Operating Systems. For further information and technical support, pleasecontact us.

DRAWING


Linux Embedded System: WUABLB120V+ 121B series (PCAP) / LVDS Interface

12.1 PCAP TFT Module (LVDS) with Android Embedded System / Linux Embedded System

SPECIFICATIONS

Linux Single Board Computer

Embedded Motherboard Specification

Main Features



CPU

NXP SoC i.MX6 Series
SoC Family i.MX6 Dual Lite
CPU Cores 2
L1 Instruction Cache (each core) 32KByte
L1 Data Cache (each core) 32KByte
L2 Cache (shared by cores) 512KB
NEON MPE √
Maximum CPU frequency 1GHz
ARM Trust Zone √
Advanced High Assurance Boot √
Secure Real-Time Clock √


Memory

 i.MX6DL
DDR3 RAM Size 1GByte
DDR3 RAM Memory Width 64-bit
eMMC NAND Flash (8bit) 8GB
Expansion Memory Micro SD Socket


Interface

 i.MX6DL 1GB
RGB 24-bits TTL with DE+ H/V sync
LVDS Output 24 bit LVDS (1 channel)
HDMI 1 x HDMI (Type A)
Giga Ethernet Ethernet 10M/100M/1GB
USB 2 x USB 2.0 Host(Dual Type A) ; 1 x USB 2.0 OTG (μUSB type AB)
2 x pin header (5-pin 2.54mm)
Serial port RS232 (JST PHD compatible 2*5 pin/ 1 for console ) ;
RS232 (JST PH compatible *3, 1*5pin)
RS485 ( JST PH compatible *1,1*3pin)
GPIO 32-pin 3.3V TTL Level GPIOs
Resistive TP 4-wire
RTC DS1307 (With Battery)
Audio Wolfson WM8903 (Line out)
IIC 1 (Client, for PCAP use )


HD Video Decode

  • MPEG-2 (Main, High Profile) – 1080p30, 720p60, (50Mbps)
  • MPEG4/XviD (Simple, Advanced Simple Profile) – 1080p30 (40Mbps)
  • H.263 (P0/P3) – 16CIF(1408x1152) 30fps (20Mbps)
  • H.264 (Constrained Baseline, Baseline, Main, High Profile) – 1080p30, 720p60, (50Mbps)
  • H.264-MVC (Baseline, Main, High Profile) – 720p60
  • C1 (Simple, Main, Advanced Profile) – 1080p30 (45Mbps)
  • RV (8/9/10) – 1080p30 (40Mbps)
  • DivX (3/4/5/6) – 1080p30 (40Mbps)
  • On2 VP6/VP8 – 720p30 (20Mbps)
  • AVS Jizhun – 1080p30 (40Mbps)
  • MJPEG (Baseline) – 8192x8192 (120MPixel/s)

HD Video Encode

  • MPEG4 (Simple Profile) – 720p30 (12Mbps)
  • H.263 (P0/P3) – 4CIF(704x576) 30fps (8Mbps)
  • H.264 (Constrained Baseline, Baseline Profile) – 1080p30, (14Mbps)
  • MJPEG (Baseline) – 8192x8192

Supported Operating Systems

  • Linux Yocto Daisy 1.6

Interface Overview

The table shows the interfaces which support the i.MX6 Single board. The Serial interfaces can connect to different kinds of device, such as EEPROM and PCAP controller. We reserve an interface out for without driver version.

If you wish to use alternate function to special device, please contact with Winstar sales dept. for further technical support on driver programming.

Processor System CPU iMX6 DL - Dual core 1.0GHz (Dual core up to 1GHz per core)
Memory Memory Onboard DDR3L 1GB x64 bit
　 Mass storage On-board eMMC drive, up to 8GB
Video LVDS 24 bit LVDS (1024*600、1280*800)
  RGB 24-bits TTL with DE+ H/V sync (800*480)
  HDMI V1.4 (1920*1080)
Graphic Graphic engine Dedicated 2D Hardware accelerator
    Dedicated 3D Hardware accelerator (Supports OpenGL ES2.0 3D)
  H/W Video codec Support MPEG 1/2/4, H.264 Hardware Decoder.
　 Display Support 2 types independent display with iMX6DL and i.MX6D/Q
Network Ethernet 1 GbE + IEEE1588 with RJ45 slot
　 WIFI/BT BLE 4.0 (internal USB for option WIFI Module, Optional Parts)
USB USB 2 Standard USB 2.0 type A ; 1 x USB 2.0 OTG
　 　 2*USB2.0 with pin header
Audio Audio WM8903 Audio codec with 3.5 mm stereo jack
　 　 Mic in, Line out internal pin header
I/O Serial port 4 x RS232 (3 x ePH connector, 1x ePHD for console,) ;
    1 x RS485 (1 x ePH connector)
  IIC 1 (Client, for PCAP use)
　 GPIO 32-pin 3.3V TTL Level GPIOs / 2-pin TTL PWM output
Touch Panel Resistive 4-wire Resistive type (onboard)
　 Capacitive CTP is driven IIC interface
Clock RTC RTC Circuitry for low power consumption with Battery on-board
Expansion SD Socket 1 *μSD Slot (support up to SDXC)
Power Voltage DC9V ~ DC24V±10%
　 Consumption 2.5W
Environment Temperature -20℃ ~ 70℃ (Operating)
　 　 -30℃ ~ 80℃ (Storage)
Operating System   Linux Yocto Daisy 1.6
Dimension 　 130mm * 95mm * 20mm
Certification 　 CE/FCC



Characters of TFT Module

General Specifications

ItemDimensionUnit
Size 12.1 inch
Dot Matrix 1280 × RGB × 800(TFT) dots
Module Dimension 278.0(W) ×184.0(H) × 13.0(D) mm
Active Area 261.12 (H) × 163.2(V) mm
Dot Pitch 0.204(W) × 0.204(H) mm
LCD Type TFT, Normally Black, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel PCAP
Interface LVDS
Surface Glare

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -20 － +80 ℃



>>> For Architecture, Interface Description, Optional Parts and Module Drawing please download the complete Datasheet in the 'Download' section

Products specifications
Brand Winstar
Size 12.1"
Resolution 1280x800
Active Area (mm) 261.12x163.20
Color Full Color
CPU ARM Base - iMX6 Dual Lite 1.0GHz
Operating System Linux Yocto Daisy 1.6
Power supply 12V
Display Interface USB 2.0 x 2 // RS232 x 4 // RS485 x 1 // CAN Bus x 2 // SPI-I2C-GPIO x 32 // Ethernet x 1
Touch Panel Capacitive
O. Temperature (°C) -20~70
In the Box Embedded motherboard + TFT Panel + LVDS Cable + CTP Cable
Preferred - Not Preferred Preferred
