    Eval Kit for TFT 4.3" 480x272, RS485 ModBus interface & GPIO Support, 400cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)
    Manufacturer: Winstar
    SKU: WWSSDEMO43W-DA-11#000

    Accessory kit

    Availability: In stock
    €126.80 excl tax
    i h

    DESCRIPTION

        Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

    Model WL0F00043000WGDACSA00-FC is a 4.3-inch RS485 Smart Display from WINSTAR, designed as a slave device controlled via RS485 commands using the Modbus protocol. It integrates WINSTAR’s wide temperature IPS TFT WF43-480272WD#APW3-FC and a 4-layer FR4 PCBA with built-in firmware, delivering a reliable and streamlined HMI solution.

    This Smart Display enables rapid project development while minimizing costs and engineering effort. It supports single-master (HOST) platforms such as PCs (via USB-to-RS485 dongle), MCUs, and Raspberry Pi.

    Key Features

    • Wide input voltage range: 5V to 28V (typical 12V)
    • Built-in self-diagnostic function at boot-up
    • RS485 interface with Modbus protocol support
    • 16MB integrated flash memory for fonts and images
    • Supports capacitive touch panel (CTP)
    • Embedded buzzer for audio feedback
    • The HOST can operate on multiple platforms, including PCs (with USB-to-RS485 dongle), MCUs, and Raspberry Pi.
    • 8-channel bi-directional GPIOs with 3.3V TTL logic, configurable via PC GUI Builder tool
    • Design the UI without writing a line of code by WINSTARGUI builder! (►Link to GUI Builder Introduction)
    • Powered by STM32F series MCU; compatible with STMicroelectronics’ software development ecosystem

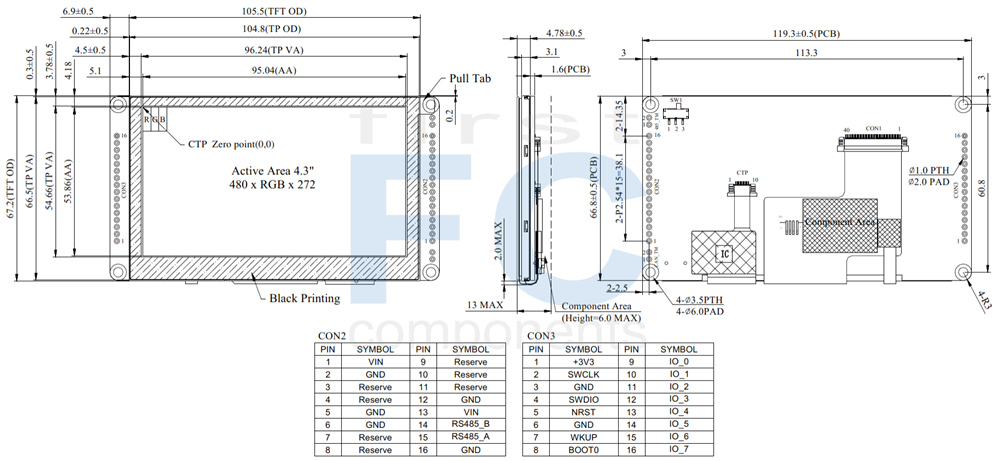

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemStandard ValueUnit
    Operating voltage 5-28 Vdc
    Communication Interface RS485 differential --
    MCU STM32F750 N/A
    Flash Memory 16 MB
    LCD display size 4.3 inch
    Dot Matrix 480 × RGB × 272(TFT) dots
    Module dimension 119.3(W) × 67.2(H) × 13(D) mm
    Active area 95.04(W) × 53.856 (H) mm
    Pixel pitch 0.198(H) × 0.198(V) mm
    Brightness Min: 300; Typ: 400 cd/m2
    Backlight Type TFT, Normally Black, Transmissive
    Viewing Angle 80/80/80/80
    Aspect Ratio 16:9
    Touch Panel Projected Capacitive Touch Panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Supply Voltage VCC 5 12 28 V
    Supply Current ICC - 180   mA
    I/O pin Voltage - - - 3.3 mA



    BOM

    ItemDescription
    LCM WF43-480272WD#APW3-FC
    PCBA SV10004R300WB00N0105



    Interface Pin Function

    CN2 definition

    PinSymbolFunctionRemark
    16 GND Power GND Input
    15 RS485_A Driver output or receiver input (complementary to B) BUS I/O
    14 RS485_B Driver output or receiver input (complementary to B) BUS I/O
    13 VIN Power +5V~+28V Input
    12 GND Power GND Input
    11 Reserved -- --
    10 Reserved -- --
    9 Reserved -- --
    8 Reserved -- --
    7 Reserved -- --
    6 GND Power GND Input
    5 GND Power GND Input
    4 Reserved -- --
    3 Reserved -- --
    2 GND Power GND Input
    1 VIN Power +5V~+28V Input


    CN3 definition

    PinSymbolFunctionRemark
    16 IO_7 GPIO (PC5) I/O
    15 IO_6 GPIO (PC4) I/O
    14 IO_5 GPIO (PC1) I/O
    13 IO_4 GPIO (PF9) I/O
    12 IO_3 GPIO (PB5) I/O
    11 IO_2 GPIO (PB4) I/O
    10 IO_1 GPIO (PD5) I/O
    9 IO_0 GPIO (PD4) I/O
    8 BOOT0 -- --
    7 WKUP Wake UP (PA0) Input
    6 GND GND for SWD interface Output
    5 NRST Reset pin for SWD interface Input
    4 SWDIO Data pin for SWD interface I/O
    3 GND GND for SWD interface Output
    2 SWCLK CLK pin for SWD interface Input
    1 +3V3 3.3V power for SWD interface Output



    Display Usage

    Functional description

    Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode

    The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.


    Splash Screen

    The default splash image is shown below.

    This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss

    Default Selection

    Press the preferred application and hold for 3 seconds for the first time power on.

    Winstar's Smart Display Default Selection

    Acquisition of Displayed Data

    Smart Display uses the Modbus protocol to get and send the data.

    On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

    Configuring the Display

    Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

    The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

    Example Screen Layout (Industry application)

    Example Layout

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.



    Example Layout (Vehicle automotive)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.



    Example Layout (Medical application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.




    Products specifications
    Brand Winstar
    Size 4.3"
    Resolution 480x272
    Active Area (mm) 95.04x53.85
    Color Full Color
    Power supply 5V
    Display Interface RS485 + GPIO
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
