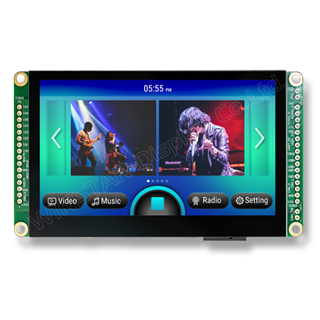

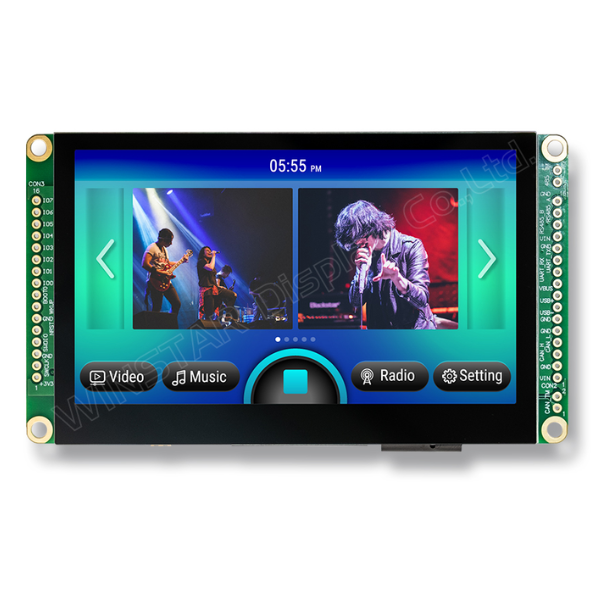

General Specifications
| Item | Standard Value | Unit |
|---|
| Operating voltage |
5-28 |
Vdc |
| Communication Interface |
RS485 differential |
-- |
| MCU |
STM32F750 |
N/A |
| Flash Memory |
16 |
MB |
| LCD display size |
4.3 |
inch |
| Dot Matrix |
480 × RGB × 272(TFT) |
dots |

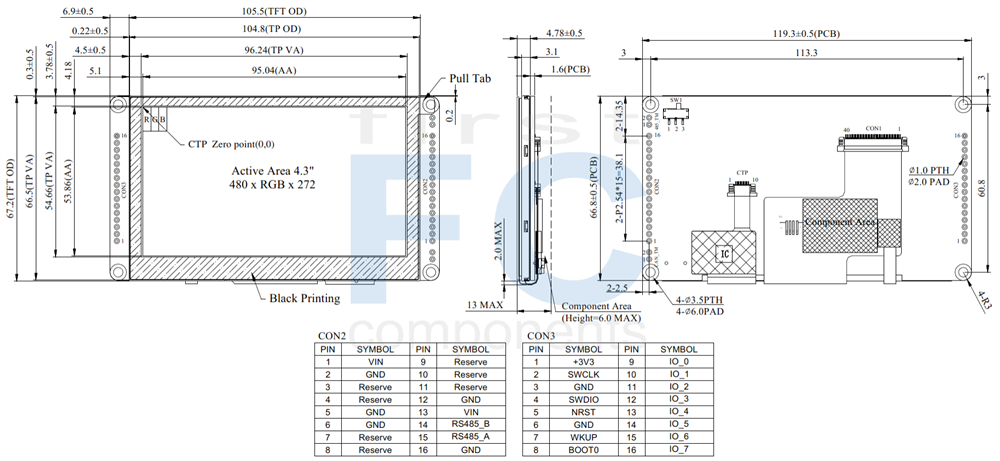

| Module dimension |
119.3(W) × 67.2(H) × 13(D) |
mm |
| Active area |
95.04(W) × 53.856 (H) |
mm |
| Pixel pitch |
0.198(H) × 0.198(V) |
mm |
| Brightness |
Min: 300; Typ: 400 |
cd/m2 |
| Backlight Type |
TFT, Normally Black, Transmissive |
| Viewing Angle |
80/80/80/80 |
| Aspect Ratio |
16:9 |
| Touch Panel |
Projected Capacitive Touch Panel (PCAP) |
| Surface |
Glare |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|
| Operating Temperature |
TOP |
-30 |
－ |
+80 |
℃ |
| Storage Temperature |
TST |
-30 |
－ |
+80 |
℃ |
Electrical Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
|---|
| Supply Voltage |
VCC |
5 |
12 |
28 |
V |
| Supply Current |
ICC |
- |
180 |
|
mA |
| I/O pin Voltage |
- |
- |
- |
3.3 |
mA |
BOM
| Item | Description |
|---|
| LCM |
WF43-480272WD#APW3-FC |
| PCBA |
SV10004R300WB00N0105 |
Interface Pin Function
CN2 definition
| Pin | Symbol | Function | Remark |
|---|
| 16 |
GND |
Power GND |
Input |
| 15 |
RS485_A |
Driver output or receiver input (complementary to B) |
BUS I/O |
| 14 |
RS485_B |
Driver output or receiver input (complementary to B) |
BUS I/O |
| 13 |
VIN |
Power +5V~+28V |
Input |
| 12 |
GND |
Power GND |
Input |
| 11 |
Reserved |
-- |
-- |
| 10 |
Reserved |
-- |
-- |
| 9 |
Reserved |
-- |
-- |
| 8 |
Reserved |
-- |
-- |
| 7 |
Reserved |
-- |
-- |
| 6 |
GND |
Power GND |
Input |
| 5 |
GND |
Power GND |
Input |
| 4 |
Reserved |
-- |
-- |
| 3 |
Reserved |
-- |
-- |
| 2 |
GND |
Power GND |
Input |
| 1 |
VIN |
Power +5V~+28V |
Input |
CN3 definition
| Pin | Symbol | Function | Remark |
|---|
| 16 |
IO_7 |
GPIO (PC5) |
I/O |
| 15 |
IO_6 |
GPIO (PC4) |
I/O |
| 14 |
IO_5 |
GPIO (PC1) |
I/O |
| 13 |
IO_4 |
GPIO (PF9) |
I/O |
| 12 |
IO_3 |
GPIO (PB5) |
I/O |
| 11 |
IO_2 |
GPIO (PB4) |
I/O |
| 10 |
IO_1 |
GPIO (PD5) |
I/O |
| 9 |
IO_0 |
GPIO (PD4) |
I/O |
| 8 |
BOOT0 |
-- |
-- |
| 7 |
WKUP |
Wake UP (PA0) |
Input |
| 6 |
GND |
GND for SWD interface |
Output |
| 5 |
NRST |
Reset pin for SWD interface |
Input |
| 4 |
SWDIO |
Data pin for SWD interface |
I/O |
| 3 |
GND |
GND for SWD interface |
Output |
| 2 |
SWCLK |
CLK pin for SWD interface |
Input |
| 1 |
+3V3 |
3.3V power for SWD interface |
Output |
Display Usage
Functional description
Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode
The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.
Splash Screen
The default splash image is shown below.
This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss
Default Selection
Press the preferred application and hold for 3 seconds for the first time power on.
Acquisition of Displayed Data
Smart Display uses the Modbus protocol to get and send the data.
On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.
Configuring the Display
Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.
The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.
The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.
The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.
Example Screen Layout (Industry application)
Example Layout
The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.
Example Layout (Vehicle automotive)
The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.
Example Layout (Medical application)
The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.
