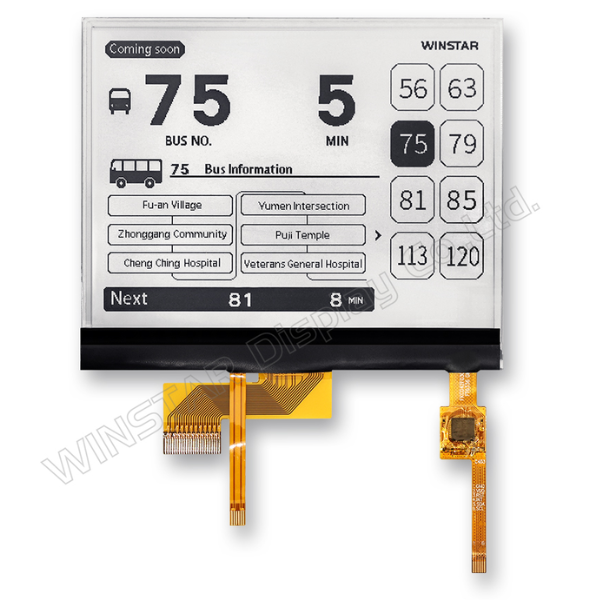

The WAA0420BB5#A2N4AA-FC is a 4.2-inch Electronic Paper Display (EPD) module featuring a front light panel and capacitive touch functionality. This display supports 1-bit black-and-white image rendering with a resolution of 400×300 pixels. It is built on a TFT backplane that drives the electrophoretic layer, and integrates a variety of functional circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC converter, SRAM, LUT, and VCOM generator.
This module is designed for ultra-low power consumption and high-visibility environments, making it ideal for a range of paperless applications in both commercial and industrial settings.
Key Features
- 400×300 pixel resolution
- High contrast and reflectance
- Ultra-wide viewing angle
- Extremely low power consumption
- Pure reflective display technology
- Bi-stable image retention
- Operable in commercial temperature range
- Supports both portrait and landscape orientations
- Hard-coated, anti-glare display surface
- Integrated display RAM
- Waveform storage in on-chip OTP or programmable via MCU
- Serial Peripheral Interface (SPI) available
- On-chip oscillator
- Integrated booster and regulator for VCOM, Gate, and Source voltages
- I²C master interface for external temperature sensor reading
- Partial screen update supported
- Built-in temperature sensor
Applications
The 4.2-inch Electronic Paper Display is not only suitable for Electronic Shelf Label (ESL) systems, but also well-suited for a broad range of low-power, high-clarity display solutions including:
- Industrial equipment labels – real-time machine status or maintenance info
- Smart meeting room nameplates – dynamic display of meeting schedules and names
- Warehouse & logistics tags – barcode and inventory information updates
- Medical & healthcare labels – bedside patient information or device displays
- Retail POP signage – promotional messages, pricing, or QR codes
- Smart home control panels – status indicators for lighting, HVAC, or security
- Library and museum digital labels – exhibit details or shelf identification

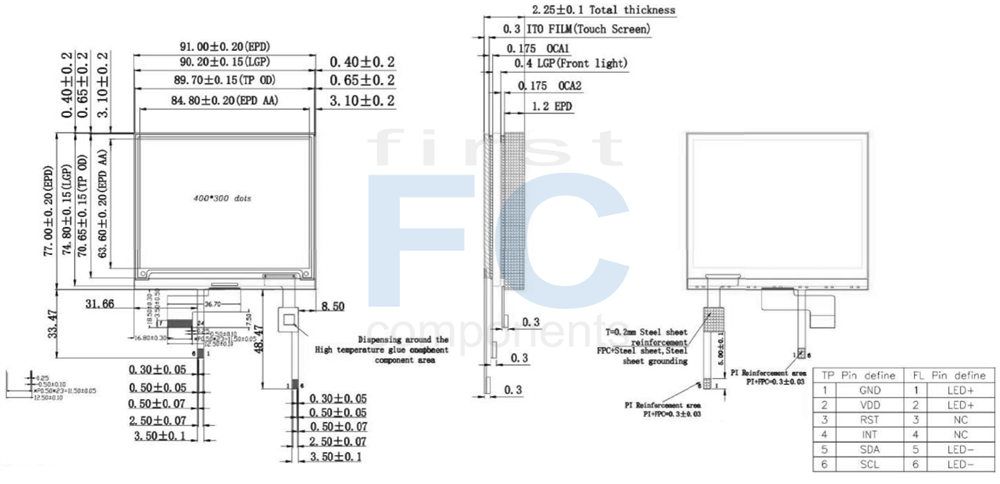

SPECIFICATIONS
General Specifications
| Parameter | Specifications | Unit |
| Screen Size |
4.2 |
Inch |
| Display Resolution |
400(H)×300(V) |
Pixel |
| Active Area |
84.8(H)×63.6(V) |
mm |
| Pixel Pitch |
0.212×0.212 |
mm |
| Pixel Configuration |
Rectangle |
|
| Outline Dimension |
91(H) × 77 (V) × 2.02(D) |
mm |
| Module Weight |
16.1±0.3 |
g |
Electrical Characteristics
Absolute Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Logic supply voltage |
VCI |
-0.5 to +6.0 |
V |
| Logic Input voltage |
VIN |
-0.5 to VCI +0.5 |
V |
| Logic Output voltage |
VOUT |
-0.5 to VCI +0.5 |
V |
| Operating Temp range |
TOPR |
0 to +50 |
ºC |
| Storage Temp range |
TSTG |
-25 to+70 |
ºC |
| Optimal Storage Temp |
TSTGo |
23±2 |
ºC |
| Optimal Storage Humidity |
HSTGo |
55±10 |
%RH |
Input /Output Pin Assignment
| No. | Name | I/O | Description |
| 1 |
NC |
|
Do not connect with other NC pins |
| 2 |
GDR |
O |
N-Channel MOSFET Gate Drive Control |
| 3 |
RESE |
I |
Current sense input for control loop. |
| 4 |
NC |
NC |
Do not connect with other NC pins |
| 5 |
VSH2 |
C |
Positive source driving voltage (Red) |
| 6 |
TSCL |
O |
I2C interface to digital temperature sensor Clock pin |
| 7 |
TSDA |
I/O |
I2C interface to digital temperature sensor Data pin |
| 8 |
BS1 |
I |
Bus Inteface selection pin |
| 9 |
BUSY |
O |
Busy state output pin |
| 10 |
RES# |
I |
Reset signal input. Active Low |
| 11 |
D/C# |
I |
Data / Command control pin |
| 12 |
CS# |
I |
Chip select input pin |
| 13 |
SCL |
I |
Serial Clock pin (SPI) |
| 14 |
SDA |
I/O |
Serial Data pin (SPI) |
| 15 |
VDDIO |
P |
Power Suupply for interface logic pins. It should be connected with VCI |
| 16 |
VCI |
P |
Power Supply for the chip |
| 17 |
VSS |
P |
Ground |
| 18 |
VDD |
C |
Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS |
| 19 |
VPP |
P |
FOR TEST |
| 20 |
VSH1 |
C |
Positive Source driving voltage |
| 21 |
VGH |
C |
Power Supply pin for Positive Gate driving voltage and VSH1 |
| 22 |
VSL |
C |
Negative Source driving voltage |
| 23 |
VGL |
C |
Power Supply pin for Negative Gate driving voltage VCOM and VSL |
| 24 |
VCOM |
C |
VCOM driving voltage |
Note: I: Input, O: Output, P: Power, D: Dummy, S: Shorted line, M: Mark, PI: Power input, PO: Power output, I/O: Input / Output, PS: Power Setting, C: Capacitor pin.
