WF101-1024600JL#0SP8-FC

TFT 10.1'' 1024x600, LCD Module, Interface LVDS, High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel USB/I2C interface (GG)

MOQ

After sample PO max 5pcs, MP MOQ 500pcs



DESCRIPTION



Landscape mode 10.1 inch high brightness IPS TFT LCD module, it featured with resolution 1024x600 pixels. It is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 900 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). Capacitive touch panel with USB/I2C interface.

The supply voltage (VDD) is from 3.0V to 3.6V, typical value 3.3V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. Standard brightness version available.

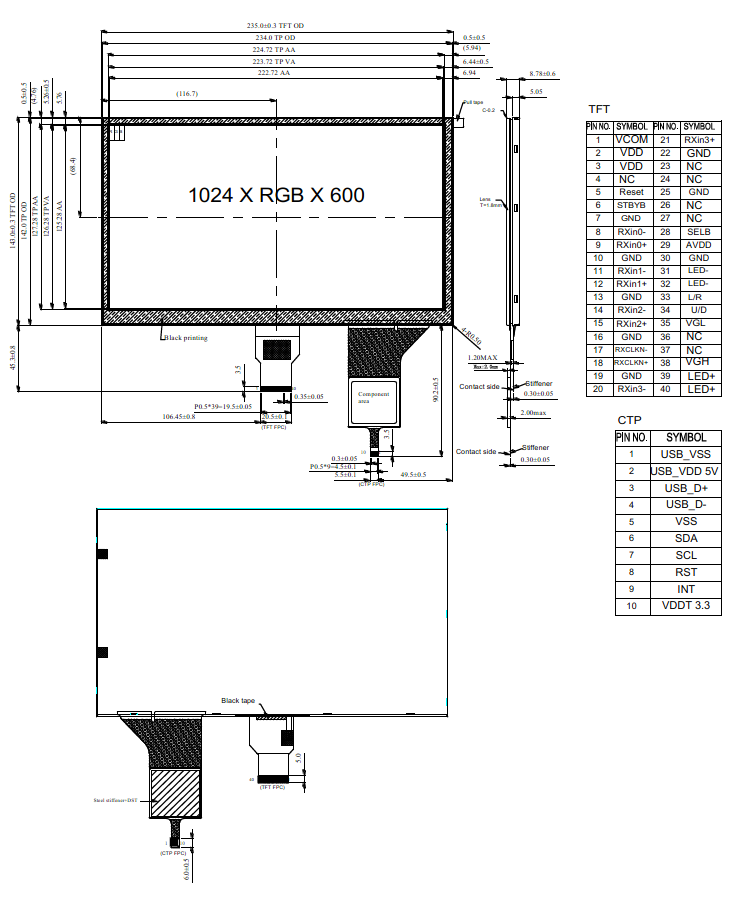

DRAWING

SKU: WF101-1024600JL#0SP8-FC
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€101,30
€99,60
€93,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€101,30 IVA esclusa

MOQ

After sample PO max 5pcs, MP MOQ 500pcs



DESCRIPTION



Landscape mode 10.1 inch high brightness IPS TFT LCD module, it featured with resolution 1024x600 pixels. It is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 900 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). Capacitive touch panel with USB/I2C interface.

The supply voltage (VDD) is from 3.0V to 3.6V, typical value 3.3V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. Standard brightness version available.



DRAWING

Specifiche di prodotto
Brand Winstar
Size 10.1"
Risoluzione 1024x600
Area Attiva (mm) 222.72x125.28
Colore Full Color
Interfaccia Display LVDS
IC Controller Display No
Angolo Visione IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel ILI2511
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 10.1"
Risoluzione 1024x600
Area Attiva (mm) 222.72x125.28
Colore Full Color
Interfaccia Display LVDS
IC Controller Display No
Angolo Visione IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel ILI2511
Preferred - Not Preferred Not Preferred
